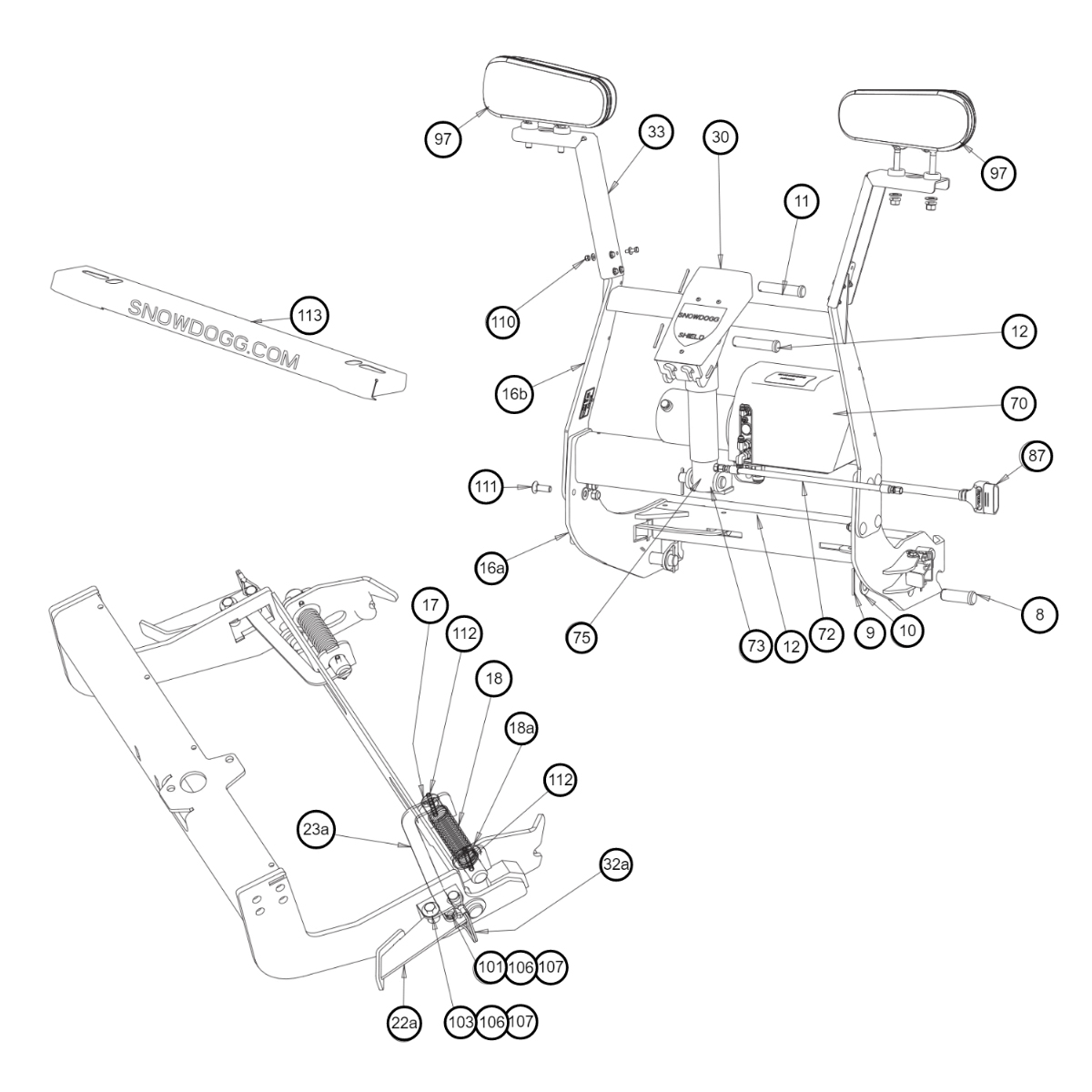

Buyers SnowDogg CM100 Diagrams

The corrosion resistant 304 stainless steel moldboard stands 31 Inches high and never needs paint. A robust frame spreads impact across the blade to reduce wear on vital components.

  • Eight 1/4-Inch laser-cut vertical steel ribs
  • Two reinforcing diagonal ribs
  • Full length 2-Inch cross tube
  • 5/8-Inch cutting edge

SnowDogg Illuminator LED Headlights are brighter and longer lasting than traditional halogens. Active Defrosting Technology™ keeps the Illuminators ice-free even in the biting cold - a central heat source defrosts the entire lens evenly, preventing the streaking or banding that's common with other LED plow lights.

SnowDogg HX High Intensity Halogens are also available.

Get your plow on and off your truck in minutes with the dual foot pedal mounting system. An adjustable and removable jack stand makes it easy to line up your plow and truck regardless of terrain and vehicle mounting height. Just engage the pedals, attach the safety pins, and connect the electrical. Done.

Six stress-optimized trip springs protect your equipment from hidden curbs and obstacles.

From the heavy duty lift cylinder and massive sector to the fully enclosed hydraulic power unit, the SnowDogg CM is built to endure whatever winter throws at you.

  • Powerful 2-Inch lift cylinders
  • Over-sized 2-Inch angle cylinders
  • Massive 4-Inch quadrant
  • Fully enclosed 2 HP hydraulic power unit
  • SAE standard cartridge valves and hefty 3/8-Inch rubber hoses

Intuitive in-cab controls are simple to use even with gloves on. The one-handed controller puts all plows functions in the palm of your hand. Other standard accessories:

  • Heavy duty belted rubber snow deflector
  • Cast shoes
  • Wire-reinforced blade guides


Plow Type Straight Blade
Trip Style Full Trip
Moldboard Material 304 Stainless Steel
Moldboard Thickness 12 Ga
Blade Width 120 Inches
Angled Blade Width 104 Inches
Blade Height 31 Inches
Ribs 10 / 2 Diagonal
Cutting Edge 5/8 x 6 Inches
Plow Shoes Standard
Snow Deflector 3/8 Belted Rubber
Lights Dual Halogen Bulbs
Electrical Headlamp Rated Replaceable Micro-ISO Relays
Harnesses Separate Light and Hydraulic 4GA Power Wires
Trip Springs 6
Angle Cylinders 2 x 12 Inches
Lift Cylinder 2 x 6 Inches
Mounting System Dual Foot Pedal Quick Mount
Stand Detachable Jack
