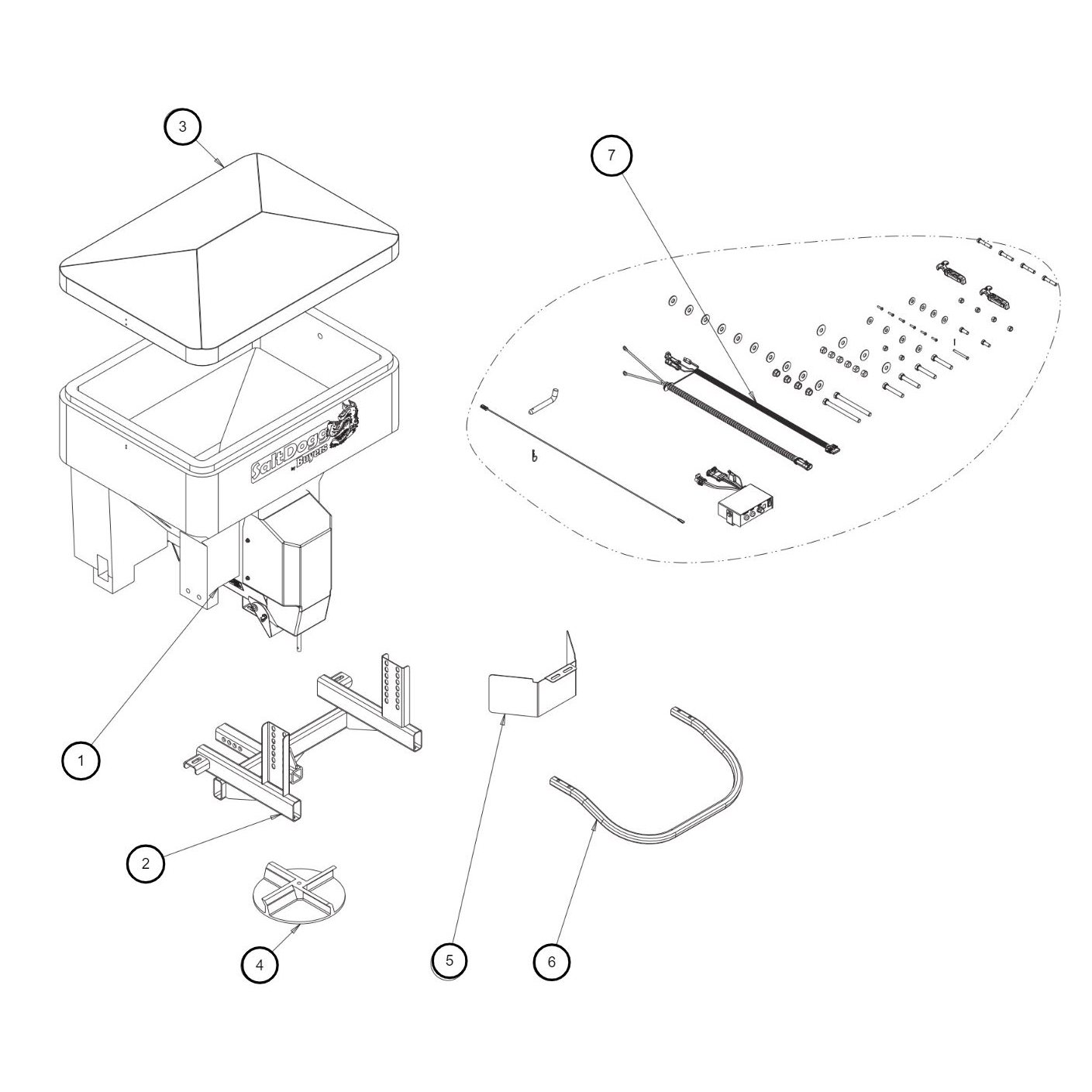

SaltDogg TGS03 Diagrams

• Easily mounts to a 1/2 ton 3/4 ton 1 ton truck.
• Durable, corrosion-proof hopper has an 8 cubic foot capacity.
• 12V DC-powered electric drive for quiet low maintenance operation.
• Uses bulk salt or 50/50 salt/sand mix (with optional vibrator).
• Easy to use variable speed in-cab controls.
• 12 in. poly spinner can broadcast up to 30 feet.
• Horizontal auger reduces material waste and provides better spread control.
• Simple 2 in. hitch-mount design.
• Carbon steel frame is powder-coated for optimum corrosion protection.
• Made in the USA.

The SaltDogg TGS03 8 Cubic Foot Tailgate Spreader is ideal for commercial applications using bulk salt (or a 50/50 salt/sand mix with the optional vibrator). It features a horizontal auger with a stainless steel trough and is compatible with 1/2 ton 3/4 ton and 1 ton trucks.

The spreader has a low-profile 8 cubic foot poly hopper available in black red and yellow. The hopper's frameless double-wall construction is durable and highly corrosion resistant. The spreader mounts to a 2-Inch Class 4 hitch with patented horizontal and vertical adjustment.

Its 12-Inch poly spinner can cast material from 3 to 30 feet. A 1/2 HP, 12V dual shaft gear motor is controlled by an included variable speed in-cab controller.

Note: The TGS03 Spreader Extender (3038518-BUY) is required for installation on trucks with flared tailgates.

Product Common Use: Driveways / Parking Lots / Commercial Properties / Residential Areas
