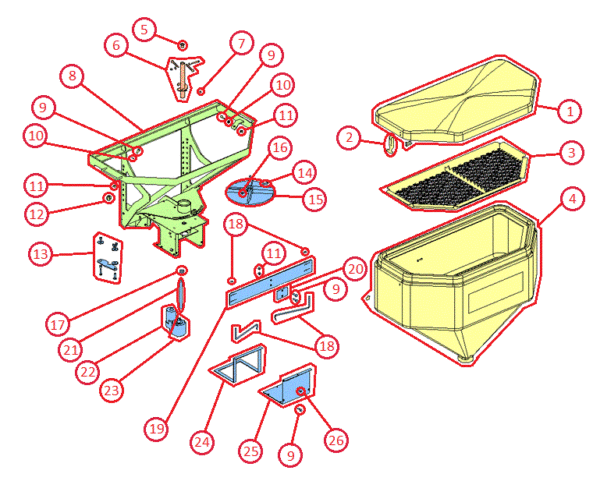

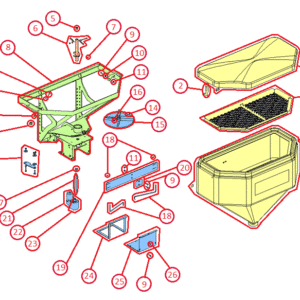

BOSS TGS1100 Main Assembly Diagram

BOSS TGS1100 Main Assembly Diagram

SKU: TGS1100-MA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1BOSS TGS05943 - 11 Cu Ft TGS Hopper Cover With LatchBOSS TGS05943 - 11 Cu Ft TGS Hopper Cover With LatchTGS05943-BOSS$119.72
2BOSS TGS05833 - Draw Latch Kit Flexible TgsBOSS TGS05833 - Draw Latch Kit Flexible TgsTGS05833-BOSS$31.16
4BOSS TGS05944 - 11 Cu Ft TGS Hopper With LatchBOSS TGS05944 - 11 Cu Ft TGS Hopper With LatchTGS05944-BOSS$362.81
5BOSS TGS05835 - Plug Plastic Auger Tube 2003 TgsBOSS TGS05835 - Plug Plastic Auger Tube 2003 TgsTGS05835-BOSS$0.93
6BOSS TGS05882 - TGS Auger With Cable Assembly and Set ScrewBOSS TGS05882 - TGS Auger With Cable Assembly and Set ScrewTGS05882-BOSS$115.88
8BOSS TGS17670-03 - 11 Cubic Foot TGS Frame Assembly (2020+)BOSS TGS17670-03 - 11 Cubic Foot TGS Frame Assembly (2020+)TGS17670-03-BOSS$697.45
9BOSS SnowplowBOSS HDW05853 - SST 18-8 Hex Head Cap Screw (3/8" - 16 x 1")HDW05853-BOSS$1.23
10BOSS SnowplowBOSS HDW05859 - Flat Washer 3/8ST/ST 18-8HDW05859-BOSS$0.93
11BOSS HDW05854 - Nut 3/8-16 NYL INS ST/ST 18-8BOSS HDW05854 - Nut 3/8-16 NYL INS ST/ST 18-8HDW05854-BOSS$1.10
12BOSS TGS05765 - TGS 1 Inch Diameter 2 Wire Split GrommetBOSS TGS05765 - TGS 1 Inch Diameter 2 Wire Split GrommetTGS05765-BOSS$4.64
13BOSS TGS10984 - TGS Feed Gate Kit (2006+)BOSS TGS10984 - TGS Feed Gate Kit (2006+)TGS10984-BOSS$39.27
14BOSS SnowplowBOSS HDW05857 - SST 4-10 Hex Head Cap Screw (1/4" - 20 x 2")HDW05857-BOSS$1.34
16BOSS SnowplowBOSS HDW05851 - 1/4-20 18-8 Stainless Steel Nylon Lock NutHDW05851-BOSS$0.93
17BOSS TGS05809 - Shaft Seal .75 Inch ID x 1.125 Inch OD x .313 Inch DBLBOSS TGS05809 - Shaft Seal .75 Inch ID x 1.125 Inch OD x .313 Inch DBLTGS05809-BOSS$9.96
18BOSS TGS05958 - Kit-Deflector Brkt W/Hdw(One)TgsBOSS TGS05958 - Kit-Deflector Brkt W/Hdw(One)TgsTGS05958-BOSS$16.79
19BOSS SnowplowBOSS TGS05812 - TGS Adjustable DeflectorTGS05812-BOSS$27.08
21BOSS SnowplowBOSS TGS05892 - Rotary Actuator Shaft For TGS (3/4 Diameter)TGS05892-BOSS$33.38
22BOSS TGS05889 - TGS Rotary Actuator MotorBOSS TGS05889 - TGS Rotary Actuator MotorTGS05889-BOSS$282.78
23BOSS TGS05898 - Actuator Rotary Hs Motor 10:1 04+ TgsBOSS TGS05898 - Actuator Rotary Hs Motor 10:1 04+ TgsTGS05898-BOSS$643.61
26BOSS HDW05875 - SST 18-8 Hex Head Cap Screw (1/4"-20 x 3/4")BOSS HDW05875 - SST 18-8 Hex Head Cap Screw (1/4"-20 x 3/4")HDW05875-BOSS$0.93

BOSS TGS1100 Main Assembly Diagram

Part Diagrams are for illustration purposes only, and may not directly represent the quantity of each designated parts’ SKU, unless it is specifically stated in the part name that the SKU is a Kit, Pack, or Box.
