| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | BOSS VBS15175 - Hopper Tarp With Bungees For VBX6500 | VBS15175-BOSS | $333.34 | ||
| 1 |  | BOSS VBS14399 - Hopper Tarp With Bungees For VBX8000 | VBS14399-BOSS | $365.08 | ||
| 1 |  | BOSS VBS15313 - Hopper Tarp With Bungees For VBX9000 | VBS15313-BOSS | $396.82 | ||
| 1 |  | BOSS VBS15325 - VBX Tarp Bungee Tie-Down Kit | VBS15325-BOSS | $52.07 | ||
| 2 |  | BOSS VBS17365-03 - VBX6500 Top Screen Half | VBS17365-03-BOSS | $402.79 | ||
| 2 |  | BOSS VBS26280-03 - VBX8000 Top Screen Half | VBS26280-03-BOSS | $381.92 | ||
| 2 |  | BOSS VBS26290-03 - VBX9000 Top Screen Half | VBS26290-03-BOSS | $419.06 | ||
| 3 |  | BOSS VBS15149 - Replacement Poly Hopper For VBX6500 | VBS15149-BOSS | $1,456.74 | ||
| 3 |  | BOSS VBS20800 - Replacement Poly Hopper For VBX8000 | VBS20800-BOSS | $1,749.20 | ||
| 3 |  | BOSS VBS20900 - Replacement Poly Hopper For VBX9000 | VBS20900-BOSS | $2,457.09 | ||
| 4 |  | BOSS VBS14517 - VBX Leg Bolt Plate | VBS14517-BOSS | $3.00 | ||
| 5 |  | BOSS VBS14038 - VBX Strap Lift Bar | VBS14038-BOSS | $42.13 | ||
| 6 |  | BOSS MSC19344 - Grommet (3/8'' ID X 1-1/16'' OD) | MSC19344-BOSS | $6.36 | ||
| 7 |  | BOSS VBS14548 - VBX Rear Light | VBS14548-BOSS | $75.09 | ||
| 8 |  | BOSS VBS14571 - VBX Auger Front Cover | VBS14571-BOSS | $258.74 | ||
| 8 |  | BOSS VBS14011 - VBX Pintle Front Cover | VBS14011-BOSS | $258.74 | ||
| 11 |  | BOSS MSC14544 - Groove Grommet (9/16 ID x 0.75 OD x 1/8) | MSC14544-BOSS | $3.31 | ||
| 12 |  | BOSS MSC12249 - UTV 55W Halogen Headlight | MSC12249-BOSS | $85.15 | ||
| 13 |  | BOSS MSC14559 - Groove Grommet (1-1/4'' ID x 1-1/2'' OD x 3/16") | MSC14559-BOSS | $4.59 | ||
| 14 |  | BOSS HDW09299 - 8mm x 26mm Stem Push Clip (20mm Flange) | HDW09299-BOSS | $2.12 | ||
| 15 |  | BOSS VBS14450 - Stainless Steel VBX Chute | VBS14450-BOSS | $140.13 | ||
| 16 |  | BOSS VBS17720 - Adjustable Spinner Mount Assembly | VBS17720-BOSS | $382.46 | ||
| 17 |  | BOSS HDW14032 - 3/8 - 7/16 Inch Stainless Steel Cotter Hairpin | HDW14032-BOSS | $2.08 | ||
| 18 |  | BOSS VBS14180 - Tapered Pin | VBS14180-BOSS | $18.49 | ||
| 19 |  | BOSS HDW14016 - Threaded Knob (5/16-18) | HDW14016-BOSS | $9.55 | ||
| 20 |  | BOSS VBS27008 - VBX Upper Spinner Housing | VBS27008-BOSS | $344.78 | ||
| 21 |  | BOSS MSC03761 - Split Rubber Grommet For Control Harness | MSC03761-BOSS | $3.02 | ||
| 22 |  | BOSS TGS05898 - TGS High Speed Spinner Motor | TGS05898-BOSS | $758.67 | ||
| 23 |  | BOSS TGS05809 - Shaft Seal (3/4'' ID x 1-1/8'' OD x 5/16'') | TGS05809-BOSS | $11.74 | ||
| 24 |  | BOSS TGS15532 - 2-Bolt Flange Bearing (3/4'' ID) | TGS15532-BOSS | $38.42 | ||
| 25 |  | BOSS VBS14010 - VBX Spinner Motor Mount Plate | VBS14010-BOSS | $97.86 | ||
| 26 |  | BOSS VBS14008 - VBX 3/4'' Spinner Motor Shaft | VBS14008-BOSS | $35.75 | ||
| 27 |  | BOSS VBS14017 - VBX 14-1/2'' Urethane Spinner | VBS14017-BOSS | $102.96 | ||
| 28 |  | BOSS VBS14007 - VBX Poly Spinner Housing Bottom | VBS14007-BOSS | $145.38 | ||
| 29 |  | BOSS VBS14037 - VBX Spinner Assembly Support Rod | VBS14037-BOSS | $15.91 | ||
| 30 |  | BOSS VBS14039 - VBX Adjustable Deflector | VBS14039-BOSS | $36.69 | ||
| 31 |  | BOSS MSC17203 - VBX Spinner Deflector Bracket | MSC17203-BOSS | $13.47 | ||
| 32 |  | BOSS HDW14430 - Grade 18-8 Stainless Steel Cotter Pin (5/64'' x 3/4'') | HDW14430-BOSS | $1.09 | ||
| 40 |  | BOSS VBS17740 - Auger Drive Train Weldment For VBX6500 | VBS17740-BOSS | $1,561.71 | ||
| 40 |  | BOSS VBS17750 - Auger Drive Train Weldment For VBX8/9000 | VBS17750-BOSS | $2,030.18 | ||
| 41 |  | BOSS VBS14221 - VBX Auger Rear Cover | VBS14221-BOSS | $39.62 | ||
| 42 |  | BOSS VBS14405 - 4-Bolt UCF207-20 Steel Bearing | VBS14405-BOSS | $41.04 | ||
| 43 |  | BOSS VBS14225 - VBX Auger Shaft | VBS14225-BOSS | $17.73 | ||
| 44 |  | BOSS VBS14215 - VBX Bearing Plate Assembly | VBS14215-BOSS | $31.50 | ||
| 45 |  | BOSS VBS15120-03 - Auger For VBX6500 | VBS15120-03-BOSS | $486.26 | ||
| 45 |  | BOSS VBS14260-03 - Auger For VBX8000 And VBX9000 | VBS14260-03-BOSS | $650.18 | ||
| 46 |  | BOSS VBS14025 - VBX Spinner Pin Lock Assembly | VBS14025-BOSS | $49.17 | ||
| 47 |  | BOSS VBS18350 - VBX Adjustable Slide Stop Mount | VBS18350-BOSS | $116.20 | ||
| 48 |  | BOSS VBS15157 - VBX Auger Main Cover Plate | VBS15157-BOSS | $71.03 | ||
| 49 |  | BOSS VBS14585 - VBX 30MM Coupling Assembly | VBS14585-BOSS | $23.02 | ||
| 50 |  | BOSS VBS14470 - VBX Auger Gearbox PGW162 91.6:1 With Planetary | VBS14470-BOSS | $1,134.73 | ||
| 51 |  | BOSS VBS14472 - VBX 1650 RPM 1/2 HP Stainless Steel Motor | VBS14472-BOSS | $1,319.88 | ||
| 52 |  | BOSS VBS15156 - VBX Auger Front Cover Plate | VBS15156-BOSS | $48.08 | ||
| 60 |  | BOSS VBS17090 - Pintle Drive Chain Weldment For VBX8/9000 | VBS17090-BOSS | $1,526.54 | ||
| 61 |  | BOSS VBS14223 - VBX Pintle Rear T-Slot Cover | VBS14223-BOSS | $42.84 | ||
| 63 |  | BOSS VBS14407 - Pintle VBX Rear Idler Shaft | VBS14407-BOSS | $113.30 | ||
| 65 |  | BOSS VBS14406 - Steel Take-Up Bearing UCST206-20 | VBS14406-BOSS | $63.47 | ||
| 66 |  | BOSS VBS14518 - VBX Pintle Chain Takeup Bearing Cover | VBS14518-BOSS | $29.34 | ||
| 67 |  | BOSS VBS15190 - Pintle Chain For VBX6500 And Forge 1.0 | VBS15190-BOSS | $414.18 | ||
| 67 |  | BOSS VBS14639 - Pintle Chain VBX8/9000 And Forge 1.5/20XL | VBS14639-BOSS | $491.88 | ||
| 69 |  | BOSS VBS14408 - Pintle VBX Front Drive Shaft | VBS14408-BOSS | $102.96 | ||
| 70 |  | BOSS VBS14537 - VBX Sweeper Mounting Bar | VBS14537-BOSS | $6.50 | ||
| 71 |  | BOSS VBS14523 - VBX Pintle Sweeper | VBS14523-BOSS | $22.29 | ||
| 72 |  | BOSS VBS17372 - Pintle Feed Plate Extension | VBS17372-BOSS | $32.19 | ||
| 73 |  | BOSS VBS14538 - VBX 1-1/4'' Coupling | VBS14538-BOSS | $18.73 | ||
| 74 |  | BOSS VBS14471 - VBX Pintle Gearbox PGW162 137.4:1 With Planetary | VBS14471-BOSS | $1,480.87 | ||
| 76 |  | BOSS VBS14522 - VBX Pintle Drop Pan Handle Assembly | VBS14522-BOSS | $27.61 | ||
| 77 |  | BOSS VBS14610 - VBX Pintle Pin Lock Assembly | VBS14610-BOSS | $105.46 | ||
| 160 |  | BOSS HDW05853 - Grade 18-8 SST Hex Head Cap Screw (3/8-16 x 1'') | HDW05853-BOSS | $1.44 | ||
| 152 |  | BOSS HDW05854 - Grade 18-8 SST Nylock Nut (3/8-16) | HDW05854-BOSS | $1.30 | ||
| 105 |  | BOSS MSC14350 - 12VDC 125-Lb Vibrator | MSC14350-BOSS | $188.90 | ||
| 106 |  | BOSS HDW17398 - Hardware Kit For VBS17399 | HDW17398-BOSS | $40.29 | ||
| 107 |  | BOSS VBS17340-03 - Inner Vibrator Mounting Plate For VBX6500 And VBX9000 | VBS17340-03-BOSS | $18.35 | ||
| 108 |  | BOSS VBS17368-03 - Outer Vibrator Mounting Plate For VBX8000 | VBS17368-03-BOSS | $58.30 | ||
| 109 |  | BOSS VBS17375-03 - Outer Mount Vibrator Plate For VBX6500 And VBX9000 | VBS17375-03-BOSS | $36.47 | ||
| 123 |  | BOSS VBS17774-03 - Outer Vibrator Mounting Plate For VBX8000 | VBS17774-03-BOSS | $32.12 | ||
| 124 |  | BOSS VBS17773-03 - Inner Vibrator Mounting Plate For VBX8000 | VBS17773-03-BOSS | $20.42 | ||
| 125 |  | BOSS HDW17731 - Hardware Kit For VBS17730 | HDW17731-BOSS | $41.20 | ||
| 114 |  | BOSS MSC14284 - Spreader Side Spinner Harness | MSC14284-BOSS | $39.34 | ||
| 115 |  | BOSS VBS14285 - VBS 4 GA Spreader Side P/G Cable | VBS14285-BOSS | $73.25 | ||
| 116 |  | BOSS MSC14024 - Spinner Harness Jumper | MSC14024-BOSS | $24.76 | ||
| 117 |  | BOSS VBS17880 - Wire Harness Spreader Side Vbx 17+ | VBS17880-BOSS | $148.01 | ||
| 118 |  | BOSS VBS14309 - Harness Light/Switch Sprdr Side Vbs | VBS14309-BOSS | $62.07 | ||
| 120 |  | BOSS VBS17637 - VBX Main Harness Jumper Plug | VBS17637-BOSS | $7.31 | ||
| 128 |  | BOSS VBS14267 - VBX Dust Cap Spreader Harness | VBS14267-BOSS | $9.05 | ||
| 127 |  | BOSS MSC05081 - Power Ground Cable Dust Cap | MSC05081-BOSS | $18.73 | ||
| 129 |  | BOSS MSC05081 - Power Ground Cable Dust Cap | MSC05081-BOSS | $18.73 | ||
| 130 |  | BOSS MSC17990 - VBX 8/9000 Display Control | MSC17990-BOSS | $871.39 | ||
| 131 |  | BOSS VBS14461-03 - Vbox Upper Control Mount Bracket | VBS14461-BOSS | $13.84 | ||
| 132 |  | BOSS VBS14460-03 - VBX Control Box Lower Mount Bracket | VBS14460-BOSS | $13.84 | ||
| 134 |  | BOSS VBS14283 - VBS Truck Side Harness | VBS14283-BOSS | $312.17 | ||
| 135 |  | BOSS HYD12814 - 24-Inch 6GA Red Battery Cable For UTV | HYD12814-BOSS | $10.82 | ||
| 136 |  | BOSS MSC13176 - In-Line Fuse Holder (GEP# MFH-U11-SB) | MSC13176-BOSS | $40.73 | ||
| 137 |  | BOSS MSC13177 - Mega Fuse In-Line 150 Amp | MSC13177-BOSS | $16.04 | ||
| 138 |  | BOSS HDW14464 - Spreader Control Display Fastener Kit | HDW14464-BOSS | $35.46 |
BOSS Spreader Diagrams

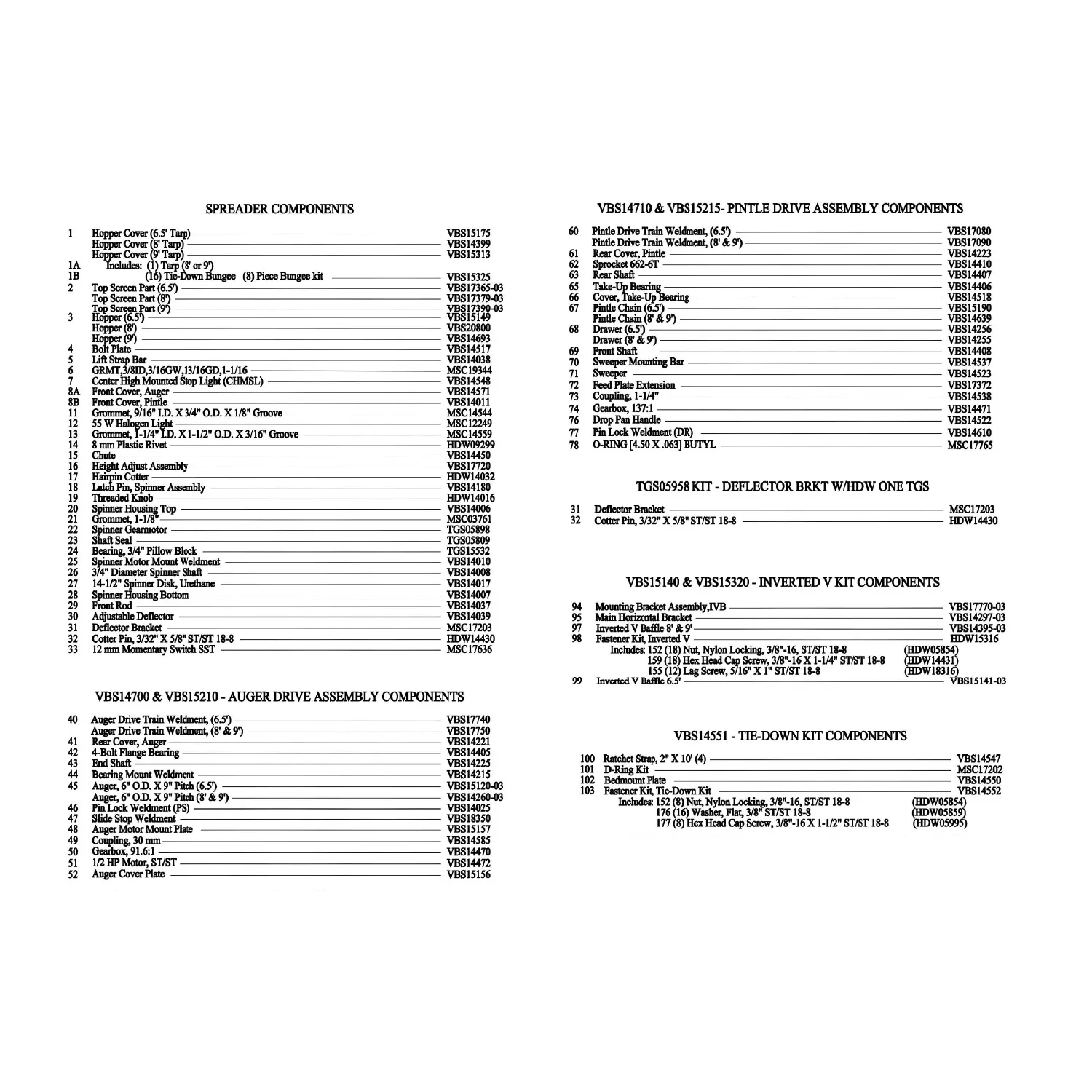

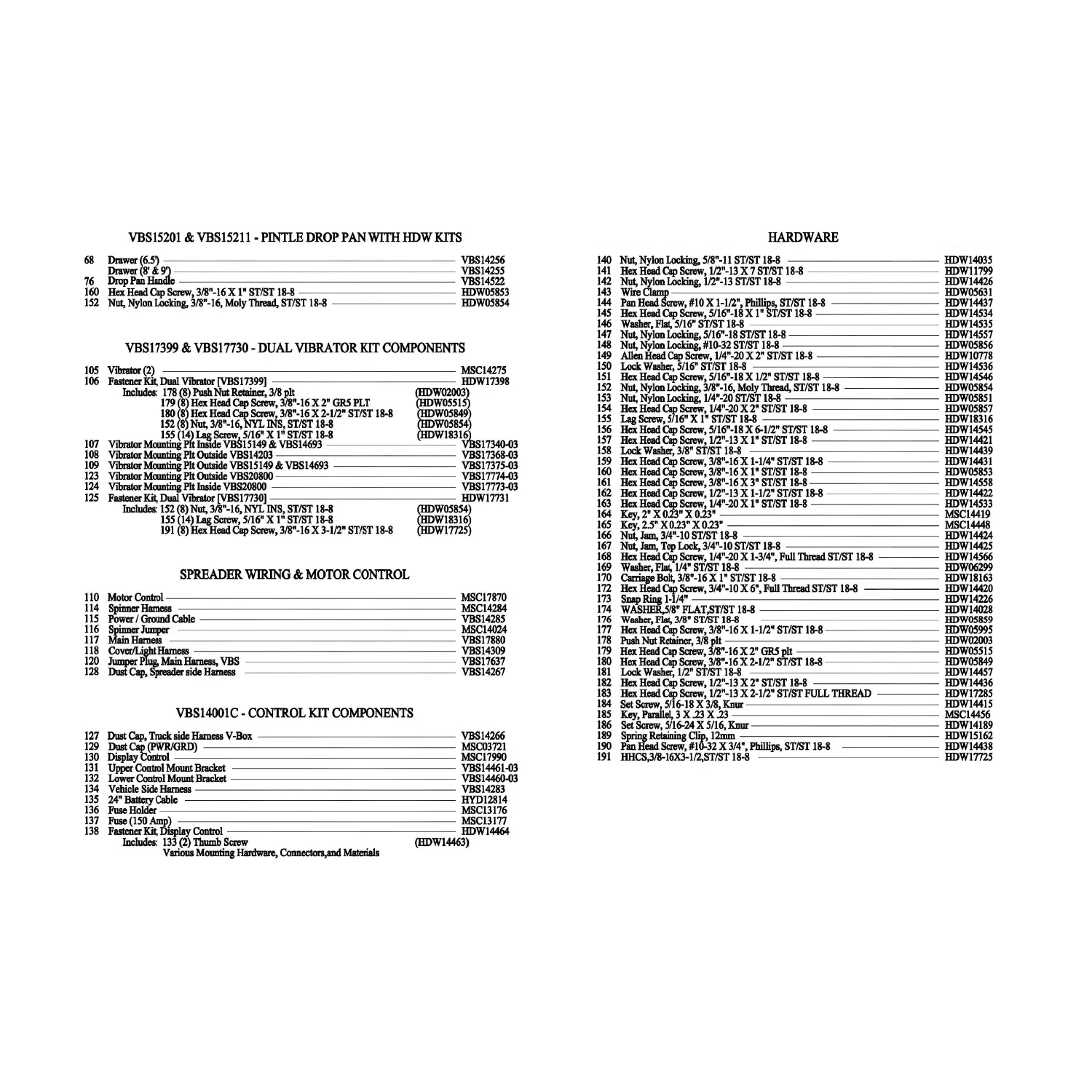

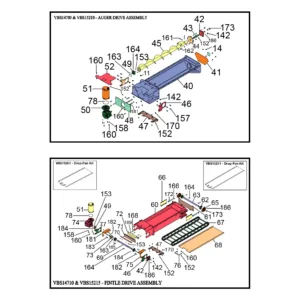

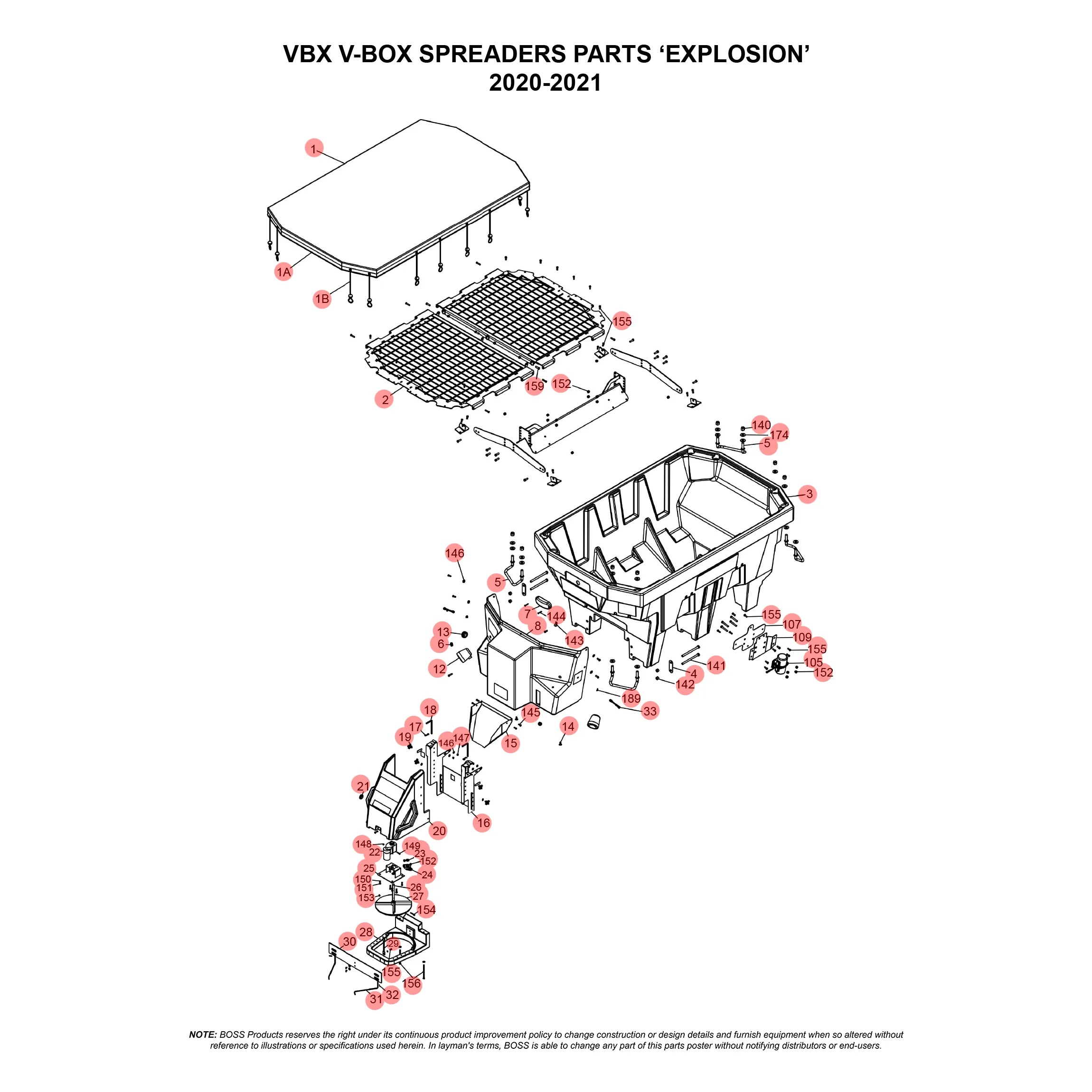

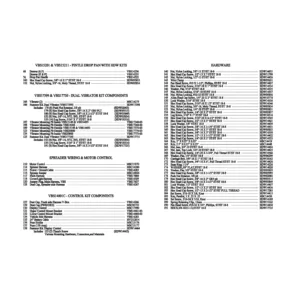

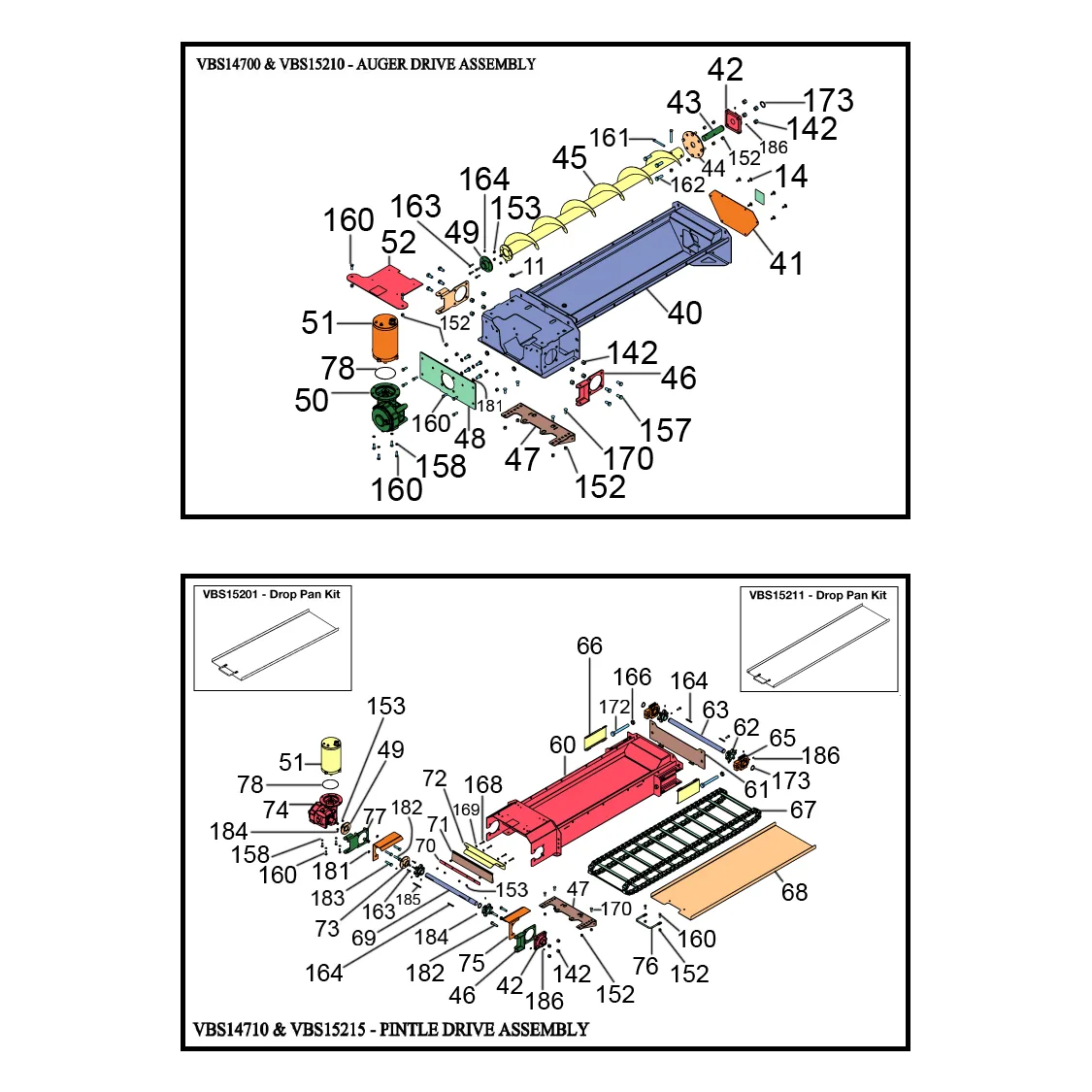

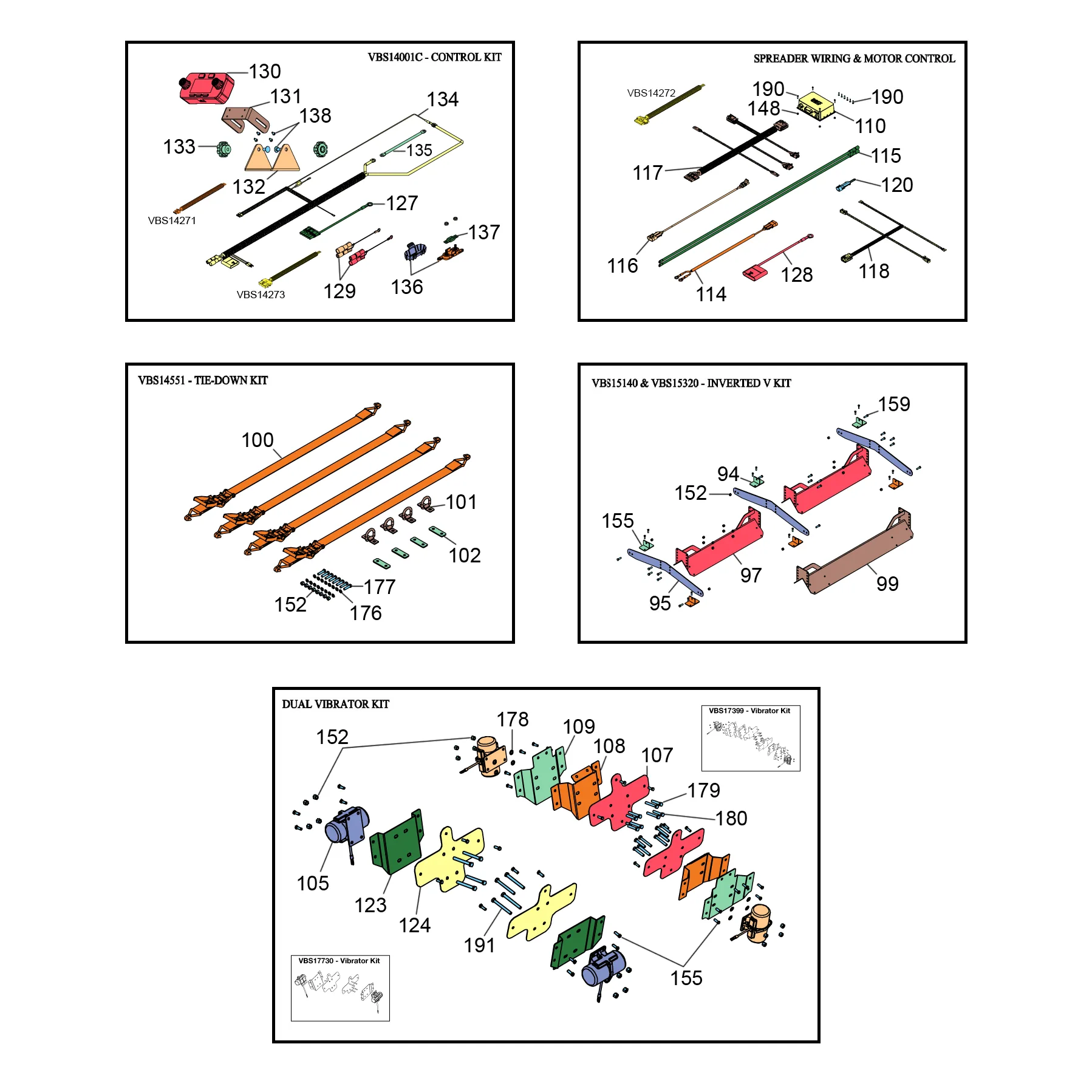

BOSS VBX6500 VBX8000 And VBX9000 Parts Poster
Submit a Stock Inquiry if your order is contingent upon lead time(s).
BOSS VBX6500 VBX8000 And VBX9000 Parts Poster
Submit a Stock Inquiry if your order is contingent upon lead time(s).
NOTE: BOSS Products reserves the right under its continuous product improvement policy to change construction or design details and furnish equipment when so altered without reference to illustrations or specifications used herein. In layman’s terms, BOSS is able to change any part of this parts poster without notifying distributors or end-users.
