- Self-aligning design.
- Equipped to handle high-speed applications without risking drive shaft slippage due to eccentric locking collar.
- Durable one-piece cast iron housing increases bearing life.
- Maintain smooth operation with easily greasable design.

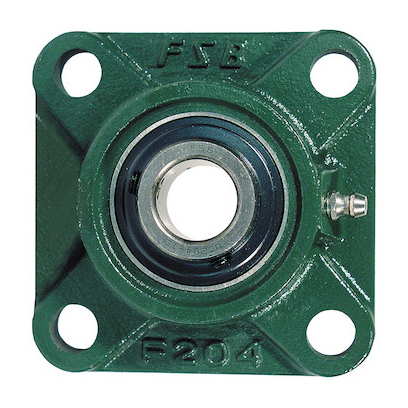

Buyers Products Eccentric Locking Collar Style Flange Bearings are equipped to handle high-speed applications without risking drive shaft slippage.
The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 4 bolt mounting design provides a secure attachment for the bearing. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs.
The flange bearing has a self-aligning design that allows for a small amount of shaft misalignment.
| Bearing Insert Material | Carbon Steel |
| Bolt Hole Center To Center | 4 Inches |
| Bolt Pattern | Square |
| Bolt Size | 0.50 Inches |
| Greasable (Y/N) | Yes |
| Housing Material | Cast Iron |
| Bore Diameter | 1.500 Inch |
| I (Diagram) | 0.97 Inches |
| Bearing Insert Type | Self-Aligning |
| G (Diagram) | 0.63 Inches |
| L (Diagram) | 1.63 Inches |
| Locking Type | Eccentric Lock Collar |
| S (Diagram/Bolt Hole Diameter) | 0.547 Inches |
| Bi (Diagram) | 2.216 Inches |
| K (Diagram) | 2.375 Inches |
| Overall Width | 5.13 Inches |
| Overall Height | 5.13 Inches |
| Overall Depth | 2.34 Inches |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 390 |
| Sell Pack Type | Box |
| Shipping Weight | 5 Lbs |
| UPC | 724920007849 |
Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps , Shaft Driven Air Compressors , Shaft Driven Generators , Shaft Driven Water Pumps
