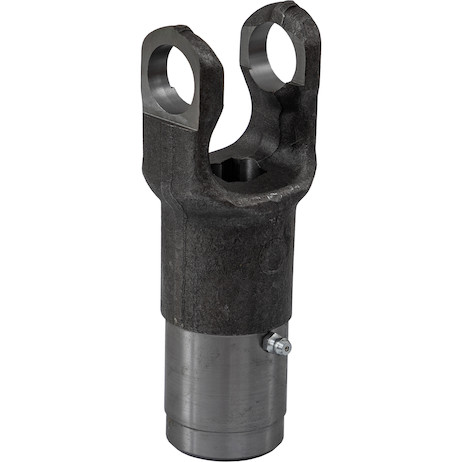

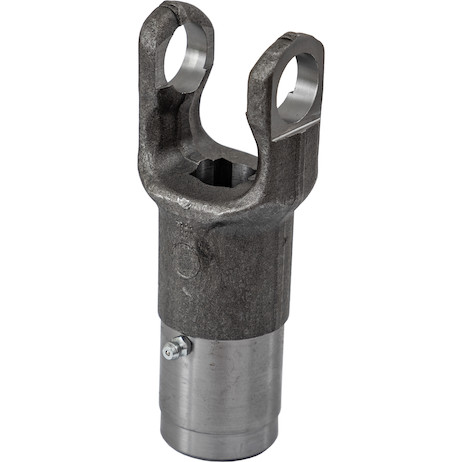

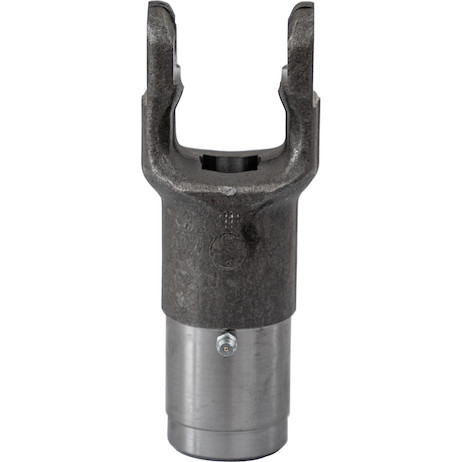

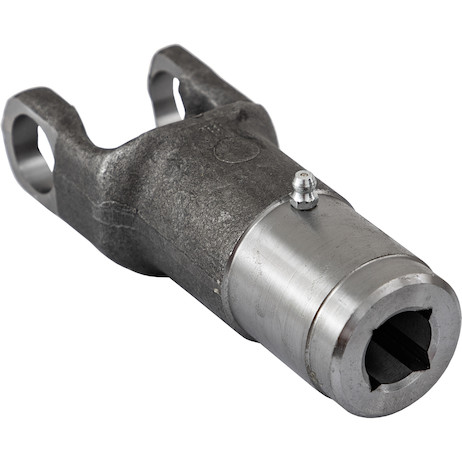

H7 Series Slip Yoke 3/4 Inch Square Bore
Buyers Products H7 Series Slip Yokes work seamlessly with medium-duty PTO driveline components to deliver a reliable, flexible coupling.
-
- Durable forged steel construction.
- Allows for smooth and continuous torque transfer when used with Buyers Products NB7A U-Joints.
- Perfect for medium-duty applications with the ability to handle up to 800 inch-pounds of torque at 1,000 RPM (12 HP).
- Continuous, smooth slip operation when used with a lubricator.
- A variety of sizes and bore types are available.
Specifications
| Bore Dia/Width (in.) | 3/4 | Bore Type | Square |
| Center Line to End of Hub | 5.000″ | Finish | Plain |
| Hub Diameter | 1.563″ | Keyway at | N/A |
| Lubricator at | 3 | Lubricator Thread | 1/4-28 TAPERED |
| Material | Cast Steel | Series | H7 |
| Shipping Weight | 2.01 lb |
Buyers Products H7 Series Slip Yoke is a strong, durable component for your flexible coupling needs. The yoke works best with other driveline components from Buyers Products and is compatible with medium-duty driveline components from other major manufacturers. It comes in a variety of bore sizes and shapes to work with your system.
The slip yoke is made of forged steel to provide strength and durability. It works with the NB7A U-Joint to provide smooth and continuous torque transfer.
The H7 Series End Yoke is ideal for medium-duty applications, capable of handling up to 800 inch-pounds of torque at 1000 RPM (12 HP).
| Bore Type | Square |
| Finish | Plain |
| Material | Cast Steel |
| Series | H7 |
| Bore Diameter/Width | .750 Inches |
| Center Line To End Of Hub | 5 Inches |
| Lubricator Thread | 1/4-28 Tapered |
| Hub Diameter | 1.563 Inches |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 020 |
| Sell Pack Type | Box |
| Shipping Weight | 3 Lbs |
| UPC | 724920000642 |
Product Common Use:Â Power Take Off Yoke, Water Pump Applications, Tarp Systems, PTO Driveshaft
