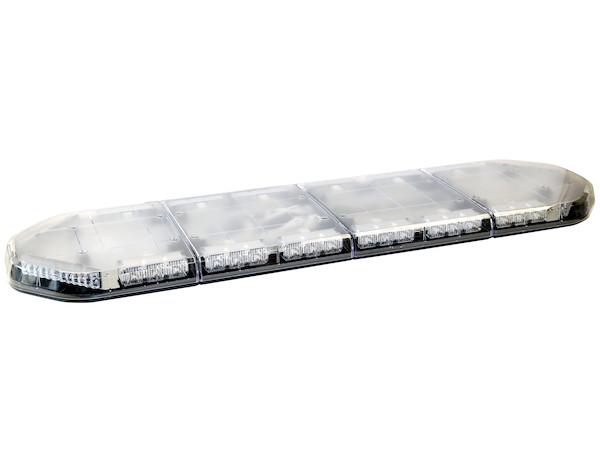

Buyers Products 49 In. LED Modular Light Bar is available in three standard configurations and can be customized by request. It comes standard with amber or amber/clear strobes. The amber light bar is SAE Class 1 certified and has a CA13 rating.
Light bars can be modified by adding your choice of amber, blue, clear, and/or red strobes. Middle strobes have three LEDs and corner strobe heads have six LEDs.
The light bar features a dimming mode and 11 flash patterns and five programmable groups, for a total of 55 different flash sequences. Operating at 7-14A, it comes with a 10 ft pre-wired power/function cable.
The light bar has an extruded aluminum frame with two recessed mounting channels. Mounting feet and controller are sold separately.
Lights are backed with a 5 year warranty.
Product Common Use: Work Trucks, Safety Vehicles, Utility Trucks
- Stock or custom configurations are available to fit any need.
- Amber light bar has a SAE Class 1 and CA13 rating.
- Backed with a 5 year warranty.
Specifications
Amp Draw At 12 Volts: 14 A
Certification: CA13/SAE J845 Class 1/SAE J595 Class 1
Class Level: 1
Depth: 13 Inches
Dimming Mode (Y/N): Yes
Hard Wired Or Plug: Hard Wired
Height: 2.188 Inches
Housing Material: Multiple
Lens Material: Polycarbonate
Lens Shape: Octagonal
Mounts Included: No
Number of Flash Patterns: 55
Number of LEDs Per Corner Strobe: 6
Number of LEDs Per Middle Strobe: 3
Number of Modules: 8
Type of Plug: Stripped Leads
Wattage: 168 W
Light Type: LED
Number of LEDs Per Lens: 36
Base/Mount Type: Surface
Width: 49 Inches
Plug Included: No
Voltage: 12 VDC
Lead Length: 15 Inches
Built-In Switch: No
Connector: Blunt Cut
Weight: 31 lbs
