- Compact and efficient source of hydraulic power for smaller dump applications.
- Air-controlled operation.
- Adaptable to virtually any truck.

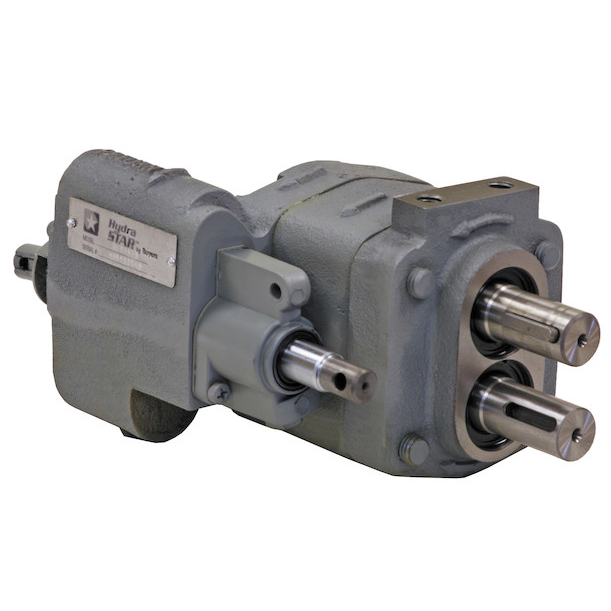

The Remote Mount Small Dump Pump with Air Control from Buyers Products is a compact source of hydraulic power ideal for smaller dump applications.
Choose from two models for the GPM flow that meets your needs.
The pump includes a 4 bolt SAE mounting flange and 7/8 inch by 13 spline shaft, and third line sleeve.
| Displacement | 2 Inches ³/r |
| Displacement 2 | 11 GPM |
| Gear Width | 1.5 Inches |
| Input Mount Type | Frame Mount |
| Material | Cast Iron |
| Maximum Rotations Per Minute (RPM) | 2000 RPM |
| Mount Type | Frame Mount |
| Shaft Size | 1 |
| Shaft Type | Round/Keyed |
| Ports (Rear/Side) | Rear |
| Inlet Port Size | 1-1/4 NPT |
| Maximum Pressure | 2500 PSI |
| Direct Or Remote Mount | Remote Mount |
| Outlet Port Size | 3/4 NPT |
| Rotation | Clockwise or Counterclockwise |
| Gear Size | 1.5 Inches |
| Flow At 600 RPM | 7 GPM |
| Flow At 1000 RPM | 11.7 GPM |
| Flow At 1800 RPM | 21 GPM |
| Flow At 900 RPM | 10.44 GPM |
| Flow At 1200 RPM | 14.04 GPM |
| Flow At 1500 RPM | 16.76 GPM |
| Flow At 2100 RPM | 24.57 GPM |
| Rear Port Size | 3/4 NPT |
| Suction Port Size | 1-1/4 NPT |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 620 |
| Sell Pack Type | Box |
| Shipping Weight | 35 Lbs |
| UPC | 724920117890 |
Product Common Use: Truck and Trailer Hydraulic Systems, Small Dump Applications
