- Designed to be economical, efficient, compact and powerful.
- Ideal for powering medium-duty applications such as compressors, augers, winches, cranes, and spreaders.
- Industry-proven spool valve design.
- State-of-the-art gerotors.
- Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate.

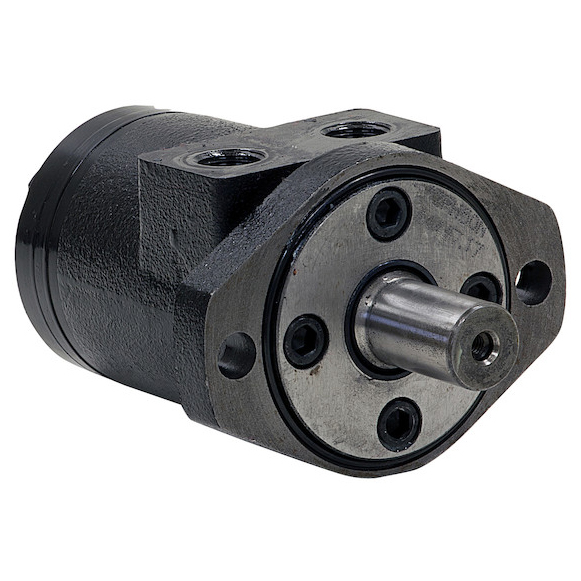

Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.
The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate.
Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
| Compares To | 101-1025-009 |
| Flow (Continuous) | 12 GPM |
| Input Mount Type | 2 Bolt |
| Material | Cast Iron |
| Maximum Case Pressure (Without Case Drain) | 1500 PSI |
| Maximum Speed (Continuous) | 969 RPM |
| Pilot Diameter | 3.25 Inches |
| Shaft Keyway | 0.25 Inches |
| Shaft Type | Straight |
| Displacement | 2.8 Square Inches |
| Flow (Intermittent) | 14 GPM |
| Torque Rating (Continuous) | 650 Inch pound |
| Torque Rating (Intermittent) | 720 Inch Pound |
| Port Size | 1/2 NPT |
| Shaft Size | 1 Inch |
| Maximum Speed At Continuous Flow | 969 RPM |
| Maximum Speed At Intermittent Flow | 1130 RPM |
| Minimum Starting Torque (Continuous Pressure) | 520 Inch Pound |
| Minimum Starting Torque (Intermittent Pressure) | 720 Inch Pound |
| Pressure Δ Bar (Continuous) | 1800 PSI |
| Pressure Δ Bar (Intermittent) | 2400 PSI |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 621 |
| Sell Pack Type | Box |
| Shipping Weight | 14 Lbs |
| UPC | 724920111812 |
Product Common Use: Truck and Trailer Hydraulic Systems, Medium Duty Applications, Compressors, Cranes
