- Simple, reliable design with a plain bearing journal assembly.
- Ideal for tarp crank applications.
- Fully assembled universal joint saves installation time.

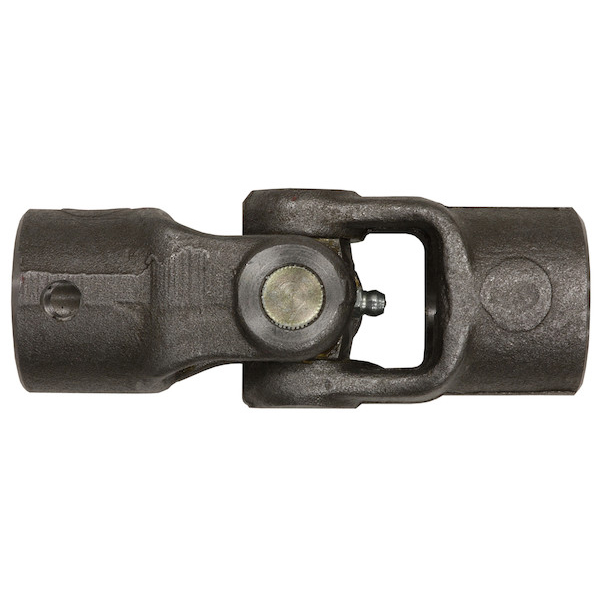

Buyers Products H3 Standard Pin and Block Joint comes fully assembled and ready for your low torque application. Its size and rating make it ideal for tarp cranks and dump tarp systems.
The plain bearing U-joint is made of forged steel to provide strength and durability. It is low maintenance and ensures smooth and continuous torque transfer.
| Yolk 1 Bore Type | Round |
| Yolk 1 Finish | Plain |
| Yolk 1 Keyway At | 1 |
| Yolk 1 Keyway Size | 0.250 Inches |
| Yolk 1 Material | Carbon Steel |
| Yolk 1 Set Screw Location In Relation To Keyway | 4 |
| Yolk 2 Bore Type | Round |
| Yolk 2 Finish | Plain |
| Yolk 2 Keyway At | 1 Inch |
| Yolk 2 Keyway Size | 0.250 Inches |
| Yolk 2 Material | Carbon Steel |
| Yolk 2 Set Screw Location In Relation To Keyway | 4 |
| Series | H3 |
| Yolk 1 Bore Diameter/Width | 1 Inch |
| Yolk 2 Bore Diameter/Width | 1 Inch |
| Yolk 1 Set Screw Size | 3/8-16 |
| Yolk 1 End Of Hub To Centerline Of Set Screw Hole | 0.472 Inches |
| Yolk 1 Hub Diameter | 1.69 Inches |
| Yolk 1 Center Line To End Of Hub | 2.563 Inches |
| Yolk 2 Set Screw Size | 3/8-16 |
| Yolk 2 End Of Hub To Centerline Of Set Screw Hole | 0.472 Inches |
| Yolk 2 Hub Diameter | 1.69 Inches |
| Yolk 2 Center Line To End Of Hub | 2.563 Inches |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 010 |
| Sell Pack Type | Bag |
| Shipping Weight | 3 Lbs |
| UPC | 724920111911 |
Product Common Use: Tarp Systems, Crank Applications
