- Built tough of cast iron with teflon-coated bronze thrustplates.
- Structural integrity supported by four internal dowels and a shaft bearing.
- High-pressure rated.

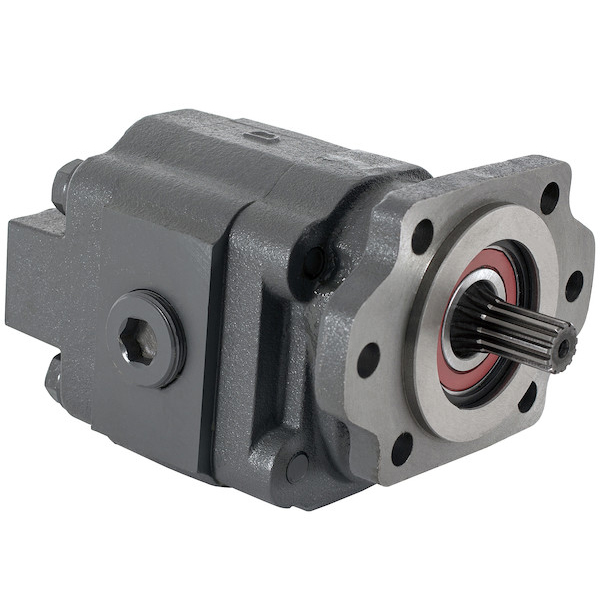

The H50 Series Hydraulic Gear Pump with Spline Shaft from Buyers Products is a sturdy, heavy duty bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount. Choose from a range of models to meet your needs. All models feature a 7/8 inch by 13 spline shaft.
| Displacement | 5 Cubic Inches |
| Displacement | 20 GPM |
| Gear Width | 2 Inches |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Maximum Rotations Per Minute (RPM) | 2000 RPM |
| Mount Type | SAE B 2/4 Bolt |
| Pilot Diameter | 4 Inches |
| Shaft Size | 7/8-13 |
| Shaft Type | Splined |
| Ports (Rear/Side) | Rear/Side |
| Inlet Port Size | 1-1/4 NPT |
| Maximum Pressure | 2500 PSI |
| Direct Or Remote Mount | Direct Mount |
| Outlet Port Size | 1-1/4 NPT |
| Rotation | Bi-Directional |
| Gear Size | 2 Inches |
| Flow At 600 RPM | 12 GPM |
| Flow At 1000 RPM | 20 GPM |
| Flow At 1800 RPM | 36 GPM |
| Flow At 900 RPM | 18 GPM |
| Flow At 1200 RPM | 24 GPM |
| Flow At 1500 RPM | 30 GPM |
| Flow At 2100 RPM | 42 GPM |
| Rear Port Size | 1-1/4 NPT |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 620 |
| Sell Pack Type | Box |
| Shipping Weight | 49 Lbs |
| UPC | 724920109185 |
Product Common Use: Truck and Trailer Hydraulic Systems
