- Built tough to handle live floor applications.
- Features heavy duty roller bearing construction.
- Eight-doweled design adds structural strength.
- High-pressure rated — will handle a maximum 3000 PSI.

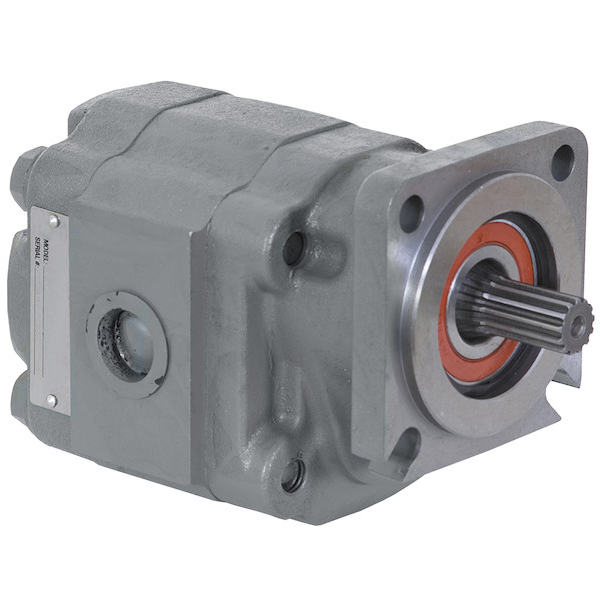

The heavy duty Live Floor Hydraulic Pump from Buyers Products is built tough to handle continuous, high-pressure operations such as a live floor. It features counter clockwise rotation.
The pump is constructed of cast iron with Teflon-coated bronze thrust plates and heavy duty roller bearings. Eight internal dowels protect the structural integrity of the pump.
Two models both handle a maximum 3000 PSI while delivering a flow of either 18 GPM or 24.2 GPM at 1000 RPM.
The pump is designed to be 4-bolt mounted into an SAE B mount.
| Displacement | 6 Cubic Inches |
| Displacement | 24 GPM |
| Gear Width | 2.50 Inches |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Mount Type | SAE B 4 Bolt |
| Pilot Diameter | 4 Inches |
| Shaft Size | 7/8-13 |
| Shaft Type | Splined |
| Ports (Rear/Side) | Side |
| Inlet Port Size | 1-1/2 NPT |
| Maximum Pressure | 3000 PSI |
| Direct Or Remote Mount | Direct Mount |
| Outlet Port Size | 1-1/2 NPT |
| Rotation | Counterclockwise |
| Gear Size | 2.50 Inches |
| Flow At 600 RPM | 14.52 GPM |
| Flow At 1000 RPM | 24 GPM |
| Flow At 1800 RPM | 43.56 GPM |
| Flow At 900 RPM | 21.78 GPM |
| Flow At 1200 RPM | 29 GPM |
| Flow At 1500 RPM | 36.3 GPM |
| Flow At 2100 RPM | 50.82 GPM |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 620 |
| Sell Pack Type | Box |
| Shipping Weight | 50 Lbs |
| UPC | 724920096119 |
Product Common Use: Truck and Trailer Hydraulic Systems, Live Floor Applications
