- Dual filter design ideal for high-flow applications.
- Filters contaminants down to 10 or 25 microns from the oil returning to the reservoir.
- Extends the life of your hydraulic system.
The 100 GPM Return Line Filter from Buyers Products blocks contaminants as small as 10 microns from returning to your hydraulic reservoir.

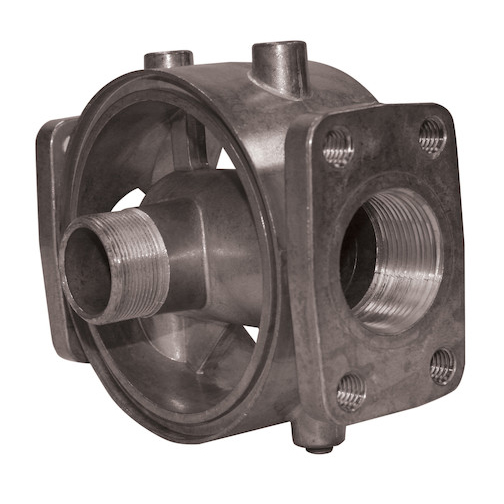

The dual filter design is ideal for high flow volume applications. It is rated up to 100 GPM for return line flow and can take up to 150 PSI of working pressure, with your choice of a 15 or 25 PSI bypass. The assembly comes with the filter head and two 10 or 25 micron filter elements.
| Filter Media | Cellulose |
| In Tank/Out Of Tank | External |
| Maximum Flow Return | 100 GPM |
| Maximum Flow Suction | 35 GPM |
| Maximum Pressure | 150 PSI |
| Number Of Elements | 2 |
| Thread Size | 1-1/2 NPTF |
| Filter Rating | 10 µm |
| Minimum Operating Temperature | -22 F |
| Maximum Operating Temperature | 180 F |
| Port Size | 1-1/2 NPTF |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 635 |
| Sell Pack Type | Box |
| Shipping Weight | 7 Lbs |
| UPC | 724920032285 |
Product Common Use: Truck and Trailer Hydraulic Systems, High-Volume Dump Applications
