- Dual filter design ideal for high-flow applications.
- Filters contaminants down to 10 microns from the oil returning to the reservoir.
- Extends the life of your hydraulic system.
The HFA4 90 GPM Return Line Filter from Buyers Products blocks contaminants down to 10 microns in size from returning to your hydraulic reservoir.
The dual filter design is ideal for high flow volume applications, such as large dump bodies. It is rated up to 90 GPM for return line flow and can take up to 150 PSI of working pressure, with your choice of a 15 or 25 PSI bypass.

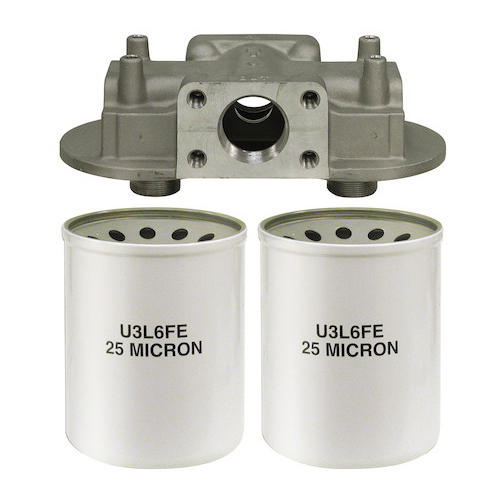

The assembly comes with the filter head and either a 10 or 25 micron filter element. Items can also be purchased separately.
| Filter Media | Cellulose |
| In Tank/Out Of Tank | External |
| Maximum Flow Return | 90 GPM |
| Maximum Flow Suction | 20 GPM |
| Maximum Pressure | 150 PSI |
| Number Of Elements | 2 |
| Thread Size | 1-1/2 NPTF |
| Filter Rating | 25 µm |
| Minimum Operating Temperature | -22 Degrees Fahrenheit |
| Maximum Operating Temperature | 180 Degrees Fahrenheit |
| Port Size | 1-1/2 NPTF |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 635 |
| Sell Pack Type | Bag |
| Shipping Weight | 10 Lb |
| UPC | 724920032346 |
Product Common Use: Truck and Trailer Hydraulic Systems, High-Flow Hydraulic Applications
