- Space-saving in-tank design.
- Filters contaminants down to 10 or 25 microns from the oil returning to the reservoir.
- Extends the life of your hydraulic system.

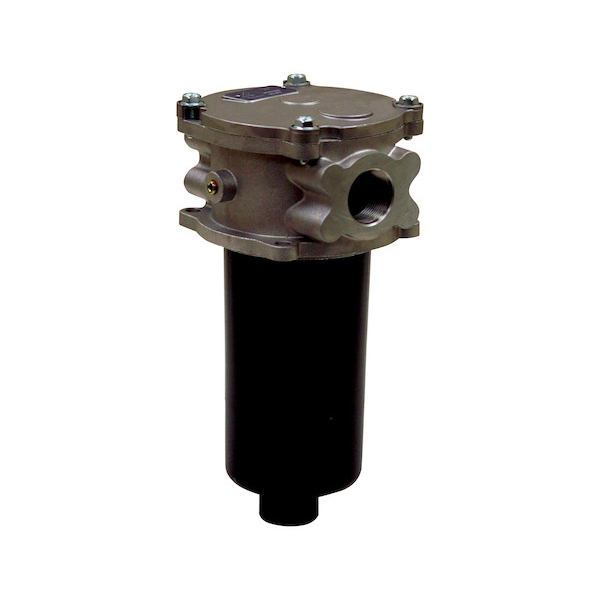

The HFA5 Series 50 GPM In-Tank Filter from Buyers Products blocks contaminants as small as 10 microns from returning to your hydraulic reservoir.
Located inside the reservoir, the filter assembly saves space by not having to be installed externally, and can operate in temperatures from -22 Degrees Fahrenheit to 212 Degrees Fahrenheit. It can handle up to 100 PSI working pressure and has a 25 PSI bypass. The assembly comes with the filter head and either a 10 or 25 micron filter element. The 25 micron element allows an increased flow rate of up to 40 GPM.
Filter Media | Cellulose |
In Tank/Out Of Tank | In-Tank |
Maximum Flow Return | 50 GPM |
Maximum Flow Suction | Return Only GPM |
Maximum Pressure | 100 PSI |
Number Of Elements | 1 |
Thread Size | 1-1/4 NPTF |
Filter Rating | 10 µm |
Series | HFA5 |
Minimum Operating Temperature | -22 Degrees Fahrenheit |
Maximum Operating Temperature | 212 Degrees Fahrenheit |
Port Size | 1-1/4 NPTF |
Min Order Qty | 1 |
Multiple Sale Qty | 1 |
Product Code | 635 |
Sell Pack Type | Box |
Shipping Weight | 7 Lbs |
UPC | 724920032377 |
Product Common Use: Truck and Trailer Hydraulic Systems
