- Many configurations available to fit your exact needs.
- Electric controls take less room in your cab — great for smaller trucks.
- Tough cast-iron sectional design for reliability and versatility.
- Handles demanding jobs with a maximum rating of 4300 PSI (when the main relief is set to a higher pressure).
- Adjustable main relief lets you tackle jobs of varying demands.
- Additional job-specific workload protection with optional port reliefs (angle and dump) available.

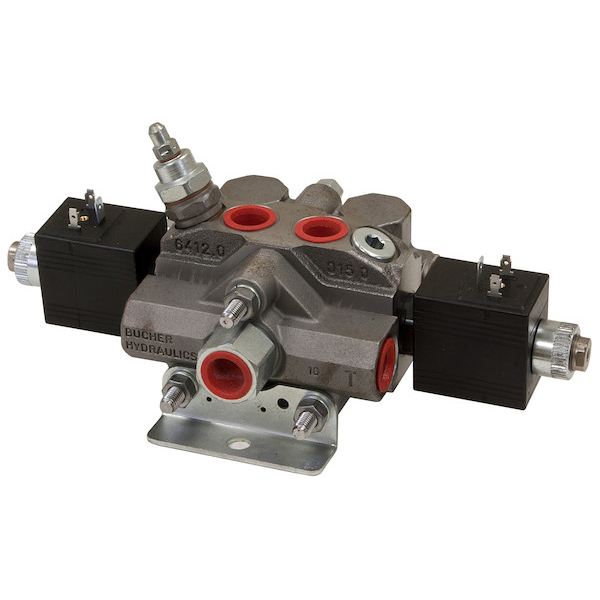

The compact Electric Sectional Valve from Buyers Products features a compact design. Its electrical controls allow you to mount a switch in the cab and control the valve remotely. It’s great for smaller trucks and plow trucks.
The 12V valve is rated to a max flow of 11 GPM. It features a simple on/off (non-proportional) flow. It can handle a maximum rating of 4300 PSI when the main relief is set at a higher pressure. The main relief is adjustable from 1300 to 3000 PSI (factory preset at 2150 PSI ). Two additional adjustable port reliefs — angle and dump — are available to provide protection for the specific job. The valve has cylinder spools, and features load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals.
| Main Relief Setting | 1300-3000 (Set @ 2150) PSI |
| Maximum Pressure | 3600 PSI |
| Power Beyond (Y/N) | Yes |
| Amps Per Coil | 2.5 |
| Coil Voltage | 12 |
| Number Of Spools | 1 |
| Spool Action | Power Up/Power Down – 1 Port Relief |
| Maximum Flow Rate | 11 GPM |
| Work Port Size | 1/2 SAE ORB (-8) |
| Inlet Port Size | 1/2 SAE ORB (-8) |
| Outlet Port Size | 1/2 SAE ORB (-8) |
| Electrically Operated (Y/N) | Yes |
| Port Relief Angle | 1900-4300 (Set @ 2150) |
| Port Relief Dump | 400-1900 (Set @ 600) |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 624 |
| Sell Pack Type | Box |
| Shipping Weight | 10 Lbs |
| UPC | 724920118712 |
Product Common Use: Truck and Trailer Hydraulic Systems, Smaller Trucks
