- Sleek, polished stainless steel will stand up to salt and weather.
- Pre-drilled for an 10 micron or 25 micron filter (sold separately).
- Fluid level and temperature gauge included.
- Contaminant-catching magnetic drain plug.
- Interior baffle keeps fluid cool and directed where it should be.
- Fully tested for optimal operation.

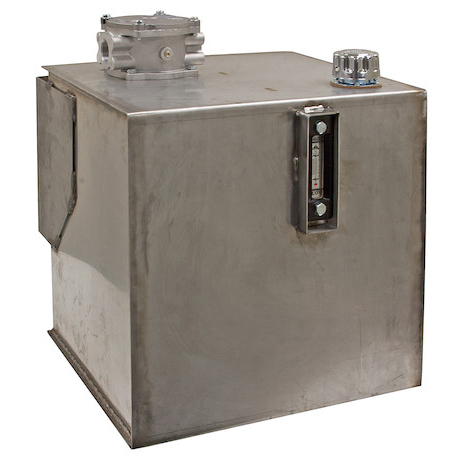

The 30 Gallon Stainless Steel Reservoir from Buyers Products is made of high-quality 304 stainless steel with welded-on carbon steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested.
The reservoir has several features for optimal fluid operation, including:
- A quarter-turn Chrome Filler Breather with a Wire Basket Strainer.
- A sight Fluid Level and Temperature Gauge.
- An Interior Baffle between suction and discharge to aid in fluid cooling.
- A Magnetic Drain Plug to aid in preventing metallic particle contamination.
The reservoir comes pre-drilled for a tank-mounted HFA5S series return filter (sold separately).
| Capacity | 30 Gal |
| Color | Natural |
| Depth | 17 Inches |
| Finish | Smooth |
| Hardware And Brackets Included (Y/N) | No |
| Height | 22 Inches |
| Integral Brackets (Y/N) | Yes |
| Integral Level Gauge (Y/N) | Yes |
| Material | Stainless Steel |
| Material Gauge | 13 |
| Mount Position | Side Mount |
| Oil Level Gauge (Y/N) | Yes |
| Reservoir Shape | Rectangle |
| Temperature Gauge (Y/N) | Yes |
| Width | 28.35 Inches |
| Usable Capacity | 30 Gal |
| Suction Port Size | 2 NPT |
| Included Valve (Y/N) | No |
| Magnetic Drain Plug (Y/N) | Yes |
| Return Line Filter Included (Y/N) | Yes |
| Return Line Filter Rating | 25 µm |
| Additional Port Size | 1-1/4 NPT | 3/4 NPT |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 638 |
| Sell Pack Type | Box |
| Shipping Weight | 99 Lbs |
| UPC | 724920114875 |
Product Common Use: Walking Floor Trailers, Belt Trailers, Lowboy Trailers, Sliding Axle Trailers
