- Includes everything you need to set up a hydraulic system for your dump application.
- Choose the combination of upright reservoir size and material for your needs.
- Pumps can be ordered with clockwise or counterclockwise operation.
- All brackets, hoses, fittings, fasteners, and other hardware included.
The Upright Reservoir/Direct Mount Pump Wetline Kit from Buyers Products has everything you need to set up a dump hydraulic system.
Choose from a steel, polymer, or aluminum reservoir with a 50 gal or 70 gal capacity. All versions come with a cast iron pump/valve assembly rated at 46 GPM at 1800 RPM.
Specify clockwise or counterclockwise rotation based on the PTO operation. Contact Customer Service for assistance.

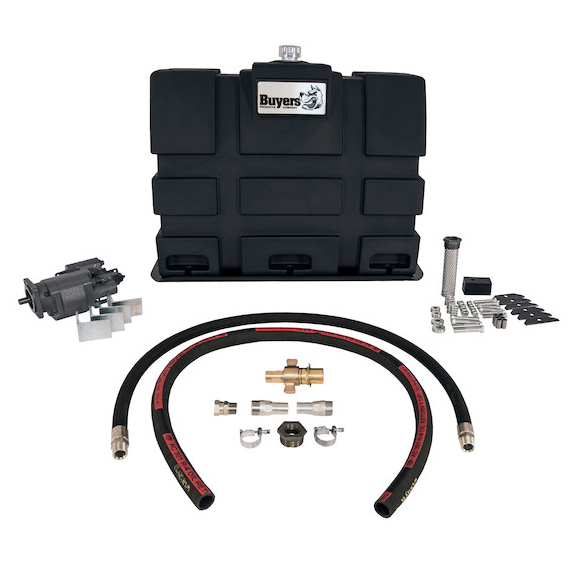

The Wetline Kit Includes:
| QTY | DESCRIPTION |
| 1 | Upright Reservoir |
| 1 | Frame Bracket Kit with Fasteners |
| 1 | Reservoir Isolation Package |
| 1 | 46 GPM @ 1800 RPM Cast Iron Pump/Valve Combination with Brackets |
| 1 | Internally-Reinforced Suction Hose 1-1/4 Inch x 6 Feet |
| 2 | 1-1/4 Inch Barbed Adapter Fittings |
| 2 | 1-1/4 Inch Stainless Steel Hose Clamps |
| 1 | High-Pressure Swivel Adapter – 1 Inch |
| 1 | Wing Type High-Pressure Quick-Detach Coupling – 1 Inch |
| 1 | High-Pressure Hose – 1 Inch x 6 Feet |
Product Details:
| Reservoir Volume | 70 Gallons |
| Reservoir Material | Carbon Steel |
| Reservoir Position | Upright |
| Pump Rotation | Counterclockwise |
| Flow At 1800 RPM | 46 GPM |
| Direct Or Remote Mount | Direct Mount |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 648 |
| Sell Pack Type | Box |
| Shipping Weight | 320 Lbs |
| UPC | 724920039949 |
Product Common Use: Truck and Trailer Hydraulic Systems, Dump Trailers and Trucks
