Twin Arm Underbody Subframe Hoists

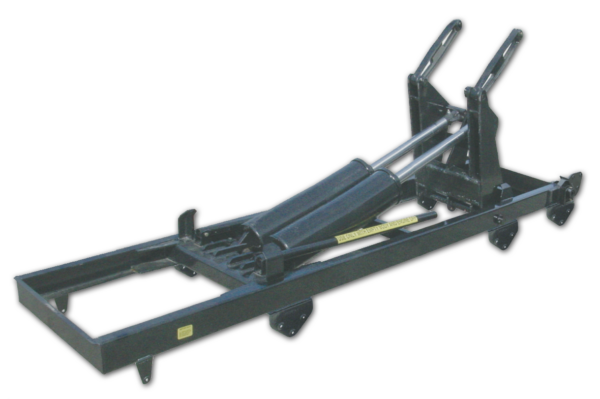

Champion 834SFDA Twin Arm Underbody Subframe Hoists are rugged twin-arm underbody subframe hoists engineered for contractor dump bodies measuring 14 to 16 feet in length. Built with over a century of industry-leading innovation, Champion underbody hoists are proven to outperform conversion hoists in heavy-duty applications, providing superior strength, stability, and reliability.
Constructed from mill-certified 50K and 100K steel, the hoist is finished with a tough, abrasion- and chemical-resistant thermoset powder coating to withstand the harshest working conditions. Each unit includes integrated Zerk grease fittings at all pivot points for easy maintenance, along with all necessary mounting hardware, fasteners, and body prop hardware for seamless installation.
Unlike many competitors, Champion manufactures its own hydraulic cylinders, ensuring unmatched quality control and durability. This means your entire hoist is covered by Champion’s industry-leading 3-year product warranty, offering peace of mind with every purchase.
Champion 834SFDA Specifications:
-
Compatible Body Length: 14′ – 16′
-
NTEA Class: 120
-
Cylinders: Two 8″ Bore | 34″ Stroke | 2-1/2″ Diameter Rod
-
Dumping Capacity: Up to 29 tons
-
Construction: Mill-certified 50K & 100K steel
-
Finish: Durable thermoset powder coating
-
Maintenance: Integrated Zerk grease fittings
-
Warranty: 3 years
Designed for contractors who demand long-lasting performance and dependable power, the Champion 834SFDA is the ultimate underbody hoist solution for your heavy-duty dump body needs.
IMPORTANT INFORMATION:
FF hoist will include the subframe, cylinder, torque arm, 2-lift arms & pins, safety prop and cup, rear hinges, and decals
EMSA kits will include all of the above with the FF hoist PLUS Bucher single acting electric pump, hoses, fittings, and push button controls w/cord
EMDA kits will include all of the above with the FF hoist PLUS Bucher double acting electric pump, hoses, fittings, and push button controls w/cord
P21-8C kits will include all of the above with the FF hoist PLUS P21 gear pump, Champion cable-operated tank/valve, hoses, fittings, and cable controls
P21-8S kits will include all of the above with the FF hoist PLUS P21 gear pump, Champion solenoid-operated tank/valve, hoses, fittings, and push-button control
P22-8C kits will include all of the above with the FF hoist PLUS P22 gear pump, Champion cable-operated tank/valve, hoses, fittings, and cable controls
P22-8S kits will include all of the above with the FF hoist PLUS P22 gear pump, Champion solenoid-operated tank/valve, hoses, fittings, and push-button controls
P22-V20-4 DOUBLE ACTING kits will include all of the above with the FF hoist, PLUS P22 gear pump, remote valve, tank, hoses, fittings, and cable controls
