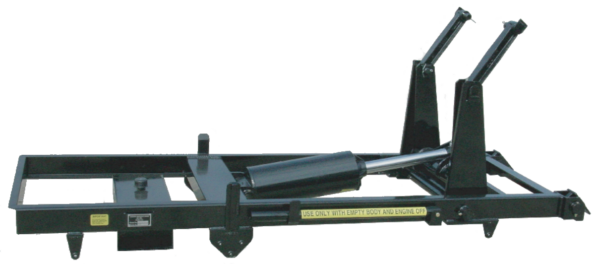

Champion C716SFDA – Uninstalled Twin Arm Underbody Subframe Hoist for Contractor Bodies

CHAMPION C716SFDA | Uninstalled Twin Arm Underbody Subframe Hoist for Contractor Bodies

Champion’s underbody hoists are well designed and industry proven with over a century of innovation behind each model. Underbody hoists in general, tend to be more suitable than conversion hoists in heavier duty applications. Champion offers a full line of underbody hoists designed for use with bodies ranging is lengths from 8′ to 16′ long, providing dumping capacities of 14 to 29 tons. Champion manufactures underbody hoists using mill certified 50K and 100K steel and encapsulates them in a super durable abrasive and chemical resistant thermoset powder coating. All hoists feature integrated Zerk grease fittings at all pivots. When you purchase an underbody hoist from Champion, all necessary mounting hardware, fasteners, and body prop hardware are included. Unlike most trailer hoist brands, Champion manufactures the hydraulic cylinders used in their hoists. This means that the entire hoist is covered under Champion’s 3 year product warranty.

CHAMPION C716SFDA DETAILS:

• Body Length: 9′-10′
• NTEA Class: 40
• 7″ Bore | 16″ Stroke | 2-1/2″ Diameter Rod
• Capacity: 14.3 Tons

IMPORTANT INFORMATION:

FF hoist will include the subframe, cylinder, torque arm, 2-lift arms & pins, safety prop and cup, rear hinges and decals

EMSA kits will include all of above with the FF hoist PLUS Bucher single acting electric pump, hoses, fittings, and push button controls w/cord

EMDA kits will include all of above with the FF hoist PLUS Bucher double acting electric pump, hoses, fittings, and push button controls w/cord

P21-8C kits will include all of above with the FF hoist PLUS P21 gear pump, Champion cable operated tank/valve, hoses, fittings, and cable controls

P21-8S kits will include all of above with the FF hoist PLUS P21 gear pump, Champion solenoid operated tank/valve, hoses, fittings, and push button control

P22-8C kits will include all of above with the FF hoist PLUS P22 gear pump, Champion cable operated tank/valve, hoses, fittings, and cable controls

P22-8S kits will include all of above with the FF hoist PLUS P22 gear pump, Champion solenoid operated tank/valve, hoses, fittings and Push Button Controls

P22-V20-4 DOUBLE ACTING kits will include all of above with the FF hoist PLUS P22 gear pump, remote valve, tank, hoses, fittings, and cable controls
