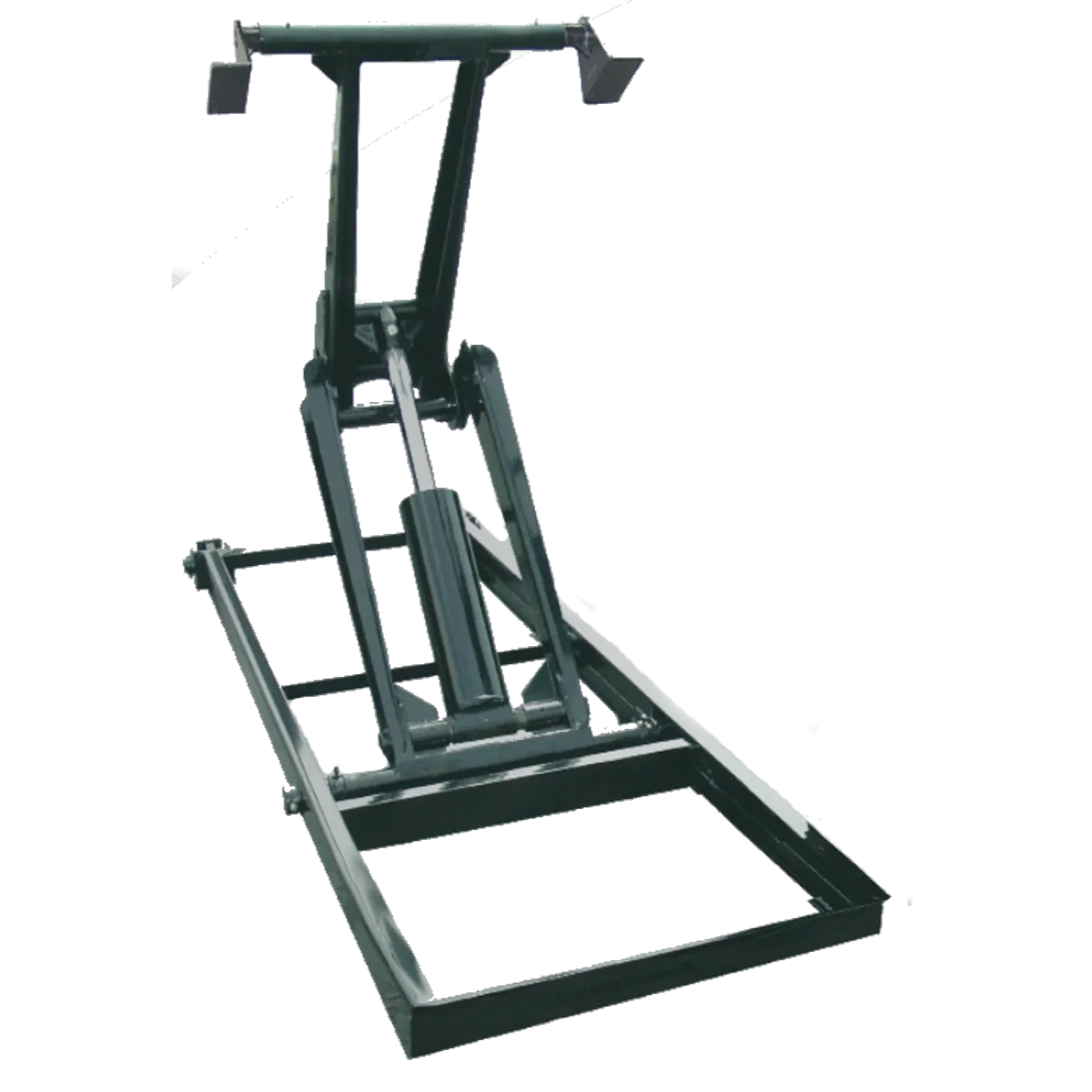

CHAMPION CS620T-15 | Subframe Traditional Scissor Hoist | 50 Degree Dump Angle | 15 Foot Subframe
Champion’s trailer conversion hoists comprise the fastest growing product line the company offers. Their popularity is due to competitive pricing, availability and durability. Champion offers a full line of trailer hoists designed for use with bodies ranging is lengths from 8′ to 20′ long, providing dumping capacities of 3.5 to 27.5 tons. Champion manufactures trailer hoists using industry leading 100K Domex steel and encapsulates them in a super durable abrasive and chemical resistant thermoset powder coating. All hoists feature integrated Zerk grease fittings at all pivots, including the provided rear hinges. When you purchase a conversion trailer hoist from Champion, all necessary mounting hardware, fasteners, and body prop hardware are included. Unlike most trailer hoist brands, Champion manufactures the hydraulic cylinders used in their hoists. This means that the entire hoist is covered under Champion’s 3 year product warranty.
CHAMPION CS620T-15 DETAILS:
- Body Length: 12′-16′
- Mounting Height: 12″
- 45 Degree “G” Dimension: 105.5″
- Operating Pressure: 3200
- NTEA Class: D/40
- 6″ Bore | 20″ Stroke | 2″ Diameter Rod
- Capacity Range: 10.5-18.4 Tons
IMPORTANT INFORMATION:
FF hoist will include the subframe, cylinder, torque arm, 2-lift arms & pins, safety prop and cup, rear hinges and decals
EMSA kits will include all of above with the FF hoist PLUS Bucher single acting electric pump, hoses, fittings, and push button controls w/cord
EMDA kits will include all of above with the FF hoist PLUS Bucher double acting electric pump, hoses, fittings, and push button controls w/cord
P21-8C kits will include all of above with the FF hoist PLUS P21 gear pump, Champion cable operated tank/valve, hoses, fittings, and cable controls
P21-8S kits will include all of above with the FF hoist PLUS P21 gear pump, Champion solenoid operated tank/valve, hoses, fittings, and push button control
P22-8C kits will include all of above with the FF hoist PLUS P22 gear pump, Champion cable operated tank/valve, hoses, fittings, and cable controls
P22-8S kits will include all of above with the FF hoist PLUS P22 gear pump, Champion solenoid operated tank/valve, hoses, fittings and Push Button Controls
P22-V20-4 DOUBLE ACTING kits will include all of above with the FF hoist PLUS P22 gear pump, remote valve, tank, hoses, fittings, and cable controls
