| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 2 |  | Champion SM12016 - Bottom Cylinder Shaft (Fits 415/515/615/615LS/415T/515T/615T) | SM12016-CHMP | $35.10 | ||
| 3 |  | Champion PC12161 - Lift Arm Collar (1-7/8) | PC12161-CHMP | $26.80 | ||
| 4 | | Champion P34 - Set Screw (3/8-16 x 3/4 SQHD) | P34-CHMP | $0.75 | ||
| 5 | | Champion 102-617-L - GR9 Hex Head Cap Screw (5/8 x 4 Inches) | 102-617-L-CHMP | $4.32 | ||
| 7 | | 615T Subframe Weldment (11' Body) | W131110-CHMP | $672.34 | ||
| 9 | | Champion W131019 - Upper Lift Arm Weldment | W131019-CHMP | $46.20 | ||
| 10 | | Champion 116-7-A1 - Hex Nut (5/8) | 116-7-A1-CHMP | $1.22 | ||
| 11 | | Champion 102-609-A1- UNC Hex Bolt | 102-609-A1-CHMP | $5.61 | ||
| 12 |  | Champion PC131048 - Pivot Arm Safety Prop | PC131048-CHMP | $80.85 | ||
| 13 | | Champion F131024 - Subframe Mounting Bracket | F131024-CHMP | $14.64 | ||
| 14 | | Champion F13937 - Two-Hole Mounting Bracket | F13937-CHMP | $10.88 | ||
| 15 | | Champion P10100 - Serial Plate | P10100-CHMP | $6.00 | ||
| 16 | | Cherry Pop Rivet (1/8") | PAAP43-CHMP | $0.24 |
Champion Hoist Diagrams, GTPA-1FDUF5HT7HEC46744

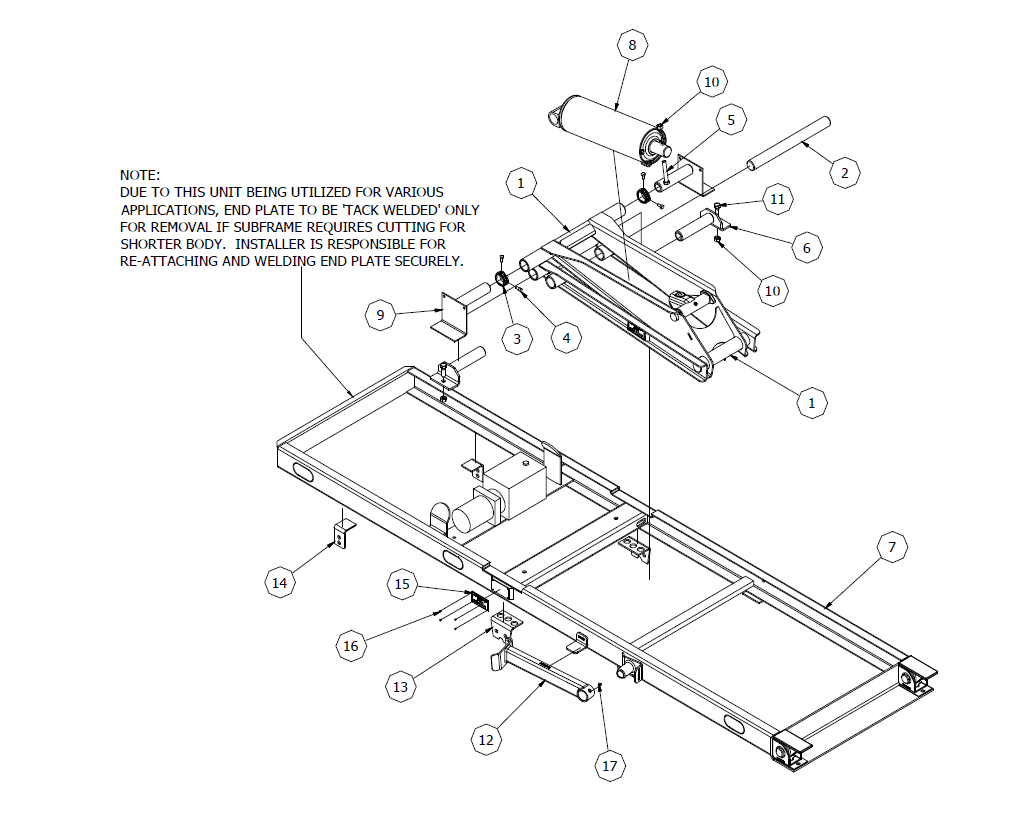

Champion Hoist 615T – 11 Foot Subframe Assembly Diagram
The 11-Foot Champion Hoist Subframe Assembly Diagram is the perfect place to find all of the replacement parts you need through an easy-to-use parts breakdown. no matter what’s broken, you can find replacements right here. Worst case scenario, you can purchase an entire new hoist in our Underbody Hoists category.
