ID | Image | Title | SKU | Price | Quantity | Add to Cart |
---|---|---|---|---|---|---|
0 | Fisher 42283 - Headgear Service Kit | 42283-FSHR | $1,958.93 | |||
0 | Fisher 56725 - 90 Degree Elbow -6 M O-Ring/M JIC | 56725-FSHR | $10.23 | |||
0 | Fisher 69689 - Security Guard Identity Label | 69689-FSHR | $4.18 | |||
1 | Fisher 49652 - Headgear For HD Plow | 49652-FSHR | $1,496.63 | |||
2 | Fisher 27560-2 - Lift Arm Service Kit - Silver | 27560-2-FSHR | $228.33 | |||
3 | Fisher 26777 - Minute Mount 2 Nameplate Label | 26777-FSHR | $13.26 | |||
4 | Fisher 95720 - HT Clevis Pin (1 x 3.313 Inches) | 95720-FSHR | $8.19 | |||
5 | Fisher 90601 - Cotter Pin (1/4 x 1-1/2 Inches) | 90601-FSHR | $0.62 | |||
6 | Fisher 4289K - Short Machine Pin (3/4 x 2 Inches) Packet | 4289K-FSHR | $7.97 | |||
7 | Fisher 28991 - Stop Link Service Kit | 28991-FSHR | $48.95 | |||
8 | Fisher 29037 - Harden Clevis With Cotter Packet | 29037-FSHR | $8.55 | |||
9 | Fisher 27462 - Plow Jack Leg | 27462-FSHR | $67.43 | |||
10 | Fisher 27164K - Handle Kit | 27164K-FSHR | $13.26 | |||
11 | Fisher 27478 - Jack Lock | 27478-FSHR | $31.52 | |||
12 | Fisher 27461 - Compression Spring - 0.72 X 3.5 Inches | 27461-FSHR | $15.11 | |||
13 | Fisher 90658 - Cotter Pin (5/32 x 1-1/4 Inches) | 90658-FSHR | $2.43 | |||
14 | Fisher 27168K - Connecting Pin Kit | 27168K-FSHR | $31.79 | |||
15 | Fisher 26833 - Pin - 1 X 6.94 Inches | 26833-FSHR | $19.91 | |||
16 | Fisher 821 - Compression Spring (1.062 ID X 3.50 Inches) | 821-FSHR | $1.96 | |||
17 | Fisher 26219 - Clevis Pin Kit | 26219-FSHR | $9.92 | |||
18 | Fisher 90315 - Type A 3/8 Flatwasher Wide (0.438 X 1.000 X 0.083) | 90315-FSHR | $1.14 | |||
19 | Fisher 27468 - Link Arm Handle Assembly | 27468-FSHR | $141.81 | |||
20 | Fisher 27535 - Handle Cover Kit | 27535-FSHR | $8.99 | |||
22 | Fisher 27166K - Driver Side Wire Cam Kit | 27166K-FSHR | $31.79 | |||
23 | Fisher 91902 - Cotter Pin (1/8 X 1 Inch) | 91902-FSHR | $1.70 | |||
24 | Fisher 27465 - Link Arm | 27465-FSHR | $51.63 | |||
25 | Fisher 90043 - G5 Hex Cap Screw (3/8-16 X 2 Inches) | 90043-FSHR | $3.60 | |||
27 | Fisher 27163K - MM2 Bushing Kit | 27163K-FSHR | $8.04 | |||
28 | Fisher 27177K - Step Pin Kit | 27177K-FSHR | $7.85 | |||
29 | Fisher 49522 - Clamp Loop Kit | 49522-FSHR | $9.48 | |||
30 | Fisher 27162K-1 - Stop Clip Kit | 27162K-1-FSHR | $11.96 | |||
31 | Fisher 27451 - Attach/Detach MM2 Headgear Label | 27451-FSHR | $8.88 | |||
32 | Fisher 8284K - MM Cable Boot Kit | 8284K-FSHR | $10.32 | |||
33 | Fisher 68312-1 - Front Hydraulic Cover | 68312-1-FSHR | $102.18 | |||
34 | Fisher 68313-1 - Rear Hydraulic Cover | 68313-1-FSHR | $47.22 | |||
35 | Fisher 56600K - Ram Cylinder Assembly Kit (1-1/2 X 10 Inches) | 56600K-FSHR | $238.68 | |||
36 | Fisher 49526 - Connector - 6 M O-Ring / MJIC | 49526-FSHR | $9.71 | |||
37 | Fisher 43603 - Clevis Pin And Cotter (1 X 3.75 Inch) | 43603-FSHR | $10.38 | |||
38 | Fisher 52194 - Stacking Stop Kit | 52194-FSHR | $137.49 | |||
39 | Fisher 90201 - G5 Square Neck Carriage Bolt (3/8-16 X 1 Inch) | 90201-FSHR | $4.72 | |||
40 | Fisher 91333 - GB Top Ring Hex Locknut (3/8-16) | 91333-FSHR | $5.19 |
Fisher HDX Series Diagrams

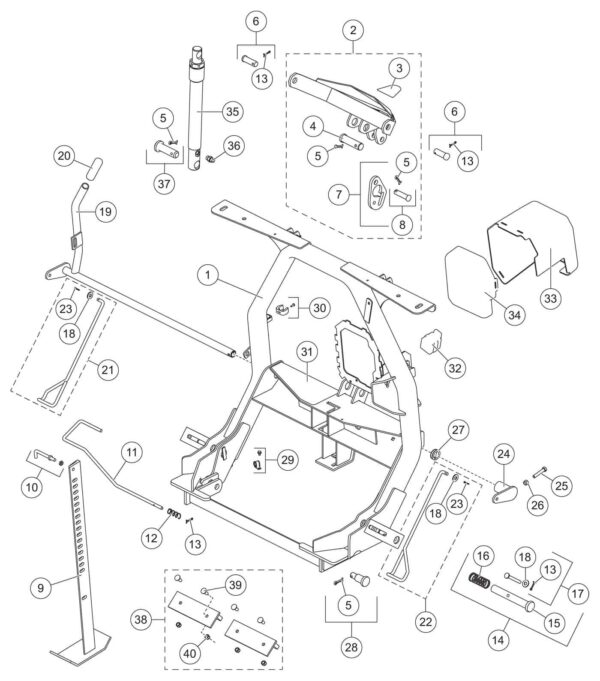

HDX Headgear Components Diagram
SKU: HDX-HC-DG
Category: Fisher HDX Series Diagrams
