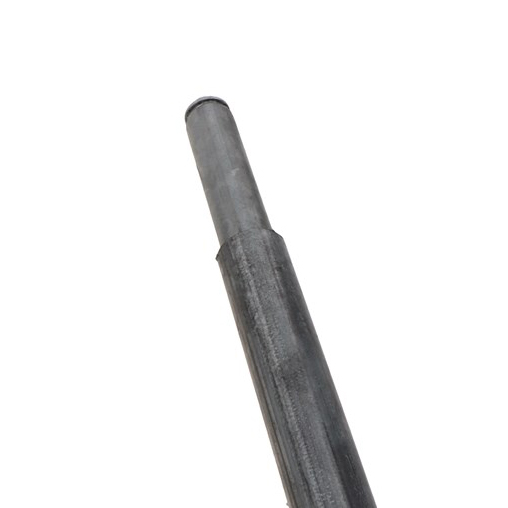

Kinedyne 1816-1 – Series F 3/4-Inch Round Shoring Bar (79 Inches Closed – 93 Inches Open)

$120.97

Request a Quote
SKU: 1816-1-KINE Category: Brand:

Kinedyne 1816-1 – Series F 3/4-Inch Round Shoring Bar (79 Inches Closed – 93 Inches Open)

Kinedyne’s Series F 3/4-Inch Round Shoring Bar with Push Button mechanism is designed to help keep everything in the back of your trailer in place throughout transit. A necessary tool for nearly every Logistic securement job, this Shoring Bar was built with the strength you need to hold your cargo steady and secure. This Bar offers you many different functions besides the obvious.

Not only does the Series F 3/4-Inch Round Shoring Bar with Push Button mechanism keep your cargo secured, but also helps organize your trailer. Instead of constantly mixing up your loads and deliveries, the Shoring Bar helps separate your cargo however you want it for optimal organization, saving you time and stress from constantly looking for whatever item you need. In addition, with everything now organized, you’ll be able to utilize more trailer space, fit more cargo in, and lessen the amount of trips you have to make.

Able to adjust from 79 to 93 Inches, the Shoring Bar is very simple to use. Made of galvanized steel tubing for extra durability, this Bar has a spring-loaded end that adjusts 5 inches. It can then make additional 4″ increments of adjustments with the easy-to-use push-button mechanism.



KINEDYNE 1816-1 SPECS:

SERIES TYPE Series F (USA)
SHORING WORKING LOAD LIMIT 500 Lbs / 230 Kgs
VERTICAL WORKING LOAD LIMIT 500 Lbs / 230 Kgs
TYPE OF BAR END FITTING Series F Round Pin 3/4-Inch (USA Applications)
SHAPE OF BAR Round
TUBE WIDTH 1.66 Inches
TUBE HEIGHT 1.66 Inches
MINIMUM LENGTH 79 Inches
MAXIMUM EXTENDED LENGTH 93 Inches
WEIGHT 14.5 Lbs / 6.6 Kgs



WHILE WE STOCK A LIMITED INVENTORY OF KINEDYNE PRODUCTS, MANY OF THEIR PRODUCTS ARE MANUFACTURED UPON ORDER AND MAY TAKE 2-4 WEEKS FOR DELIVERY. IF LEAD TIMES EXCEED THAT ESTIMATE WE WILL CONTACT THE CUSTOMER AS SOON AS WE ARE AWARE OF THE DELAY.

Weight 14.5 lbs
Dimensions 80 × 3 × 3 in
