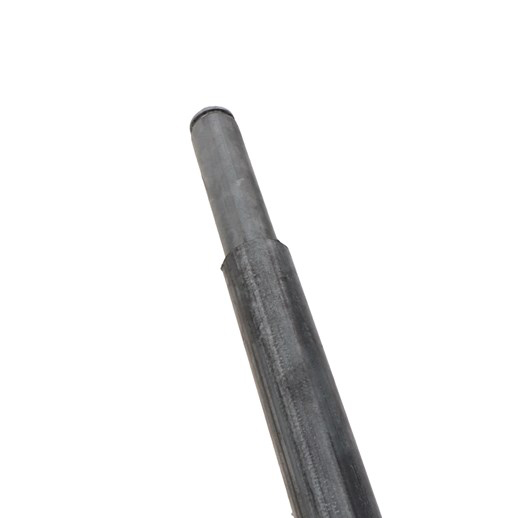

Kinedyne 1816-2 – Series F 3/4-Inch Round Shoring Bar (92 Inches Closed – 106 Inches Open)
Loose cargo can pose a potential risk, so to fix that, use Kinedyne’s Series F 3/4-Inch Round Shoring Bar with Push Button mechanism to keep your cargo under control in the back of your trailer. Whether you’re moving furniture or delivering packages, this Shoring Bar can be used to stabilize your load and hold everything in place.
Designed to keep your items steady without having them knocking into each other, the Series F 3/4-Inch Round Shoring Bar can also be used to utilize your trailer’s space to its full potential by keeping everything organized. The bar separates different items however you want, making it easier to locate exactly what you’re looking for quickly and efficiently.
This Shoring Bar has a spring-loaded end that adjusts 5 Inches and can adjust from 92 to 106 Inches while an additional 4-Inch increment of adjustment can be made thanks to the push-button mechanism. Constructed from galvanized high strength steel tubing, this Bar is the reliable method of securing your load using a Series E or A Track.
KINEDYNE 1816-2 SPECS:
SERIES TYPE | Series F (USA) |
SHORING WORKING LOAD LIMIT | 500 Lbs / 230 Kgs |
VERTICAL WORKING LOAD LIMIT | 500 Lbs / 230 Kgs |
TYPE OF BAR END FITTING | Series F Round Pin 3/4-Inch (USA Applications) |
SHAPE OF BAR | Round |
TUBE WIDTH | 1.66 Inches |
TUBE HEIGHT | 1.66 Inches |
MINIMUM LENGTH | 92 Inches |
MAXIMUM EXTENDED LENGTH | 106 Inches |
WEIGHT | 16.6 Lbs / 7.5 Kgs |
