- Decking/Vertical Rating: 2,200 lbs./1000 kgs.
- Shoring/Horizontal Rating: 1,500 lbs./681 kgs.
- Adjusts from: 97″ to 107″ for 102″ trailers
Working load limit based on evenly distributed load.

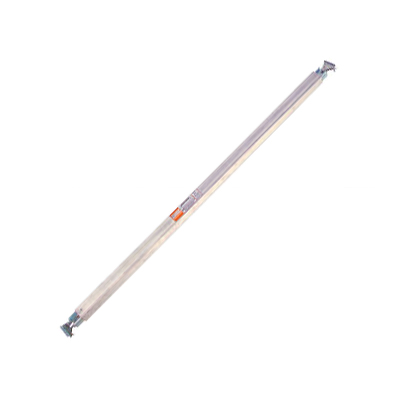

Kinedyne’s Kaptive Beams are made from extruded high strength aluminum, designed to give maximum strength at the least possible weight. Head assemblies are all steel, zinc plated and tapered for ease of operation. A heavy-duty, spring-loaded trigger mechanism automatically locks the beam into the track slots. Locking head fittings are shipped separately to prevent damage and for ease of installation. Shipped with beam and insert but no locking head.
Note:
While we do stock a small inventory of Kinedyne products, many Kinedyne items are manufactured upon order and may take 2-3 weeks for delivery.
When lead times beyond this occur we will notify the customer as soon as we are aware of the delay.
