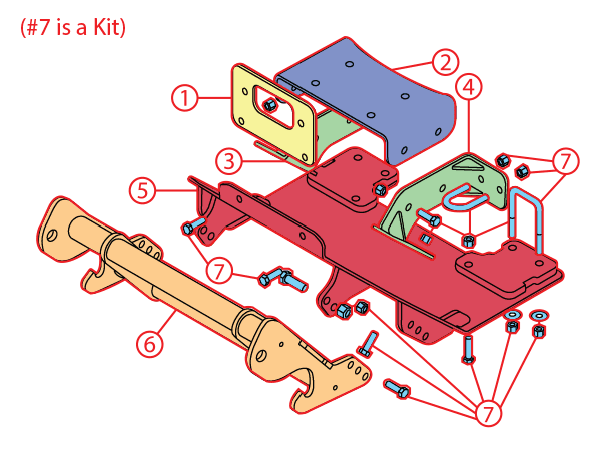

LTA12870 Diagram

SKU: LTA12870-DG Category: UTV Undercarriage Diagrams

ID	Image	Title	SKU	Price	Quantity	Add to Cart
0		BOSS LTA12870 - Full-Size UTV Undercarriage For 2014+ Honda Pioneer 700	LTA12870-BOSS	$355.97
7		BOSS HDW12879 - Undercarriage Fastener Kit (Honda Pioneer 2014+)	HDW12879-BOSS	$46.54

Honda

2014 & Newer Pioneer 700 (Full-Size)

Part Diagrams are for illustration purposes only, and may not directly represent the quantity of each designated parts’ SKU, unless it is specifically stated in the part name that the SKU is a Kit, Pack, or Box.
