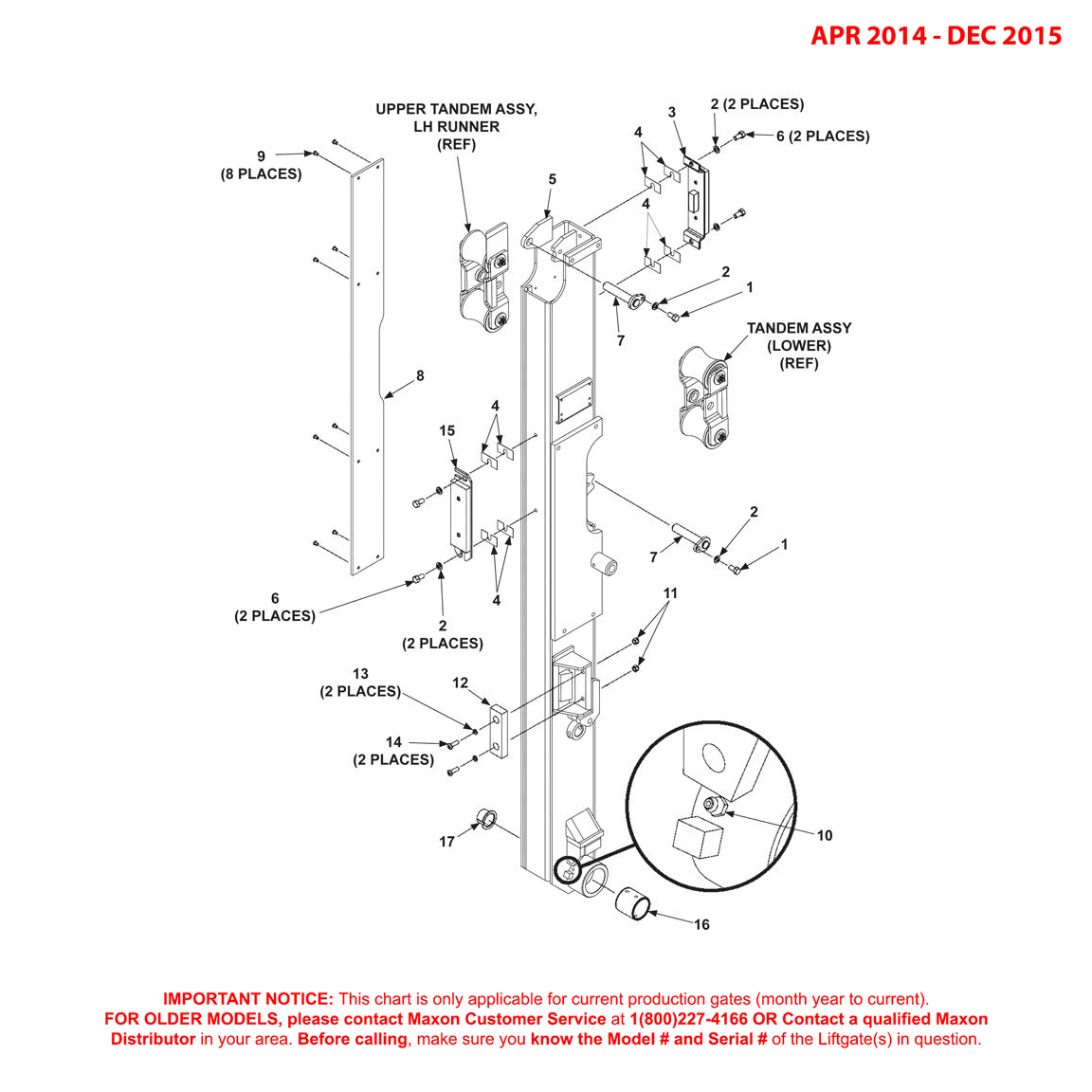

Maxon BMR-A-CS (Apr 2014 - Dec 2015) Left Hand Runner Assembly Diagram

Maxon BMR-A-CS (Apr 2014 – Dec 2015) Left Hand Runner Assembly Diagram

SKU: BMRACS-APR14-DEC15-LHRA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
17Maxon 908007-04 - Bearing Flanged 1.25 SHFT 1 Inch LGMaxon 908007-04 - Bearing Flanged 1.25 SHFT 1 Inch LG908007-04-MAXO$3.24
1Maxon 900014-12 - Screw Hex Cap 0.38-16 X .63 Inch G8 ZCMaxon 900014-12 - Screw Hex Cap 0.38-16 X .63 Inch G8 ZC900014-12-MAXO$0.74
2Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
3Maxon 263221 - Upper Pad Support AssemblyMaxon 263221 - Upper Pad Support Assembly263221-MAXO$52.82
4Maxon 263030 - SpacerMaxon 263030 - Spacer263030-MAXO$4.59
4Maxon 269677-01 - 16GA SpacerMaxon 269677-01 - 16GA Spacer269677-01-MAXO$1.77
6Maxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZCMaxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZC900014-3-MAXO$0.54
7Maxon 280067 - Arm WeldmentMaxon 280067 - Arm Weldment280067-MAXO$18.27
8Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
9Maxon 253543 - Pad .28 DIAMaxon 253543 - Pad .28 DIA253543-MAXO$69.38
10Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
11Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
12Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 HoleMaxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole225278-02-MAXO$24.86
13Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
14Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
15Maxon 263225 - Lower Pad Support AssemblyMaxon 263225 - Lower Pad Support Assembly263225-MAXO$49.19
16Maxon 908011-01 - BRG CMPST 2.25 X 2.50 X 2.13 Inch LGMaxon 908011-01 - BRG CMPST 2.25 X 2.50 X 2.13 Inch LG908011-01-MAXO$19.43
17Maxon 908007-04 - Bearing Flanged 1.25 SHFT 1 Inch LGMaxon 908007-04 - Bearing Flanged 1.25 SHFT 1 Inch LG908007-04-MAXO$3.24

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
