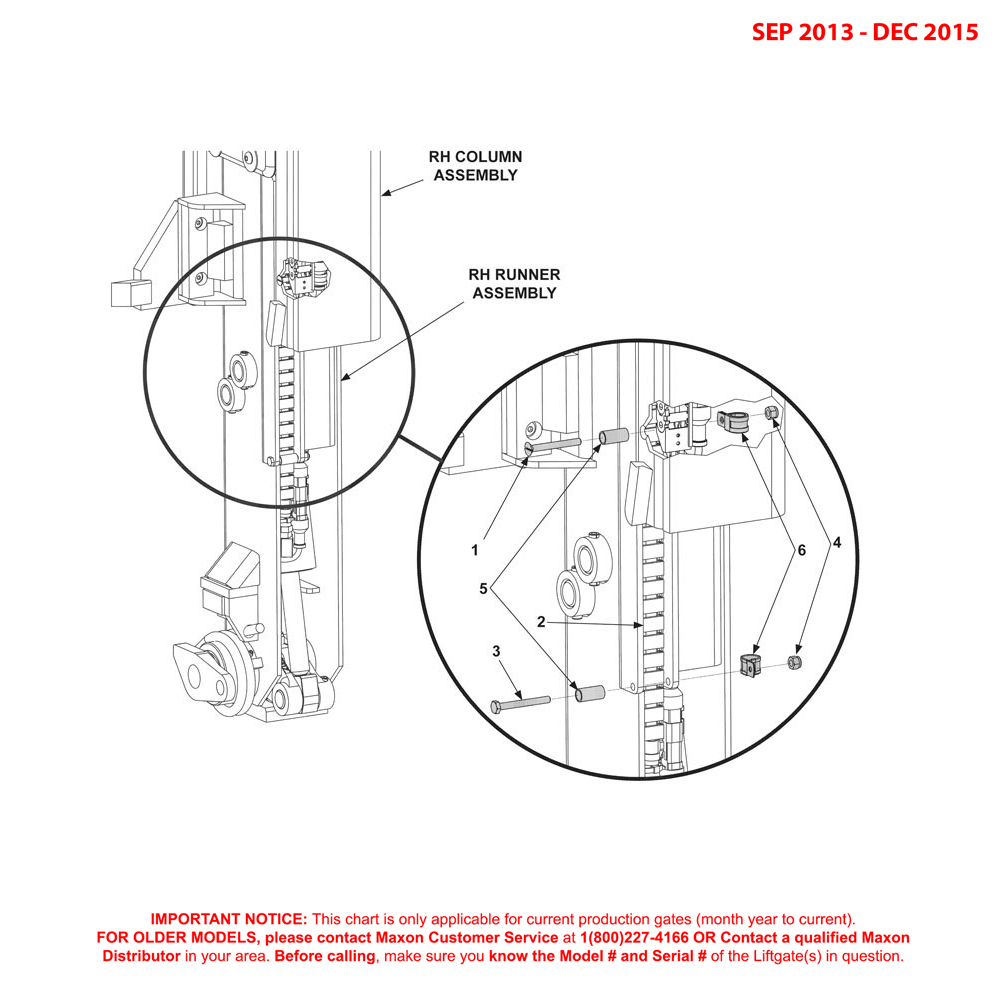

Maxon BMR-A-CS (Sep 2013 - Dec 2015) Carrier Guard Mounting Diagram

Maxon BMR-A-CS (Sep 2013 – Dec 2015) Carrier Guard Mounting Diagram

SKU: BMRACS-SEP13-DEC15-CGM-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 260299 - Screw MACH 1/4-20 X 2.25 FLSL ZCMaxon 260299 - Screw MACH 1/4-20 X 2.25 FLSL ZC260299-MAXO$0.62
3Maxon 900000-9 - Bolt HX 1/4-20 X 2-1/4 GR8 ZCMaxon 900000-9 - Bolt HX 1/4-20 X 2-1/4 GR8 ZC900000-9-MAXO$0.78
4Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
5Maxon 253621 - Bushing .50 O.D. X .049 W X 1.00LGMaxon 253621 - Bushing .50 O.D. X .049 W X 1.00LG253621-MAXO$1.50
6Maxon 214663 - Clamp #8 Rubber LoomMaxon 214663 - Clamp #8 Rubber Loom214663-MAXO$0.87

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
