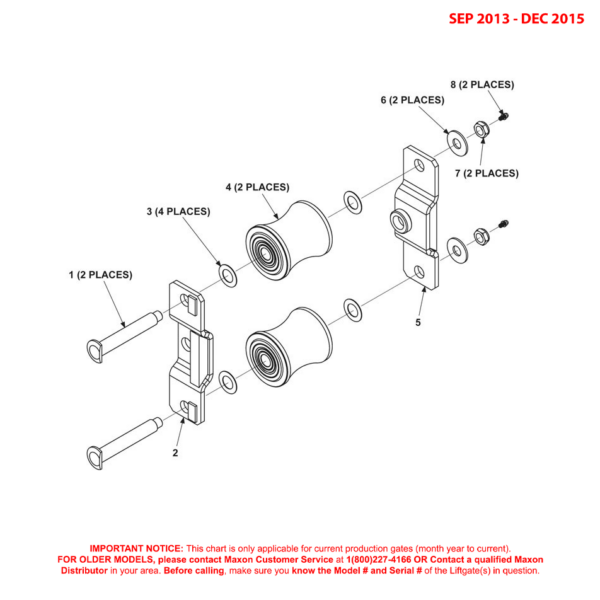

Maxon BMR-A-CS (Sep 2013 - Dec 2015) Lower Tandem Assembly With Right And Left Hand Runners Diagram

Maxon BMR-A-CS (Sep 2013 – Dec 2015) Lower Tandem Assembly With Right And Left Hand Runners Diagram

SKU: BMRACS-SEP13-DEC15-LTA-RHLH-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 268866-01 - Tandem AssemblyMaxon 268866-01 - Tandem Assembly268866-01-MAXO$262.55
1Maxon 268898-01 - Roller Axel BMRMaxon 268898-01 - Roller Axel BMR268898-01-MAXO$38.34
2Maxon 280064 - Roller Bracket Weldment Ring SideMaxon 280064 - Roller Bracket Weldment Ring Side280064-MAXO$64.56
3Maxon 261182 - Washer Flat 1.25 X .728 X .030 Inch 304Maxon 261182 - Washer Flat 1.25 X .728 X .030 Inch 304261182-MAXO$0.72
4Maxon 268899-01 - Roller Assembly Tandem BMRMaxon 268899-01 - Roller Assembly Tandem BMR268899-01-MAXO$87.93
5Maxon 280063 - Roller Bracket WeldmentMaxon 280063 - Roller Bracket Weldment280063-MAXO$55.83
6Maxon 902014 - Washer 1.38 X .56 X .093 InchMaxon 902014 - Washer 1.38 X .56 X .093 Inch902014-MAXO$0.39
7Maxon 901016-1 - Nut Hex THN HD LKG .500-20UNFMaxon 901016-1 - Nut Hex THN HD LKG .500-20UNF901016-1-MAXO$0.99
8Maxon 268264-02 - Grease Fitting Drive-In .19Maxon 268264-02 - Grease Fitting Drive-In .19268264-02-MAXO$0.89

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
