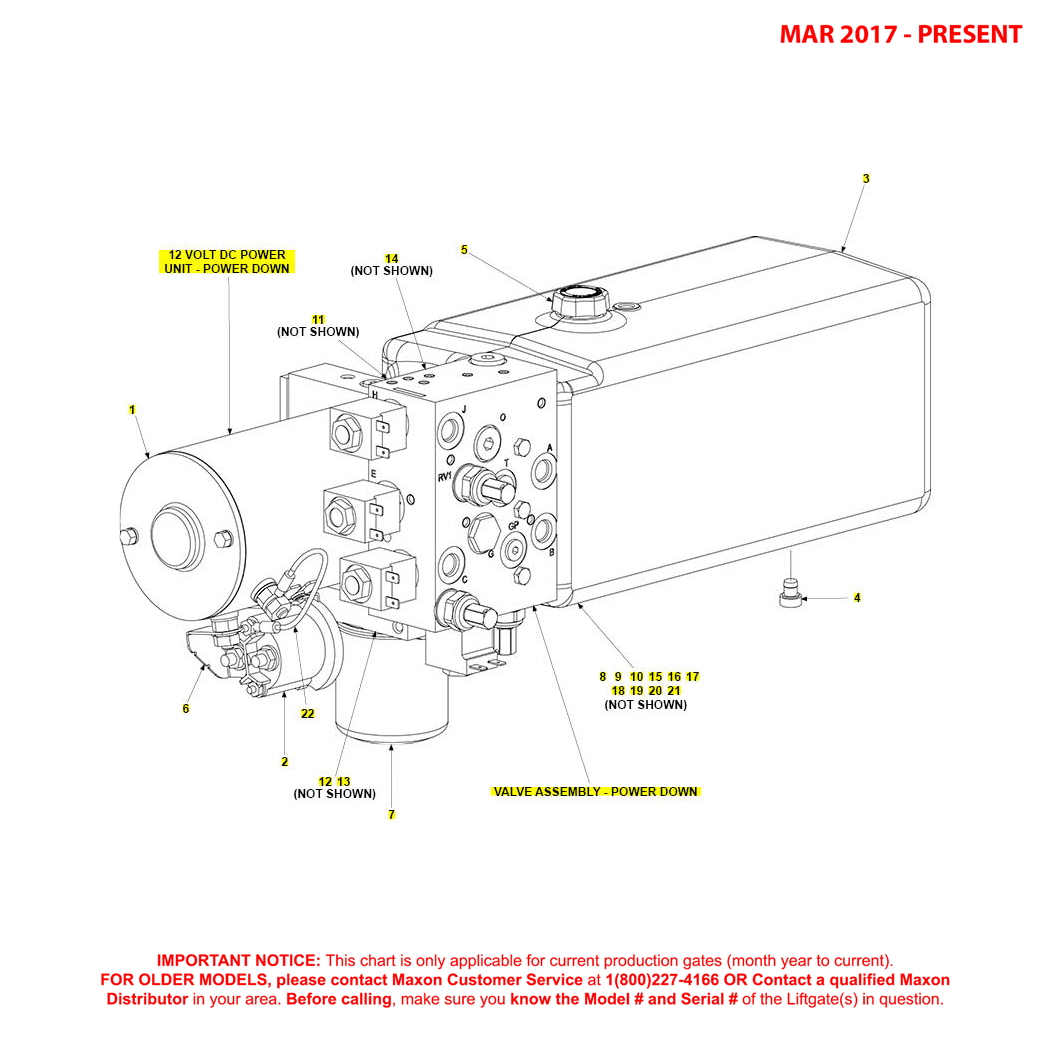

Maxon BMR-CS (Mar 2017 - Present) Bucher Hydraulics 12VDC Power Down Power Unit Diagram

Maxon BMR-CS (Mar 2017 – Present) Bucher Hydraulics 12VDC Power Down Power Unit Diagram

SKU: BMRCS-MAR17-PRES-12VDCPDPU-BUCH-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 297540-12 - 12 VDC Power Unit 203.1 BMR PDMaxon 297540-12 - 12 VDC Power Unit 203.1 BMR PD297540-12-MAXO$2,248.35
1Maxon 297552 - Motor DC 12V 4.5 Inch 2 Term LONGMaxon 297552 - Motor DC 12V 4.5 Inch 2 Term LONG297552-MAXO$939.05
2Maxon 269339 - Switch SOL ACT MTR ST 12 VDCMaxon 269339 - Switch SOL ACT MTR ST 12 VDC269339-MAXO$114.96
3Maxon 298530-01 - BMR Pump Reservoir Kit Both GD and PDMaxon 298530-01 - BMR Pump Reservoir Kit Both GD and PD298530-01-MAXO$140.72
4Maxon 287282 - Plug SAE O-Ring 9/16-18 HEX SOMaxon 287282 - Plug SAE O-Ring 9/16-18 HEX SO287282-MAXO$11.30
5Maxon 287281 - Plug RESEV Breather-FillerMaxon 287281 - Plug RESEV Breather-Filler287281-MAXO$11.78
6Maxon 286599 - Strap Motor-Colenoid ConnectingMaxon 286599 - Strap Motor-Colenoid Connecting286599-MAXO$24.27
7Maxon 297573 - Filter Element Spin-On Mini 25 MicronMaxon 297573 - Filter Element Spin-On Mini 25 Micron297573-MAXO$33.45
8Maxon 297578 - Pump AP100/2.5 EXT TANG NO CVRSMaxon 297578 - Pump AP100/2.5 EXT TANG NO CVRS297578-MAXO$356.67
9Maxon 269331 - Filter Screen M-Series SUCTMaxon 269331 - Filter Screen M-Series SUCT269331-MAXO$7.82
10Maxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPTMaxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPT290141-MAXO$11.30
11Maxon 287277 - Clam Hose Worm Gear RSV M-SERMaxon 287277 - Clam Hose Worm Gear RSV M-SER287277-MAXO$18.21
12Maxon 297565 - O-Ring 0.50 X 0.63 X 0.06 -014Maxon 297565 - O-Ring 0.50 X 0.63 X 0.06 -014297565-MAXO$0.93
13Maxon 297566 - O-Ring 0.88 X 1.00 X 0.06 -020Maxon 297566 - O-Ring 0.88 X 1.00 X 0.06 -020297566-MAXO$0.50
14Maxon 297553 - O-Ring 0.63 X 0.75 X 0.06 -016Maxon 297553 - O-Ring 0.63 X 0.75 X 0.06 -016297553-MAXO$1.70
15Maxon 299145 - Tube 90DEG 3/8 NPTF EXPD EndMaxon 299145 - Tube 90DEG 3/8 NPTF EXPD End299145-MAXO$21.56
16Maxon 297577 - Tube 90 DEG 3/8 NPTFMaxon 297577 - Tube 90 DEG 3/8 NPTF297577-MAXO$16.44
17Maxon 269328 - Cover Rear AP100 309 .375 NPTMaxon 269328 - Cover Rear AP100 309 .375 NPT269328-MAXO$64.73
18Maxon 269326 - O-Ring Shaped Rear Cover AP100Maxon 269326 - O-Ring Shaped Rear Cover AP100269326-MAXO$8.43
21Maxon 269324 - O-Ring Shaped - UP100 and UP110Maxon 269324 - O-Ring Shaped - UP100 and UP110269324-MAXO$8.43

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
