ID | Image | Title | SKU | Price | Quantity | Add to Cart |
---|---|---|---|---|---|---|
1 | Maxon 296900-01 - Interconnect Harness 6 ft L | 296900-01-MAXO | $234.57 | |||
1 | Maxon 296900-02 - Interconnect Harness 15 ft L | 296900-02-MAXO | $271.88 | |||
1 | Maxon 296900-03 - Interconnect Harness 23 ft L | 296900-03-MAXO | $309.23 | |||
1 | Maxon 296900-05 - Interconnect Harness 31 ft L | 296900-05-MAXO | $345.09 | |||
1 | Maxon 296900-06 - Interconnect Harness 39 ft L | 296900-06-MAXO | $377.57 | |||
2 | Maxon 296150-01 - Main Toggle SW Assembly GD | 296150-01-MAXO | $340.37 | |||
2 | Maxon 296150-02 - Main Toggle SW Assembly PD | 296150-02-MAXO | $448.77 | |||
3 | Maxon 295916-01 - ST and T Harness LED TO INC BMR | 295916-01-MAXO | $72.99 | |||
4 | Maxon 286268-02 - Cable Molded 240 Inch LG | 286268-02-MAXO | $74.88 | |||
5 | Maxon 286268-03 - Cable Molded 166 Inch LG | 286268-03-MAXO | $72.27 | |||
6 | Maxon 296649-01 - Flex Cable M/M CON Harness | 296649-01-MAXO | $165.95 | |||
7 | Maxon 296160-01 - Runner Toggle SW Assembly GD | 296160-01-MAXO | $150.98 | |||
7 | Maxon 296160-02 - Runner Toggle SW Assembly PD | 296160-02-MAXO | $201.14 |
BMR-CS (Oct 2016 - Present) Diagrams

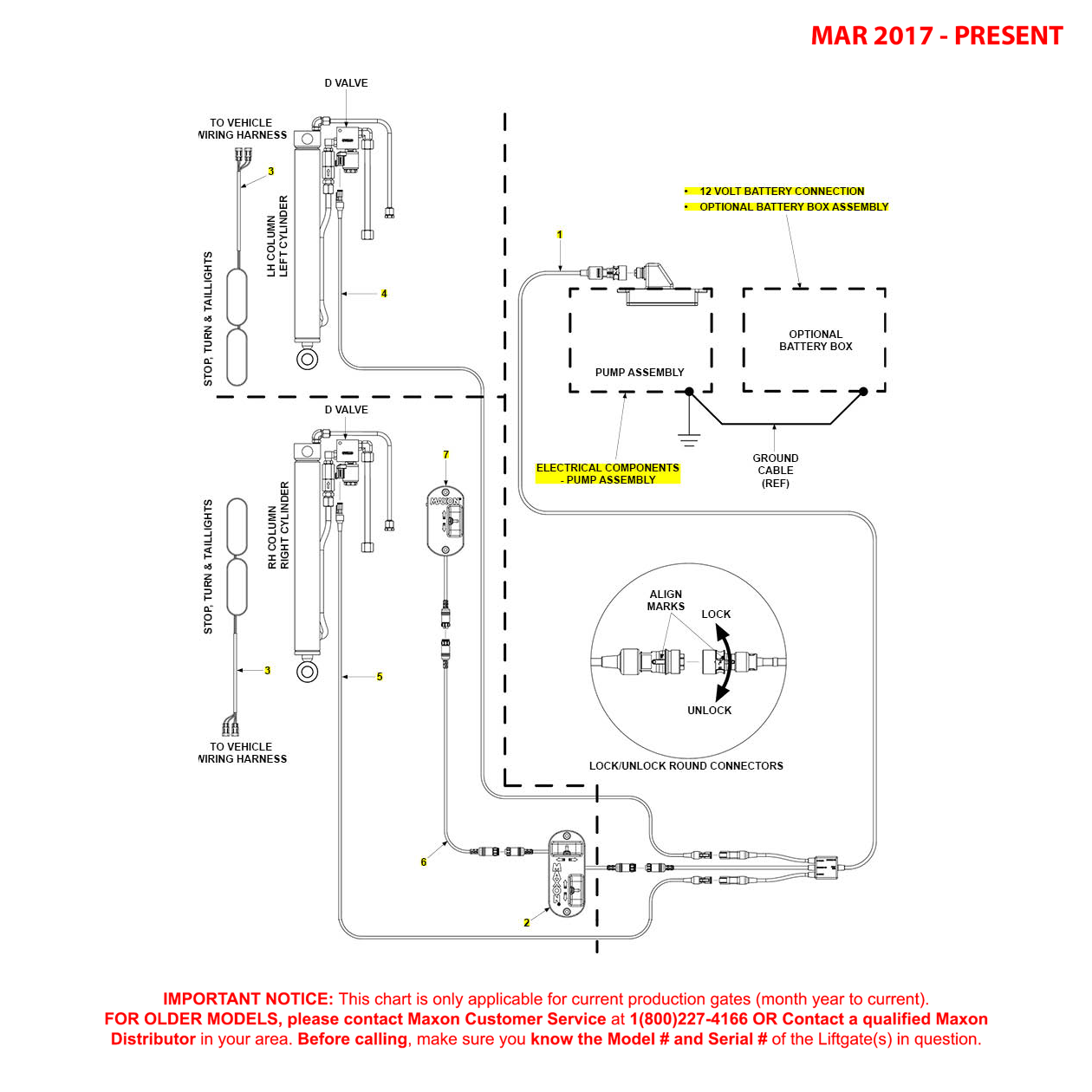

Maxon BMR-CS (Mar 2017 – Present) Bucher Hydraulics Electrical Systems Diagram
SKU: BMRCS-MAR17-PRES-ELECS-BUCH-DG
Category: BMR-CS (Oct 2016 - Present) Diagrams
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
