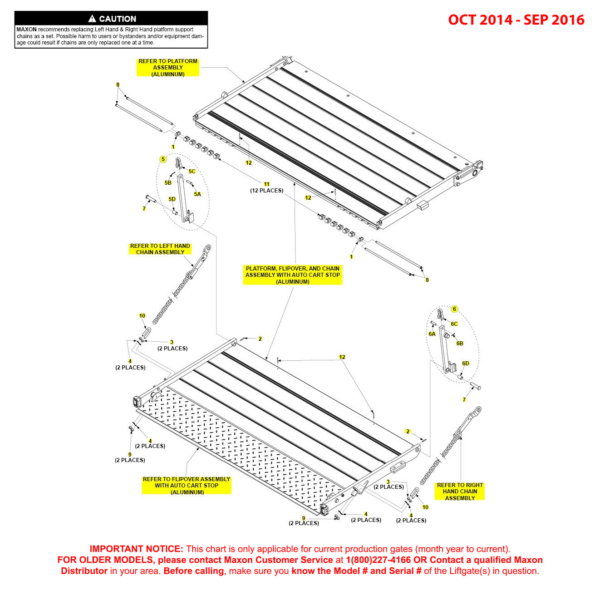

Maxon BMR-CS (Oct 2014 - Sep 2016) Aluminum Platform Flipover And Chain Assembly With Auto Cart Stop Diagram

Maxon BMR-CS (Oct 2014 – Sep 2016) Aluminum Platform Flipover And Chain Assembly With Auto Cart Stop Diagram

SKU: BMRCS-OCT14-SEP16-ALPFFOCA-ACS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288762-652MG - P/F F/O Assembly BMRB AL85X72+12MGMaxon 288762-652MG - P/F F/O Assembly BMRB AL85X72+12MG288762-652MG-MAXO$6,930.30
1Maxon 311046-11 - Link Spacer .50 LGMaxon 311046-11 - Link Spacer .50 LG311046-11-MAXO$7.44
2Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
3Maxon 901011-9 - Nut Hex Head .500-13 UNC-2BMaxon 901011-9 - Nut Hex Head .500-13 UNC-2B901011-9-MAXO$0.38
4Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
5Maxon 286880-07 - Opener Assembly BMRB 36+24 P/F LHMaxon 286880-07 - Opener Assembly BMRB 36+24 P/F LH286880-07-MAXO$207.41
5Maxon 286880-09 - Opener Assembly BMRB 42+30 P/F LHMaxon 286880-09 - Opener Assembly BMRB 42+30 P/F LH286880-09-MAXO$213.57
5Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8905136-01-MAXO$4.98
6Maxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 InchMaxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 Inch260917-05-MAXO$20.16
6Maxon 280644-01 - Anchor ShackleMaxon 280644-01 - Anchor Shackle280644-01-MAXO$15.84
6Maxon 286880-08 - Opener Assembly BMRB 36+24 P/F RHMaxon 286880-08 - Opener Assembly BMRB 36+24 P/F RH286880-08-MAXO$207.68
6Maxon 286880-10 - Opener Assembly BMRB 42+30 P/F RHMaxon 286880-10 - Opener Assembly BMRB 42+30 P/F RH286880-10-MAXO$213.83
6Maxon 905136-02 - Pin Clevis 0.500 X 1.75 Inch GR 8Maxon 905136-02 - Pin Clevis 0.500 X 1.75 Inch GR 8905136-02-MAXO$5.72
7Maxon 280195 - PinMaxon 280195 - Pin280195-MAXO$22.86
8Maxon 285963-01 - Pin Hinge Assembly 19.76Maxon 285963-01 - Pin Hinge Assembly 19.76285963-01-MAXO$56.31
9Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
10Maxon 282854-01 - U-BoltMaxon 282854-01 - U-Bolt282854-01-MAXO$6.29
11Maxon 311046-10 - Link Spacer 1 LGMaxon 311046-10 - Link Spacer 1 LG311046-10-MAXO$8.37
12Maxon 904719-17 - Pin Roll .188 X 2 Inch LG SSMaxon 904719-17 - Pin Roll .188 X 2 Inch LG SS904719-17-MAXO$0.69

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
