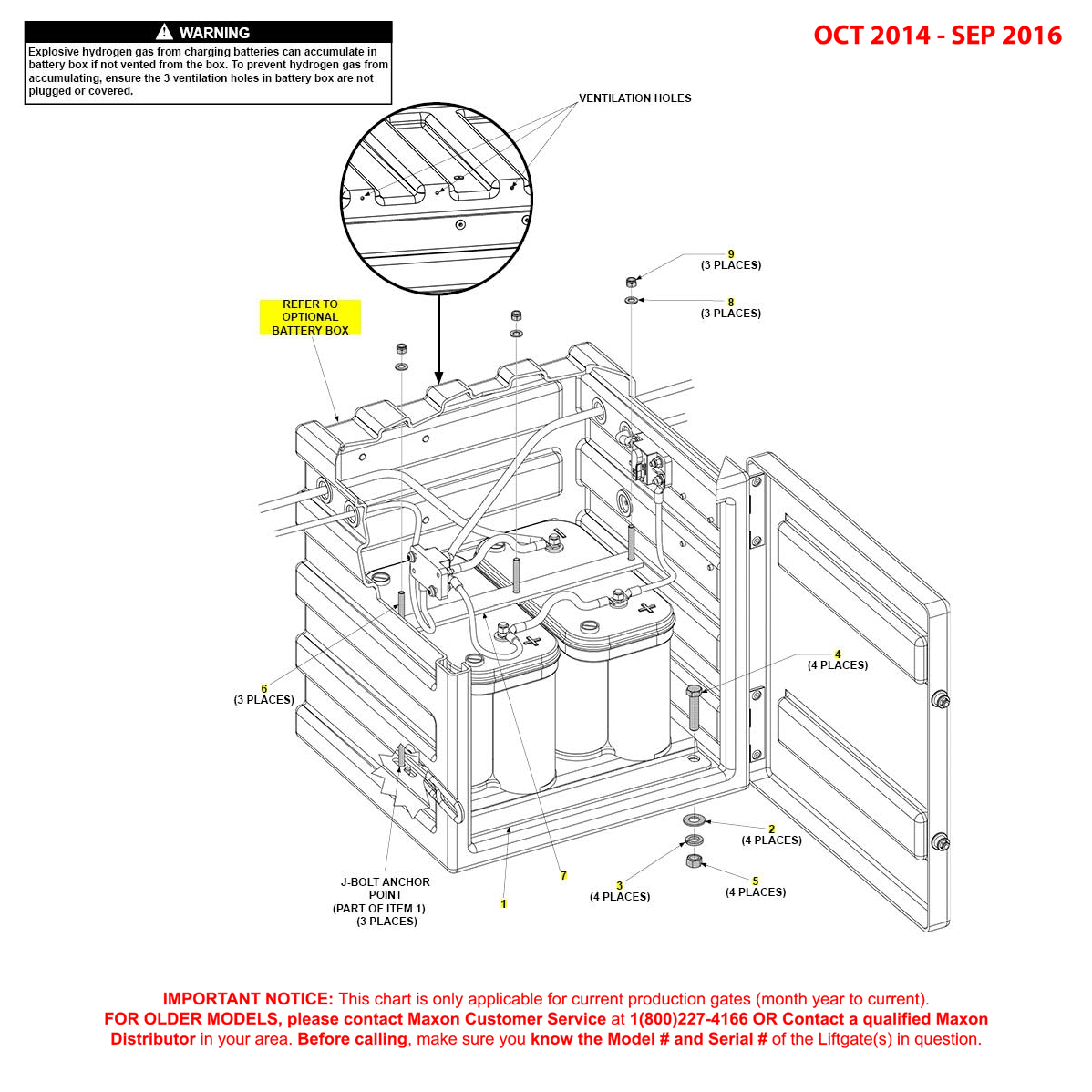

Maxon BMR-CS (Oct 2014 - Sep 2016) Optional Battery Box Assembly Diagram

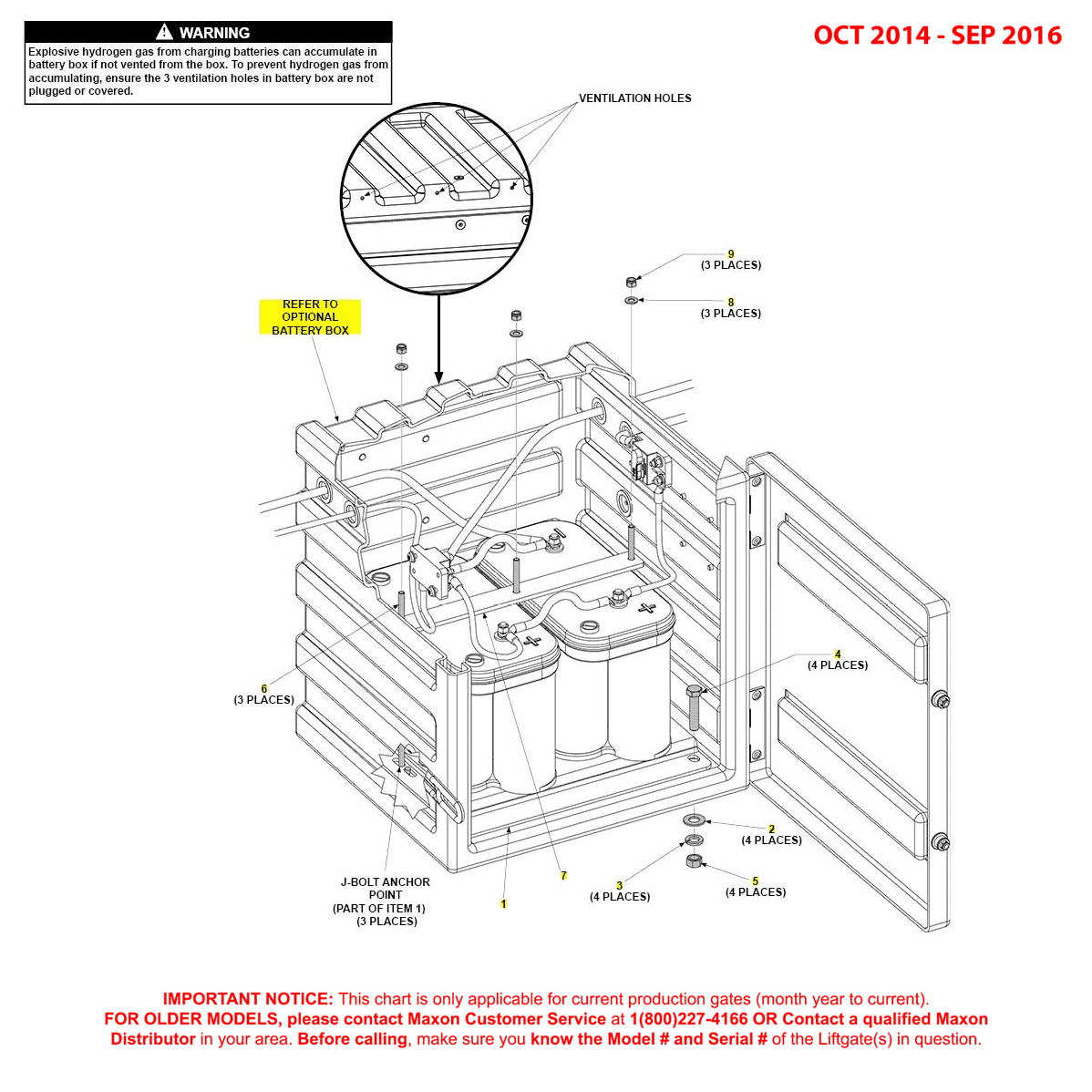

Maxon BMR-CS (Oct 2014 – Sep 2016) Optional Battery Box Assembly Diagram

SKU: BMRCS-OCT14-SEP16-OBBA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 289871-01 - Mounting Plate 2 BatteryMaxon 289871-01 - Mounting Plate 2 Battery289871-01-MAXO$88.52
2Maxon 902013-14 - Washer Flat 9/16 Inch SAE ZCMaxon 902013-14 - Washer Flat 9/16 Inch SAE ZC902013-14-MAXO$0.48
3Maxon 902011-7 - Washer Lock .563 .141 THKMaxon 902011-7 - Washer Lock .563 .141 THK902011-7-MAXO$0.26
4Maxon 900033-6 - Screw Cap .5-20 X 2.25 Inch GR8 ZCMaxon 900033-6 - Screw Cap .5-20 X 2.25 Inch GR8 ZC900033-6-MAXO$1.77
5Maxon 901011-10 - Nut Hex Head .500-20 UNF-2BMaxon 901011-10 - Nut Hex Head .500-20 UNF-2B901011-10-MAXO$0.44
6Maxon 289872-01 - Battery Tie Down J-Bolt 5/16Maxon 289872-01 - Battery Tie Down J-Bolt 5/16289872-01-MAXO$4.26
7Maxon 289874-01 - Battery Strap 2 BatteryMaxon 289874-01 - Battery Strap 2 Battery289874-01-MAXO$17.73
8Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
9Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SSMaxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS903106-10-MAXO$0.35

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
