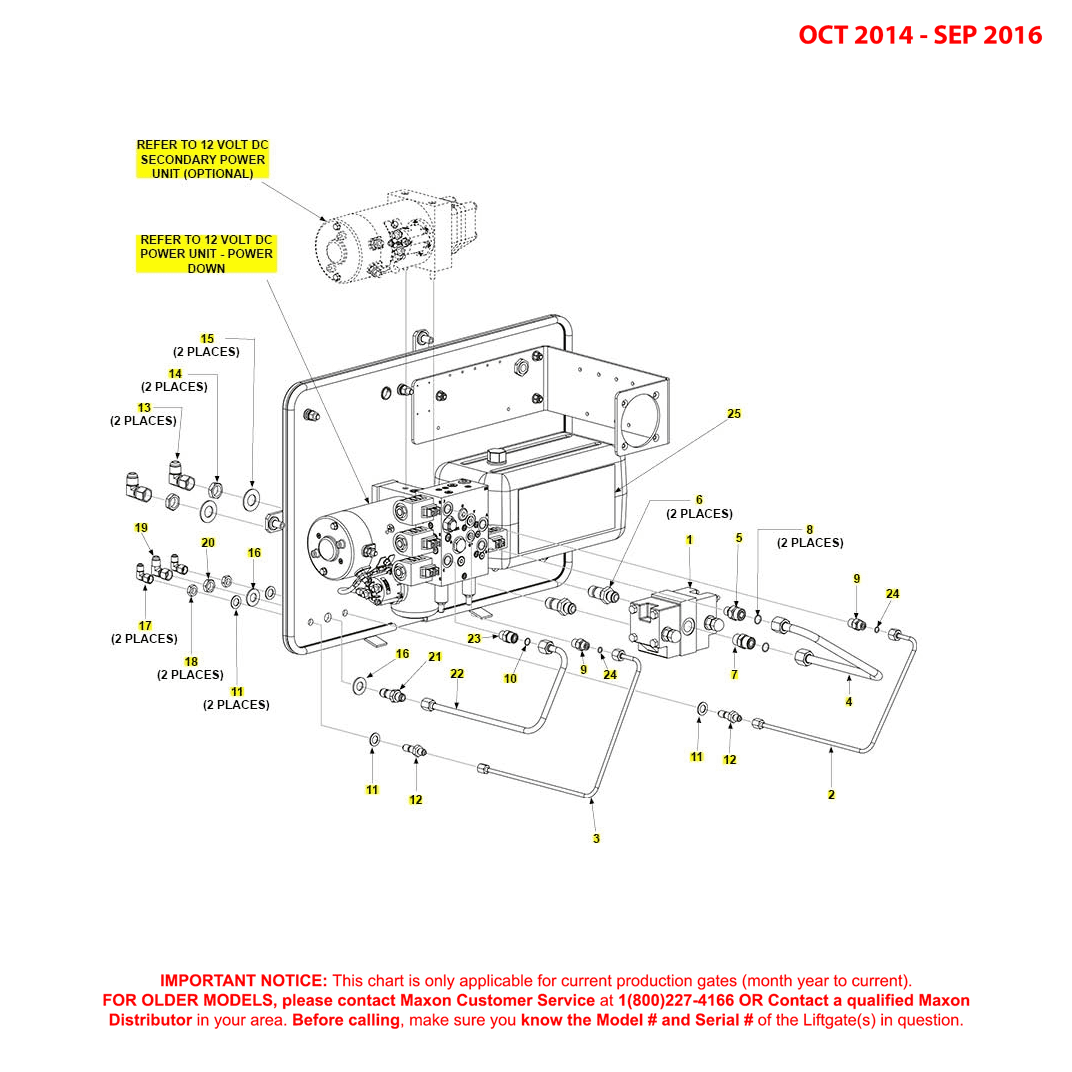

Maxon BMR-CS (Oct 2014 - Sep 2016) Power Down Pump Assembly Diagram

Maxon BMR-CS (Oct 2014 – Sep 2016) Power Down Pump Assembly Diagram

SKU: BMRCS-OCT14-SEP16-PDPA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 253513 - Flow DividerMaxon 253513 - Flow Divider253513-MAXO$651.51
2Maxon 287665-01 - F/S Tube Assembly .25Maxon 287665-01 - F/S Tube Assembly .25287665-01-MAXO$35.94
3Maxon 287664-01 - F/S Tube Assembly .25Maxon 287664-01 - F/S Tube Assembly .25287664-01-MAXO$35.94
4Maxon 287667-01 - F/S Tube Assembly (0.50)Maxon 287667-01 - F/S Tube Assembly (0.50)287667-01-MAXO$31.58
5Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)906762-01-MAXO$5.45
6Maxon 261461 - Union BLKHD SAE37DEG Flare TWMaxon 261461 - Union BLKHD SAE37DEG Flare TW261461-MAXO$25.67
7Maxon 905173-02 - Connector STR ORFS/ORB #8Maxon 905173-02 - Connector STR ORFS/ORB #8905173-02-MAXO$4.08
8Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
9Maxon 905179 - Connector F/S #4 O-Ring #6 M-MMaxon 905179 - Connector F/S #4 O-Ring #6 M-M905179-MAXO$14.10
10Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
12Maxon 905096 - ST Union Fitting Bulkhead M JIC#4Maxon 905096 - ST Union Fitting Bulkhead M JIC#4905096-MAXO$39.57
13Maxon 260120 - Elbow 90DEG JIC#8M-JIC#8FMaxon 260120 - Elbow 90DEG JIC#8M-JIC#8F260120-MAXO$22.38
14Maxon 261462 - Nut BLKHD SAE37DEG Flare TwinMaxon 261462 - Nut BLKHD SAE37DEG Flare Twin261462-MAXO$5.37
15Maxon 902000-20 - Flat Washer - .750 .090 Inch THKMaxon 902000-20 - Flat Washer - .750 .090 Inch THK902000-20-MAXO$1.31
16Maxon 902013-14 - Washer Flat 9/16 Inch SAE ZCMaxon 902013-14 - Washer Flat 9/16 Inch SAE ZC902013-14-MAXO$0.48
17Maxon 905027 - Elbow SW Nut #4 SAE 37D M-FMaxon 905027 - Elbow SW Nut #4 SAE 37D M-F905027-MAXO$6.00
18Maxon 905085 - Nut Bulkhead JIC #4Maxon 905085 - Nut Bulkhead JIC #4905085-MAXO$2.13
19Maxon 905154 - Elbow 90Degree SAE 37DEG JIC#6 M-JIC#6FMaxon 905154 - Elbow 90Degree SAE 37DEG JIC#6 M-JIC#6F905154-MAXO$21.54
20Maxon 905086 - Nut Bulkhead JIC #6Maxon 905086 - Nut Bulkhead JIC #6905086-MAXO$2.45
21Maxon 905100 - ST Union Fitting Bulkhead M JIC#6Maxon 905100 - ST Union Fitting Bulkhead M JIC#6905100-MAXO$19.74
22Maxon 287666-01 - F/S Tube Assembly .38Maxon 287666-01 - F/S Tube Assembly .38287666-01-MAXO$31.68
23Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
24Maxon 906712-01 - Tube End O-Ring #4 1/4 ORFSMaxon 906712-01 - Tube End O-Ring #4 1/4 ORFS906712-01-MAXO$1.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
