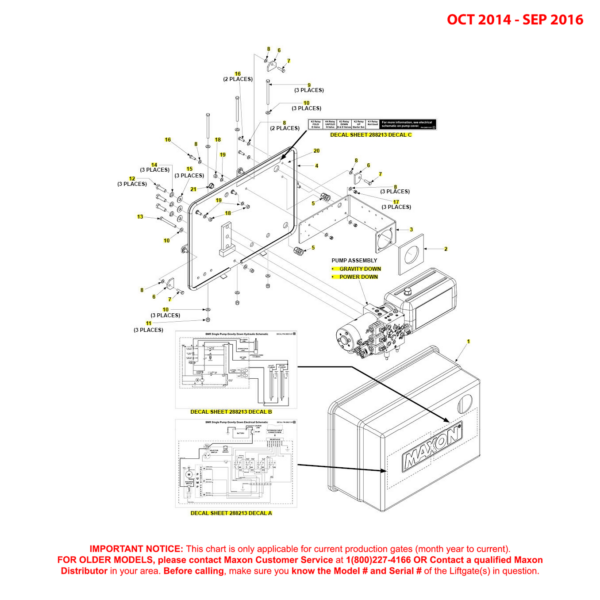

Maxon BMR-CS (Oct 2014 - Sep 2016) Pump Cover And Mounting Plate Assembly Diagram

Maxon BMR-CS (Oct 2014 – Sep 2016) Pump Cover And Mounting Plate Assembly Diagram

SKU: BMRCS-OCT14-SEP16-PCMPA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269575-02 - Cover BMR Pump LG SWMaxon 269575-02 - Cover BMR Pump LG SW269575-02-MAXO$178.64
2Maxon 289701-01 - BMR Pump Switch SealMaxon 289701-01 - BMR Pump Switch Seal289701-01-MAXO$19.47
6Maxon 281062-03 - Flat Holder 1.56 LG GALVMaxon 281062-03 - Flat Holder 1.56 LG GALV281062-03-MAXO$6.03
7Maxon 901602-07 - Bolt Hex .313-18 X 1.25 Inch 18-8 SSMaxon 901602-07 - Bolt Hex .313-18 X 1.25 Inch 18-8 SS901602-07-MAXO$0.86
8Maxon 903443-07 - Washer SAE Flat .31 ZCMaxon 903443-07 - Washer SAE Flat .31 ZC903443-07-MAXO$0.08
9Maxon 900014-16 - Screw Hex Cap 0.38-16 X 5 Inch G8 ZCMaxon 900014-16 - Screw Hex Cap 0.38-16 X 5 Inch G8 ZC900014-16-MAXO$2.76
10Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
11Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
12Maxon 900035-4 - Screw Cap HXHD .5-13 UNC-2A 1.75 InchMaxon 900035-4 - Screw Cap HXHD .5-13 UNC-2A 1.75 Inch900035-4-MAXO$1.28
13Maxon 900014-13 - Screw Hex Cap .38-16 X 3.5 Inch G8 ZCMaxon 900014-13 - Screw Hex Cap .38-16 X 3.5 Inch G8 ZC900014-13-MAXO$1.55
15Maxon 903409-05 - Washer - FEND .53 X 1.25 Inch OD SSMaxon 903409-05 - Washer - FEND .53 X 1.25 Inch OD SS903409-05-MAXO$0.35
17Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SSMaxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS903106-10-MAXO$0.35
18Maxon 901011-5 - Nut Hex Head .375-16 UNC-2BMaxon 901011-5 - Nut Hex Head .375-16 UNC-2B901011-5-MAXO$0.20
20Maxon 295741-01G - Pump Mount Plate Weldment GALVMaxon 295741-01G - Pump Mount Plate Weldment GALV295741-01G-MAXO$593.04
21Maxon 908081-04 - Plug Nylon For .88 DIA HoleMaxon 908081-04 - Plug Nylon For .88 DIA Hole908081-04-MAXO$0.57

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
