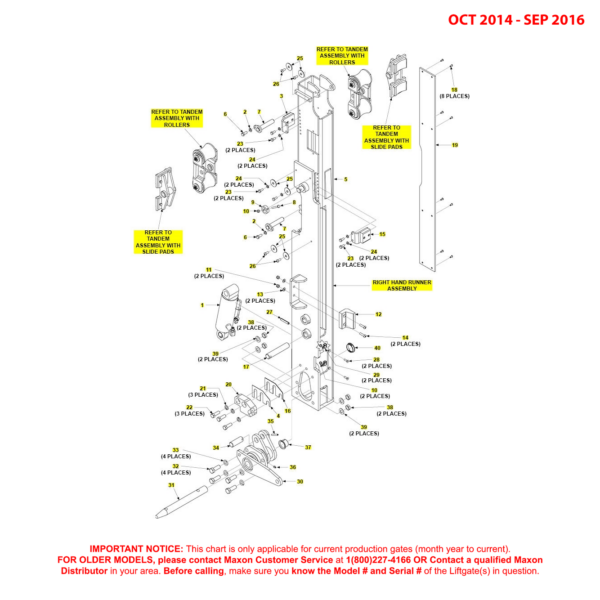

Maxon BMR-CS (Oct 2014 - Sep 2016) Right Hand Runner Assembly Diagram

Maxon BMR-CS (Oct 2014 – Sep 2016) Right Hand Runner Assembly Diagram

SKU: BMRCS-OCT14-SEP16-RHRA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286325-01G-100 - Runner Assembly BMR RH GALV W/Slide PadMaxon 286325-01G-100 - Runner Assembly BMR RH GALV W/Slide Pad286325-01G-100-MAXO$4,460.97
0Maxon 286325-01G - Runner Assembly BMR RH GALVMaxon 286325-01G - Runner Assembly BMR RH GALV286325-01G-MAXO$3,252.60
1Maxon 286281-01 - Cylinder Assembly D/ACT 2.75B X 5.25 STR X 1.13RMaxon 286281-01 - Cylinder Assembly D/ACT 2.75B X 5.25 STR X 1.13R286281-01-MAXO$1,039.35
2Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
4Maxon 286759-02 - Spacer SST .03 ThickMaxon 286759-02 - Spacer SST .03 Thick286759-02-MAXO$2.91
5Maxon 286324-01G - Runner Weldment RH GALVMaxon 286324-01G - Runner Weldment RH GALV286324-01G-MAXO$1,694.55
6Maxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SSMaxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SS900764-05-MAXO$0.59
7Maxon 280067 - Arm WeldmentMaxon 280067 - Arm Weldment280067-MAXO$18.27
8Maxon 900004-8 - Screw Cap 1/4-20 X 2 Inch GR8 ZCMaxon 900004-8 - Screw Cap 1/4-20 X 2 Inch GR8 ZC900004-8-MAXO$0.53
9Maxon 269227-01 - Pin CollarMaxon 269227-01 - Pin Collar269227-01-MAXO$10.41
10Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
11Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SSMaxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS903106-10-MAXO$0.35
12Maxon 288940-01 - Bumper Platform StopMaxon 288940-01 - Bumper Platform Stop288940-01-MAXO$21.44
13Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
14Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
15Maxon 287434-02 - Pad Assembly Bottom RH RunnerMaxon 287434-02 - Pad Assembly Bottom RH Runner287434-02-MAXO$41.76
16Maxon 286759-01 - Spacer SST .06 ThickMaxon 286759-01 - Spacer SST .06 Thick286759-01-MAXO$7.91
17Maxon 268068-05 - Pin SST 1 DIA X 5.38 Inch LGMaxon 268068-05 - Pin SST 1 DIA X 5.38 Inch LG268068-05-MAXO$35.61
18Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565904005-2-MAXO$0.72
19Maxon 253543 - Pad .28 DIAMaxon 253543 - Pad .28 DIA253543-MAXO$69.38
20Maxon 286226-02 - Holder Runner RH Casting BlackMaxon 286226-02 - Holder Runner RH Casting Black286226-02-MAXO$171.06
21Maxon 902011-6 - Washer Lock 1/2 X 1/8 Inch ZCMaxon 902011-6 - Washer Lock 1/2 X 1/8 Inch ZC902011-6-MAXO$0.26
22Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50900035-3-MAXO$1.28
23Maxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SSMaxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SS901602-04-MAXO$0.32
24Maxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID InchMaxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID Inch902019-4-MAXO$0.12
25Maxon 902008 - Washer Fender 1.5 X 13/32 X 1/16SSMaxon 902008 - Washer Fender 1.5 X 13/32 X 1/16SS902008-MAXO$0.78
27Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
28Maxon 900711-04 - Screw SOC FL .25-20 X .88 Inch SSMaxon 900711-04 - Screw SOC FL .25-20 X .88 Inch SS900711-04-MAXO$0.32
29Maxon 224006 - Clamp #6 Rubber LoomMaxon 224006 - Clamp #6 Rubber Loom224006-MAXO$1.34
30Maxon 286315-01 - Arm P/F FoldingMaxon 286315-01 - Arm P/F Folding286315-01-MAXO$858.50
31Maxon 280103 - Pin X 13 Inch Stainless SteelMaxon 280103 - Pin X 13 Inch Stainless Steel280103-MAXO$201.12
32Maxon 900055-03 - Screw Hex Head .625-11UNC X 1.75 InchMaxon 900055-03 - Screw Hex Head .625-11UNC X 1.75 Inch900055-03-MAXO$1.71
33Maxon 902011-8 - Washer Lock .625 .156 Inch THKMaxon 902011-8 - Washer Lock .625 .156 Inch THK902011-8-MAXO$0.30
34Maxon 286269-01 - Pin SST 1 DIA X 2.78LGMaxon 286269-01 - Pin SST 1 DIA X 2.78LG286269-01-MAXO$16.83
35Maxon 905033-4 - Roll Pin .250 O.D. X 1.75 Inch LGMaxon 905033-4 - Roll Pin .250 O.D. X 1.75 Inch LG905033-4-MAXO$0.36
36Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
37Maxon 908007-06 - Bearing Flanged 1.25 SHFT .75 Inch LGMaxon 908007-06 - Bearing Flanged 1.25 SHFT .75 Inch LG908007-06-MAXO$3.62
39Maxon 902000-18 - Flat Washer .625 .063 THKMaxon 902000-18 - Flat Washer .625 .063 THK902000-18-MAXO$0.38
40Maxon 908081-09 - Plug Nylon For 1.75 DIA HoleMaxon 908081-09 - Plug Nylon For 1.75 DIA Hole908081-09-MAXO$0.90

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
