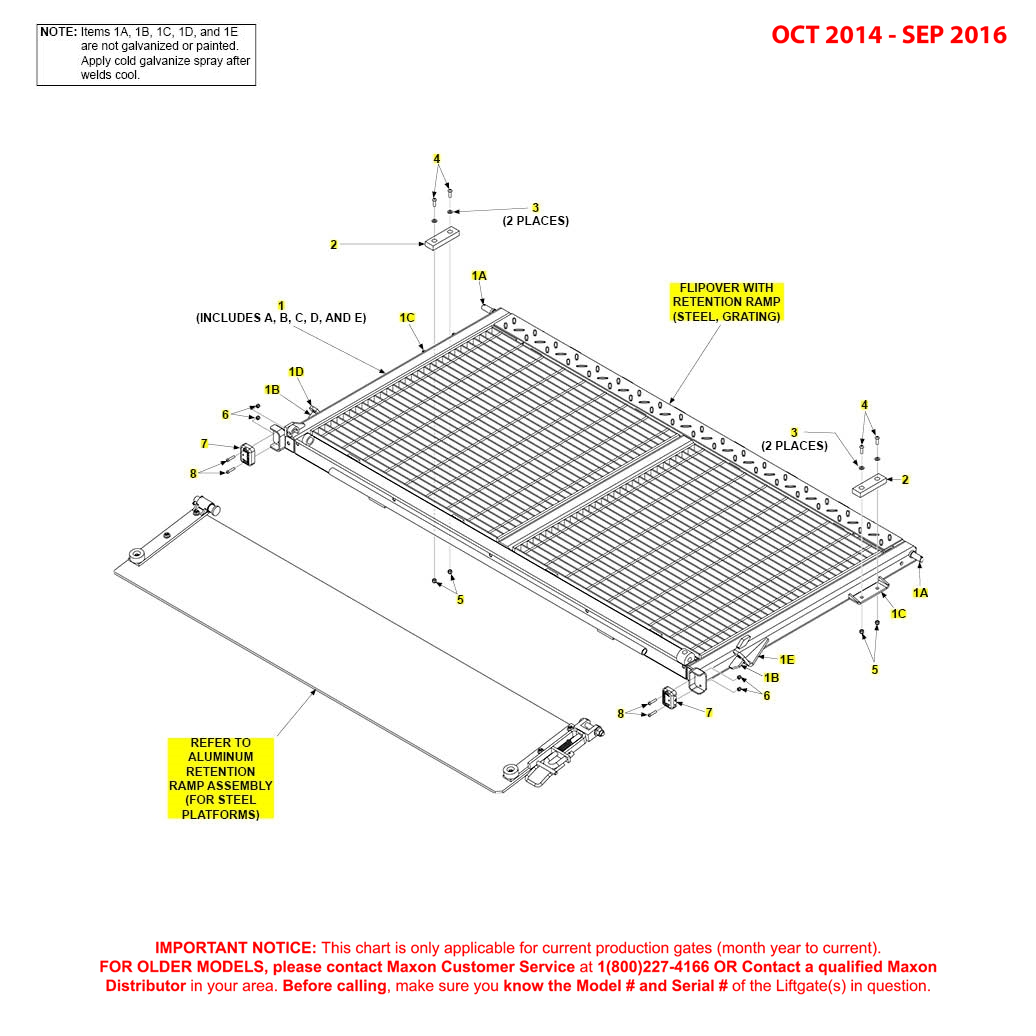

Maxon BMR-CS (Oct 2014 - Sep 2016) Steel Platform Flipover And Chain Assembly With Aluminum Retention Ramp Diagram From ITEParts.com

ID	Title	SKU	Price
0	Maxon 288961-613g - F/O ARR Assembly BMRBW66G ST85X42	288961-613G-MAXO	$5,712.53
1	Maxon 280194 - Pin Chain Support	280194-MAXO	$18.12
1	Maxon 287579-01 - Bracket Bumper Holder	287579-01-MAXO	$57.93
1	Maxon 288944-02 - Bracket U-Bolt Holder RH F/O	288944-02-MAXO	$10.25
1	Maxon 288962-613G - F/O Weldment BMRB66G ST85X42	288962-613G-MAXO	$3,729.38
2	Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole	225278-02-MAXO	$24.86
3	Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZC	902013-10-MAXO	$0.18
4	Maxon 900001-3 - Screw BUT 5/16-18 X 1 Inch Alloy	900001-3-MAXO	$1.83
5	Maxon 901001 - Nut - Nylon - 5/16-18 Zinc	901001-MAXO	$0.18
6	Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS	903137-01-MAXO	$0.48
8	Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS	900719-08-MAXO	$0.51

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
