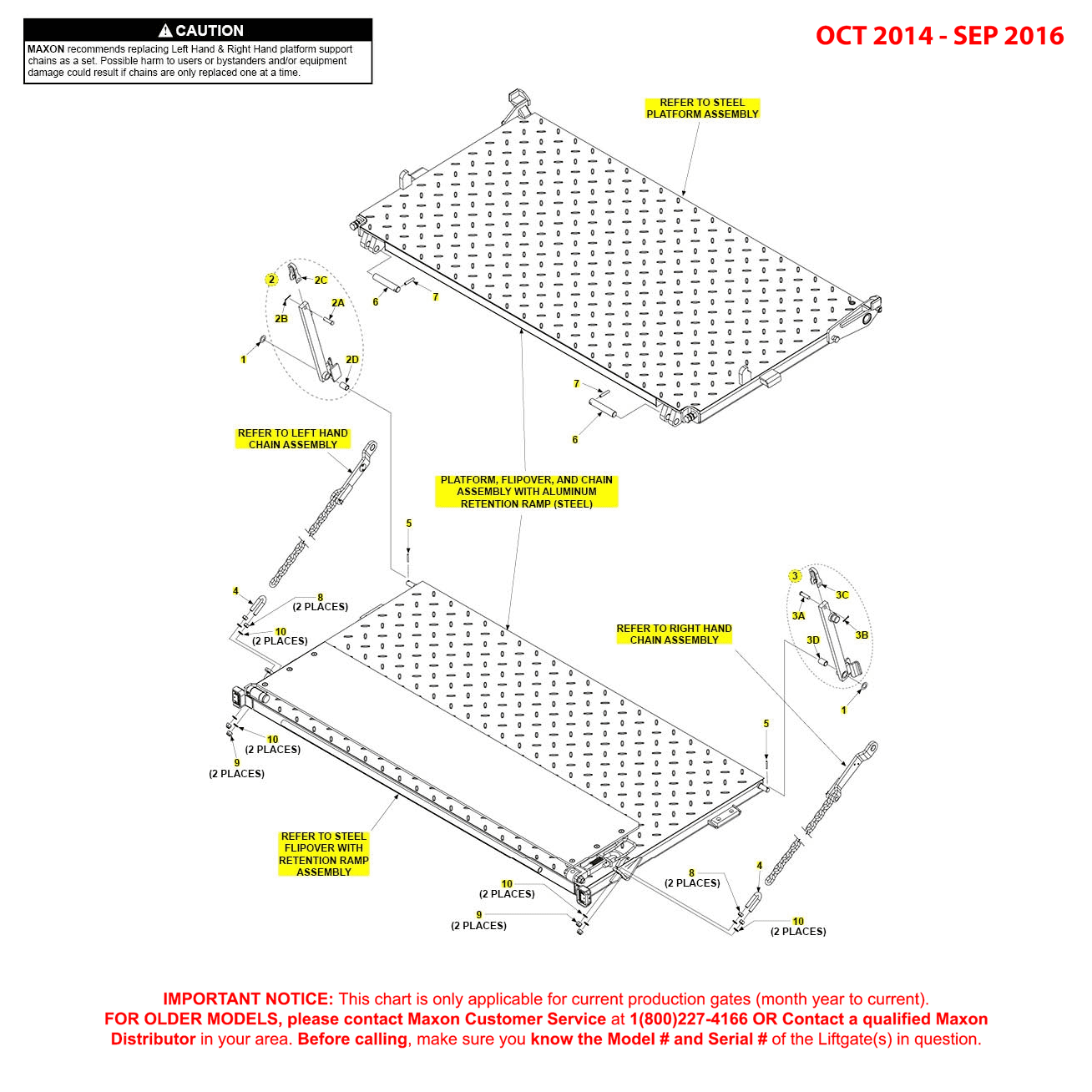

Maxon BMR-CS (Oct 2014 - Sep 2016) Steel Platform Flipover And Chain Assembly With Aluminum Retention Ramp Diagram

Maxon BMR-CS (Oct 2014 – Sep 2016) Steel Platform Flipover And Chain Assembly With Aluminum Retention Ramp Diagram

SKU: BMRCS-OCT14-SEP16-SPFFOCA-ALRR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286820-611G - P/F Assembly BMRW66G ST 85 X 30+30+16Maxon 286820-611G - P/F Assembly BMRW66G ST 85 X 30+30+16286820-611G-MAXO$7,687.88
0Maxon 286820-612G - P/F Assembly BMRW66G ST85X36+36+16Maxon 286820-612G - P/F Assembly BMRW66G ST85X36+36+16286820-612G-MAXO$9,989.85
0Maxon 286820-613G - P/F Assembly BMRW66G ST85X42+42+16Maxon 286820-613G - P/F Assembly BMRW66G ST85X42+42+16286820-613G-MAXO$10,924.88
0Maxon 286820-615G - P/F Assembly BMRW66G ST85X42+30+16Maxon 286820-615G - P/F Assembly BMRW66G ST85X42+30+16286820-615G-MAXO$7,957.95
1Maxon 261685 - Washer 1-1/4 X 3/4 X .030 Inch SSMaxon 261685 - Washer 1-1/4 X 3/4 X .030 Inch SS261685-MAXO$1.13
2Maxon 286880-01 - Opener Assembly BMRB 30+30 P/F LHMaxon 286880-01 - Opener Assembly BMRB 30+30 P/F LH286880-01-MAXO$213.99
2Maxon 286880-03 - Opener Assembly BMRB 36+36 P/F LHMaxon 286880-03 - Opener Assembly BMRB 36+36 P/F LH286880-03-MAXO$215.91
2Maxon 286880-05 - Opener Assembly BMRB 42+42 P/F LHMaxon 286880-05 - Opener Assembly BMRB 42+42 P/F LH286880-05-MAXO$214.32
2Maxon 286880-07 - Opener Assembly BMRB 36+24 P/F LHMaxon 286880-07 - Opener Assembly BMRB 36+24 P/F LH286880-07-MAXO$207.41
2Maxon 286880-09 - Opener Assembly BMRB 42+30 P/F LHMaxon 286880-09 - Opener Assembly BMRB 42+30 P/F LH286880-09-MAXO$213.57
3Maxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 InchMaxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 Inch260917-05-MAXO$20.16
3Maxon 280644-01 - Anchor ShackleMaxon 280644-01 - Anchor Shackle280644-01-MAXO$15.84
3Maxon 286880-02 - Opener Assembly BMRB 30+30 P/F RHMaxon 286880-02 - Opener Assembly BMRB 30+30 P/F RH286880-02-MAXO$214.26
3Maxon 286880-04 - Opener Assembly BMRB 36+36 P/F RHMaxon 286880-04 - Opener Assembly BMRB 36+36 P/F RH286880-04-MAXO$216.18
3Maxon 286880-06 - Opener Assembly BMRB 42+42 P/F RHMaxon 286880-06 - Opener Assembly BMRB 42+42 P/F RH286880-06-MAXO$216.18
3Maxon 286880-08 - Opener Assembly BMRB 36+24 P/F RHMaxon 286880-08 - Opener Assembly BMRB 36+24 P/F RH286880-08-MAXO$207.68
3Maxon 286880-10 - Opener Assembly BMRB 42+30 P/F RHMaxon 286880-10 - Opener Assembly BMRB 42+30 P/F RH286880-10-MAXO$213.83
3Maxon 905136-02 - Pin Clevis 0.500 X 1.75 Inch GR 8Maxon 905136-02 - Pin Clevis 0.500 X 1.75 Inch GR 8905136-02-MAXO$5.72
4Maxon 282854-01 - U-BoltMaxon 282854-01 - U-Bolt282854-01-MAXO$6.29
5Maxon 905015-3 - Pin Roll .188 X 1.5 Inch ZincMaxon 905015-3 - Pin Roll .188 X 1.5 Inch Zinc905015-3-MAXO$0.24
6Maxon 268068-03 - Pin SST 1 X 5.5 Inch LGMaxon 268068-03 - Pin SST 1 X 5.5 Inch LG268068-03-MAXO$47.49
7Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
8Maxon 901011-9 - Nut Hex Head .500-13 UNC-2BMaxon 901011-9 - Nut Hex Head .500-13 UNC-2B901011-9-MAXO$0.38
9Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
10Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
