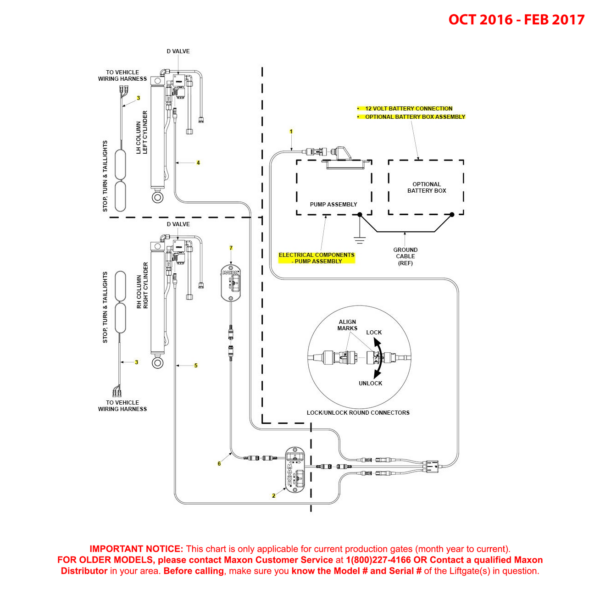

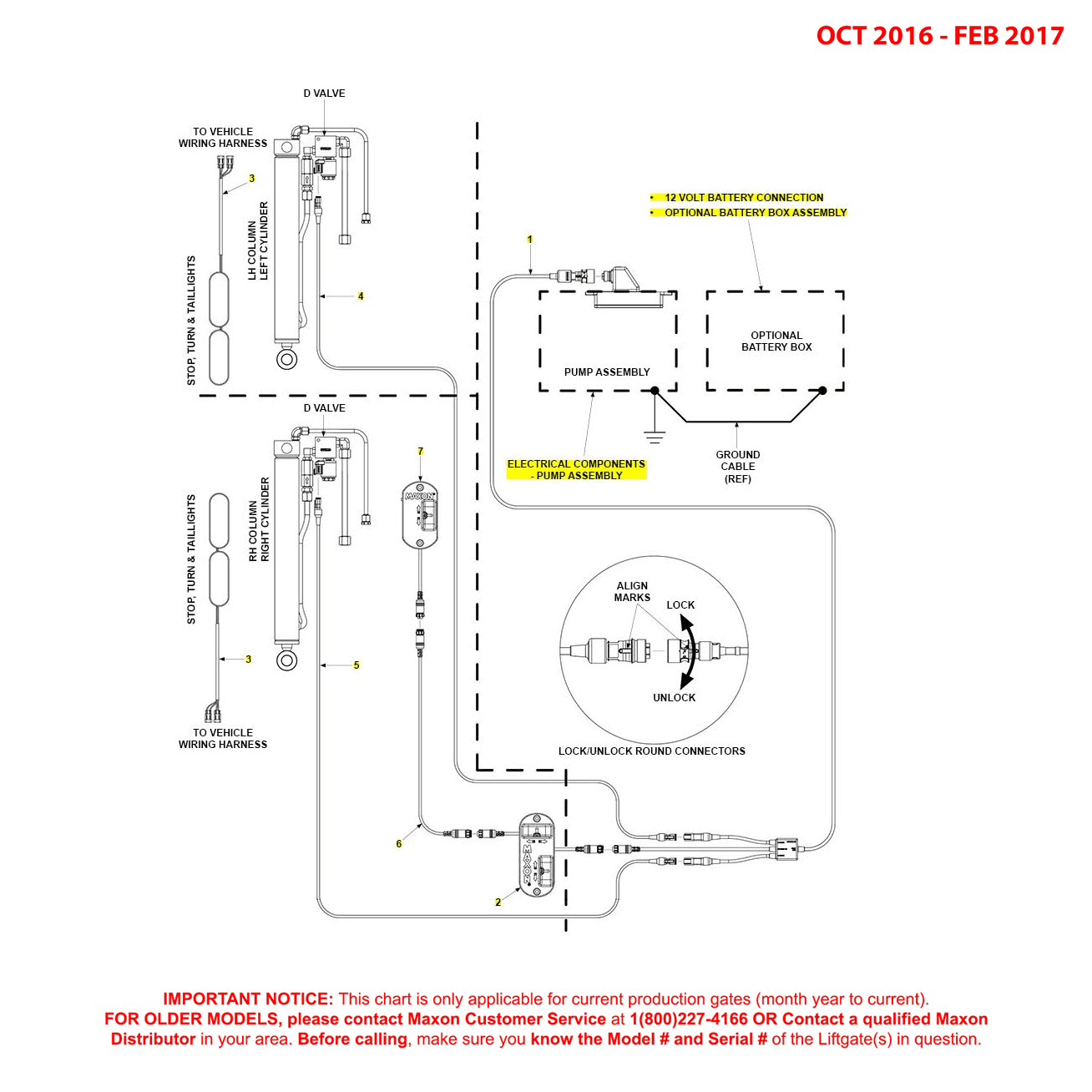

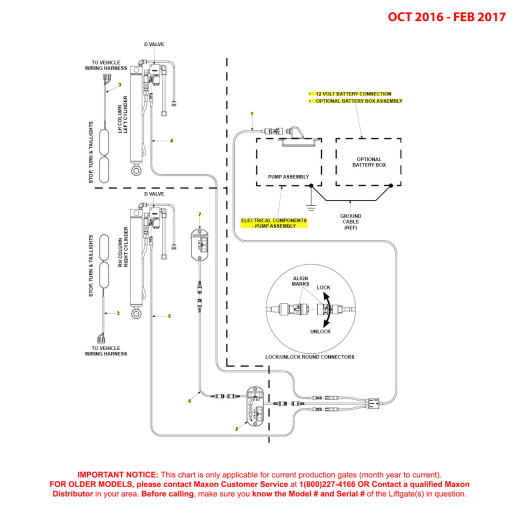

Maxon BMR-CS (Oct 2016 - Feb 2017) MTE Hydraulics Electrical Systems Diagram

Maxon BMR-CS (Oct 2016 – Feb 2017) MTE Hydraulics Electrical Systems Diagram

SKU: BMRCS-OCT16-FEB17-ELECS-MTEH-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 296900-01 - Interconnect Harness 6 ft LMaxon 296900-01 - Interconnect Harness 6 ft L296900-01-MAXO$234.57
1Maxon 296900-02 - Interconnect Harness 15 ft LMaxon 296900-02 - Interconnect Harness 15 ft L296900-02-MAXO$271.88
1Maxon 296900-03 - Interconnect Harness 23 ft LMaxon 296900-03 - Interconnect Harness 23 ft L296900-03-MAXO$309.23
1Maxon 296900-05 - Interconnect Harness 31 ft LMaxon 296900-05 - Interconnect Harness 31 ft L296900-05-MAXO$345.09
1Maxon 296900-06 - Interconnect Harness 39 ft LMaxon 296900-06 - Interconnect Harness 39 ft L296900-06-MAXO$377.57
2Maxon 296150-01 - Main Toggle SW Assembly GDMaxon 296150-01 - Main Toggle SW Assembly GD296150-01-MAXO$340.37
2Maxon 296150-02 - Main Toggle SW Assembly PDMaxon 296150-02 - Main Toggle SW Assembly PD296150-02-MAXO$448.77
3Maxon 295916-01 - ST and T Harness LED TO INC BMRMaxon 295916-01 - ST and T Harness LED TO INC BMR295916-01-MAXO$72.99
4Maxon 286268-02 - Cable Molded 240 Inch LGMaxon 286268-02 - Cable Molded 240 Inch LG286268-02-MAXO$74.88
5Maxon 286268-03 - Cable Molded 166 Inch LGMaxon 286268-03 - Cable Molded 166 Inch LG286268-03-MAXO$72.27
6Maxon 296649-01 - Flex Cable M/M CON HarnessMaxon 296649-01 - Flex Cable M/M CON Harness296649-01-MAXO$165.95
7Maxon 296160-01 - Runner Toggle SW Assembly GDMaxon 296160-01 - Runner Toggle SW Assembly GD296160-01-MAXO$150.98
7Maxon 296160-02 - Runner Toggle SW Assembly PDMaxon 296160-02 - Runner Toggle SW Assembly PD296160-02-MAXO$201.14

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
