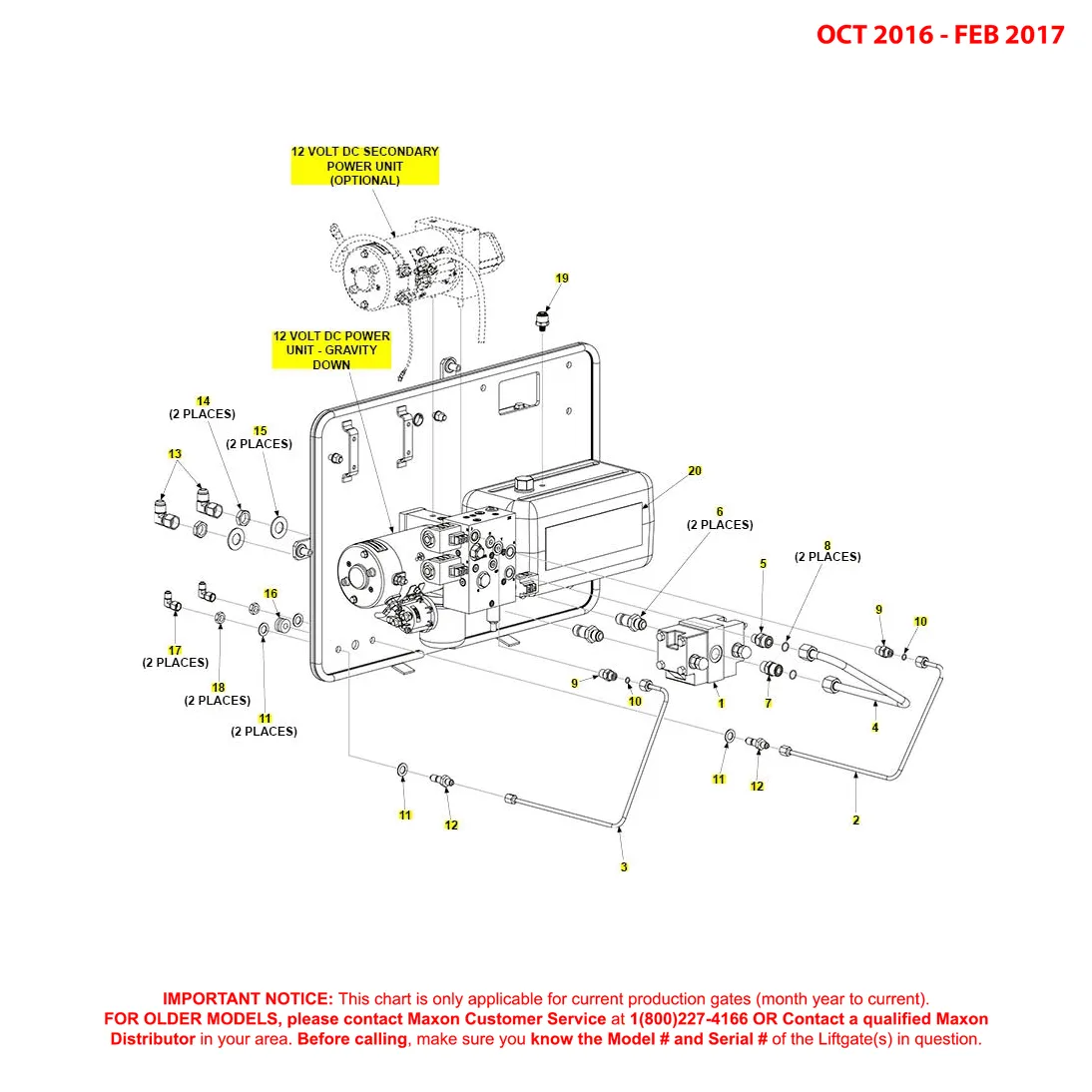

Maxon BMR-CS (Oct 2016 - Feb 2017) MTE Hydraulics Pump Cover And Mounting Plate Assembly Diagram From ITEParts.com

ID	Title	SKU	Price
1	Maxon 253513 - Flow Divider	253513-MAXO	$651.51
2	Maxon 287665-01 - F/S Tube Assembly .25	287665-01-MAXO	$35.94
3	Maxon 287664-01 - F/S Tube Assembly .25	287664-01-MAXO	$35.94
4	Maxon 287667-01 - F/S Tube Assembly (0.50)	287667-01-MAXO	$31.58
5	Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)	906762-01-MAXO	$5.45
6	Maxon 261461 - Union BLKHD SAE37DEG Flare TW	261461-MAXO	$25.67
7	Maxon 905173-02 - Connector STR ORFS/ORB #8	905173-02-MAXO	$4.08
8	Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFS	906712-03-MAXO	$1.39
9	Maxon 905179 - Connector F/S #4 O-Ring #6 M-M	905179-MAXO	$14.10
10	Maxon 906712-01 - Tube End O-Ring #4 1/4 ORFS	906712-01-MAXO	$1.30
11	Maxon 902000-14 - Flat Washer .500 X .063 THK	902000-14-MAXO	$0.98
12	Maxon 905096 - ST Union Fitting Bulkhead M JIC#4	905096-MAXO	$39.57
13	Maxon 260120 - Elbow 90DEG JIC#8M-JIC#8F	260120-MAXO	$22.38
14	Maxon 261462 - Nut BLKHD SAE37DEG Flare Twin	261462-MAXO	$5.37
15	Maxon 902000-20 - Flat Washer - .750 .090 Inch THK	902000-20-MAXO	$1.31
17	Maxon 905027 - Elbow SW Nut #4 SAE 37D M-F	905027-MAXO	$6.00
18	Maxon 905085 - Nut Bulkhead JIC #4	905085-MAXO	$2.13
19	Maxon 905384-01 - Adapter .375 OD Tube X .125 NPTF	905384-01-MAXO	$12.53

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
