| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 906608-01 - Charging SYS Switch 1 and 2 POSN | 906608-01-MAXO | $117.41 | ||
| 2 | | Maxon 900715-15 - Screw FL PH .25-20 X 2.25 Inch ZP | 900715-15-MAXO | $0.24 | ||
| 3 | | Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc | 901000-MAXO | $0.15 | ||
| 5 | | Maxon 209000-12 - BMR 12V Controller Replacement w/Cable Adapter Kit | 209000-12-MAXO | $686.24 | ||
| 6 | | Maxon 296147-01 - BMR Pump Valve Harness | 296147-01-MAXO | $226.02 | ||
| 7 | | Maxon 900004-4 - Screw Cap 1/4-20 X 5/8 Inch GR8 ZC | 900004-4-MAXO | $0.23 | ||
| 8 | | Maxon 902011-2 - Lock Washer .25 X .062 Inch THK | 902011-2-MAXO | $0.08 | ||
| 9 | | Maxon 902000-2 - Washer Flat 1/4 X 1/32 Inch | 902000-2-MAXO | $0.95 | ||
| 10 | | Maxon 268226-12 - Cable Assembly 2GA .31 / .38 RING 12 Inch | 268226-12-MAXO | $27.95 | ||
| 11 | | Maxon 287676-01 - Cable Assembly 2GA R.31/.38 28.0 LG | 287676-01-MAXO | $26.21 |

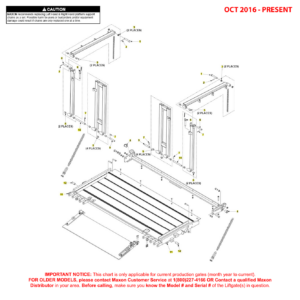

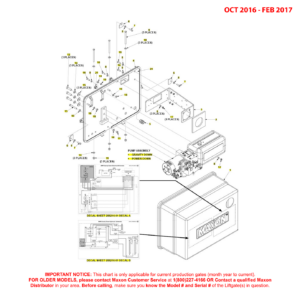

BMR-CS (Oct 2016 - Present) Diagrams

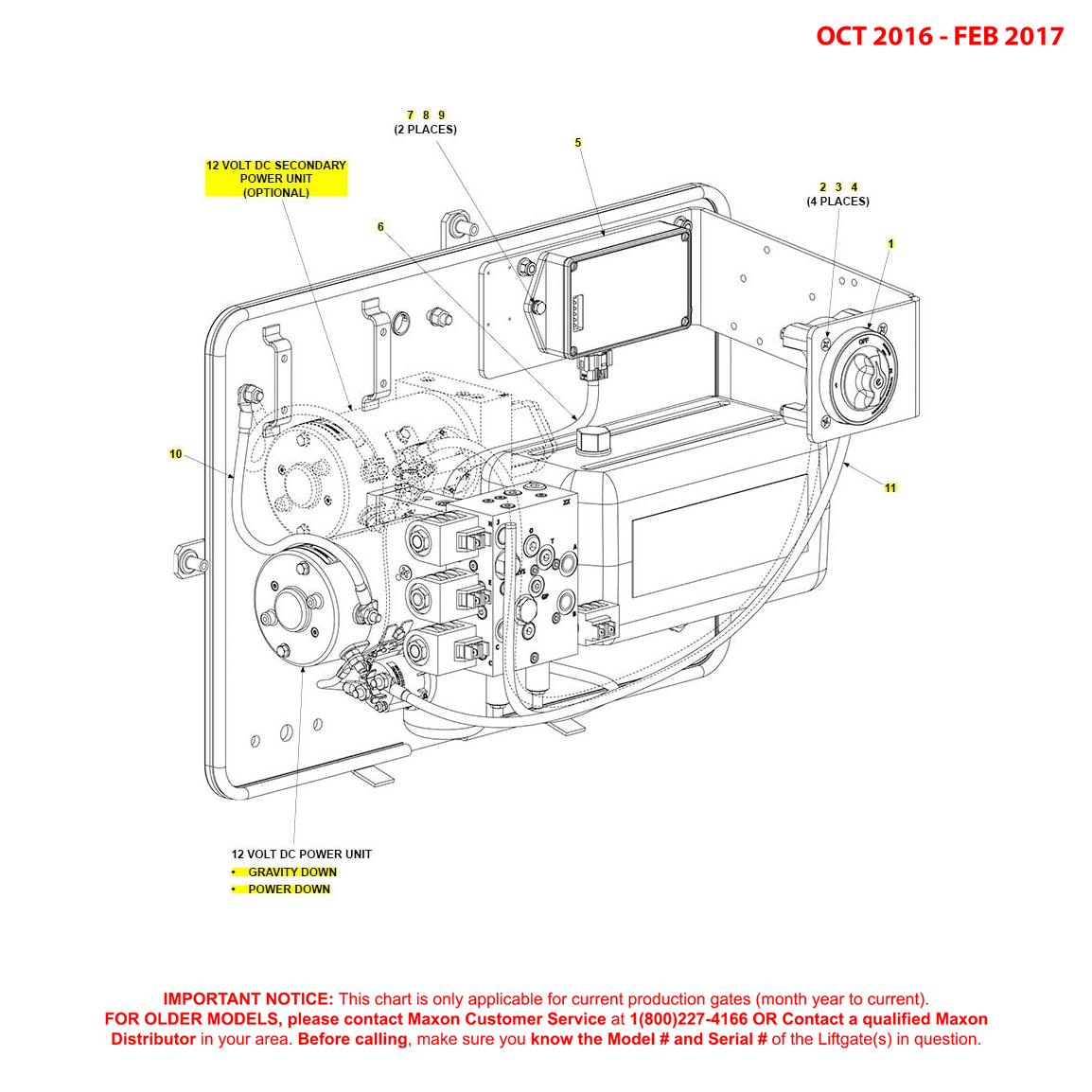

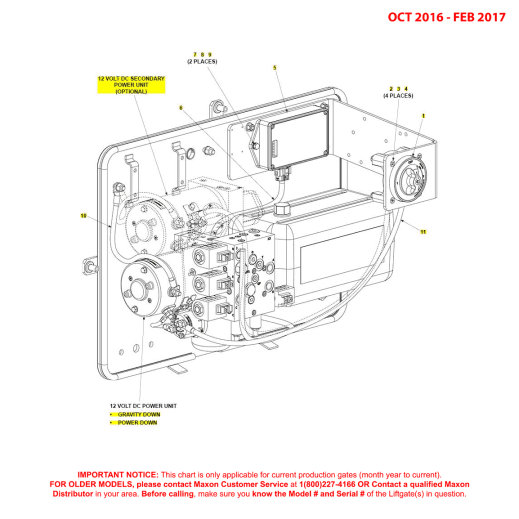

Maxon BMR-CS (Oct 2016 – Feb 2017) MTE Hydraulics Pump Assembly Electric Components Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
