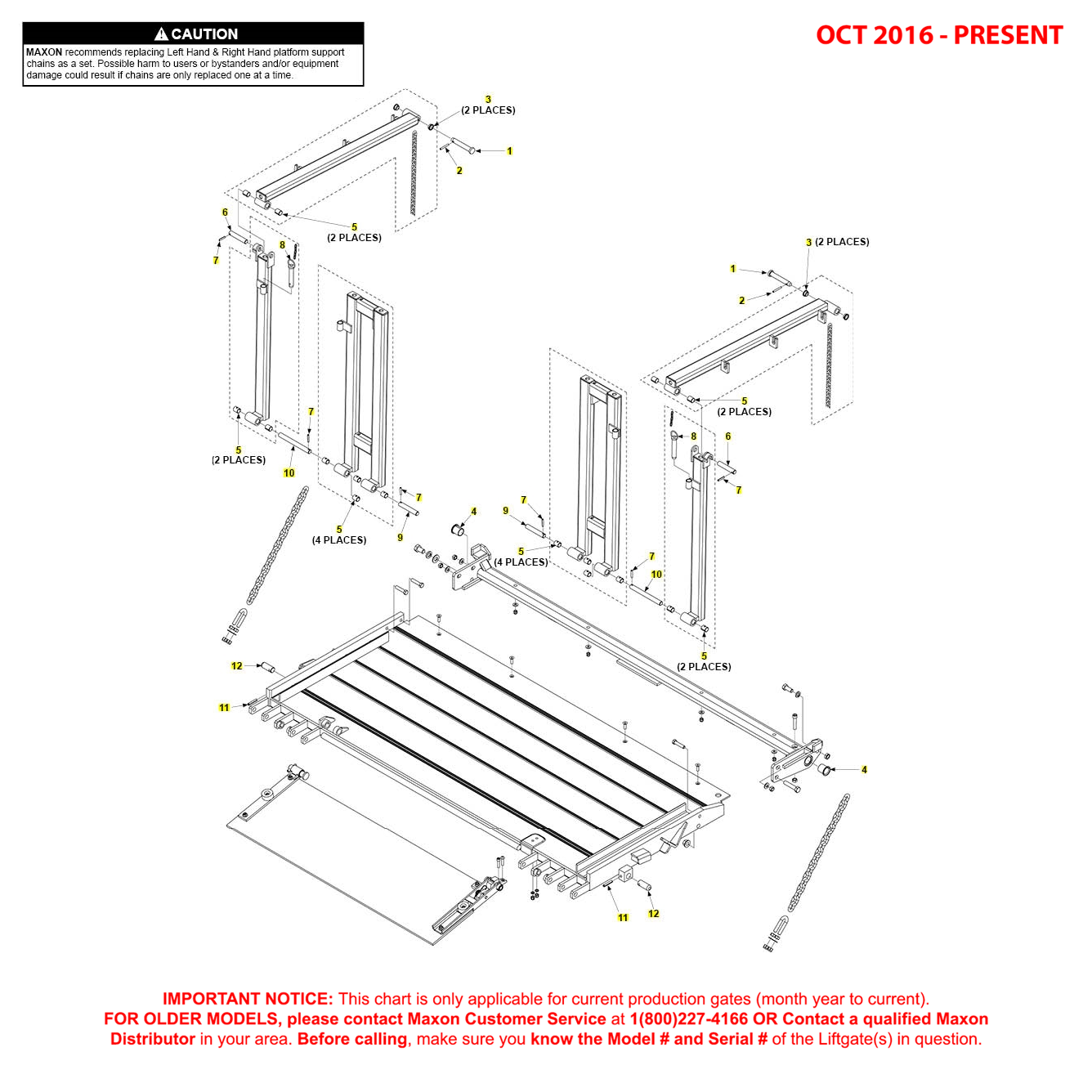

Maxon BMR-CS (Oct 2016 - Present) Aluminum Platform Assembly With Railings And Aluminum Retention Ramp Pins And Bushings Diagram

Maxon BMR-CS (Oct 2016 – Present) Aluminum Platform Assembly With Railings And Aluminum Retention Ramp Pins And Bushings Diagram

SKU: BMRCS-OCT16-PRES-ALPFA-RALRRPB-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 282277-01 - Pin OpenerMaxon 282277-01 - Pin Opener282277-01-MAXO$21.74
2Maxon 905033-5 - 2.00 x .25 Inch OD Roll PinMaxon 905033-5 - 2.00 x .25 Inch OD Roll Pin905033-5-MAXO$0.41
3Maxon 265072 - Bearing Self Lube .75 ID X .375Maxon 265072 - Bearing Self Lube .75 ID X .375265072-MAXO$2.42
4Maxon 908007-05 - Bearing Flanged 1.25 SHFT 1.5 Inch LGMaxon 908007-05 - Bearing Flanged 1.25 SHFT 1.5 Inch LG908007-05-MAXO$4.47
5Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
6Maxon 260877-100 - Pin .75 Inch DIA X 4.00 LG SSTMaxon 260877-100 - Pin .75 Inch DIA X 4.00 LG SST260877-100-MAXO$16.17
7Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
8Maxon 202802 - Ball Lock PinMaxon 202802 - Ball Lock Pin202802-MAXO$33.06
9Maxon 269017-01 - Pin .75" DIA X 4.38 LG SSTMaxon 269017-01 - Pin .75" DIA X 4.38 LG SST269017-01-MAXO$20.63
10Maxon 269017-02 - Pin .75" DIA X 7.5 LG SSTMaxon 269017-02 - Pin .75" DIA X 7.5 LG SST269017-02-MAXO$26.82
11Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
12Maxon 288793-01 - Pin 1.0 DIA X 2.81 LGMaxon 288793-01 - Pin 1.0 DIA X 2.81 LG288793-01-MAXO$19.23

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
