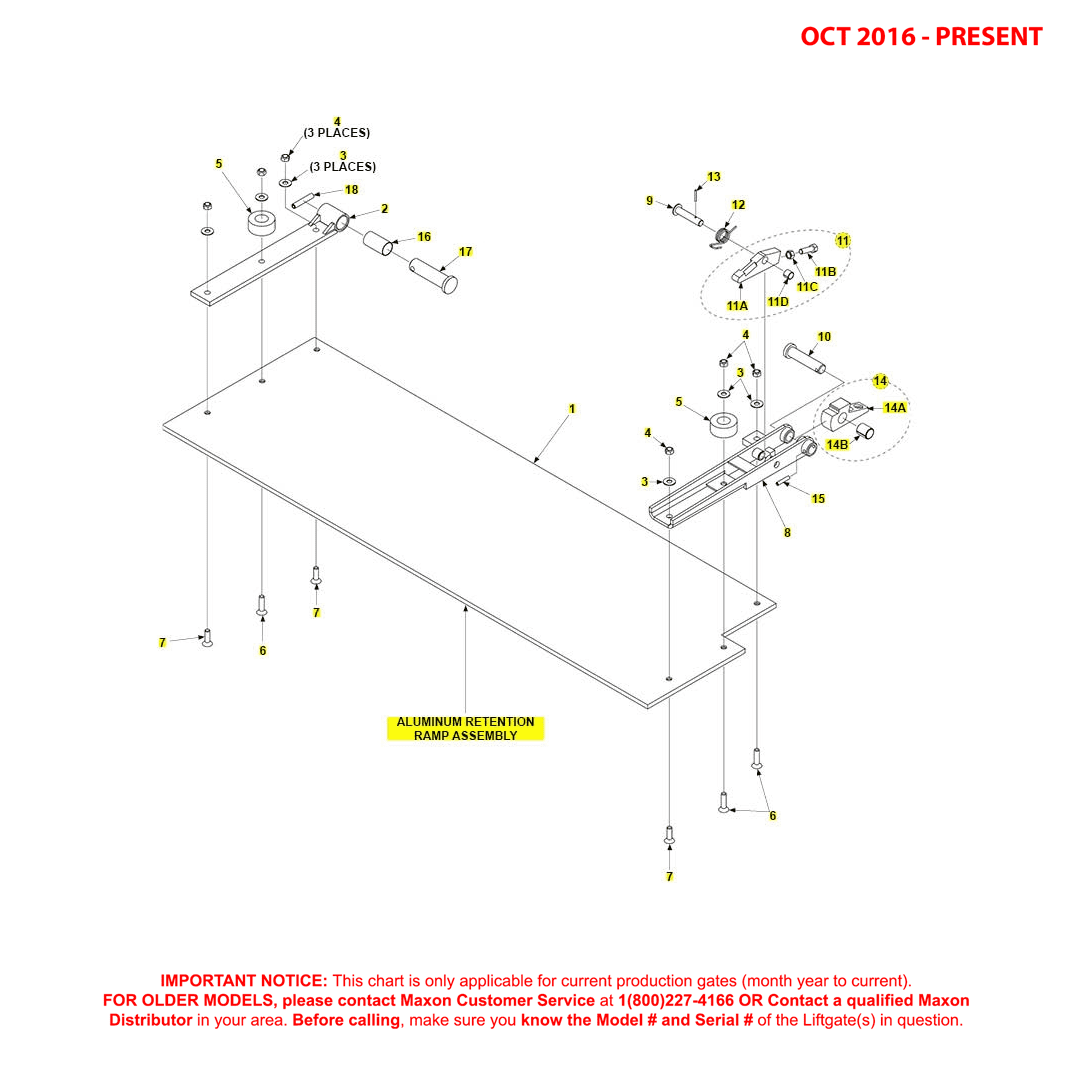

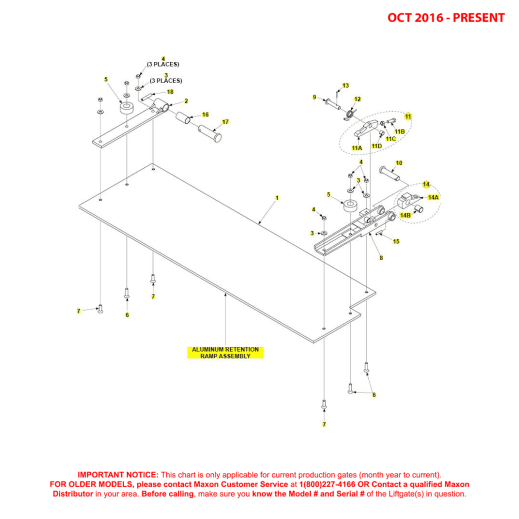

Maxon BMR-CS (Oct 2016 - Present) Aluminum Retention Ramp Assembly Diagram

Maxon BMR-CS (Oct 2016 – Present) Aluminum Retention Ramp Assembly Diagram

SKU: BMRCS-OCT16-PRES-ALRRA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 297848-01 - ARR 20 Inch BMR-CS AL P/FMaxon 297848-01 - ARR 20 Inch BMR-CS AL P/F297848-01-MAXO$1,040.33
2Maxon 253526-01 - Hinge Arm Weldment L/H GALVMaxon 253526-01 - Hinge Arm Weldment L/H GALV253526-01-MAXO$76.35
3Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
5Maxon 905363-01 - Rubber Bumper 2.0 X .88 InchMaxon 905363-01 - Rubber Bumper 2.0 X .88 Inch905363-01-MAXO$5.15
6Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZCMaxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC900040-5-MAXO$1.47
7Maxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZCMaxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZC900040-6-MAXO$1.50
8Maxon 287530-02 - Hinge For ARR Casting Zinc PlateMaxon 287530-02 - Hinge For ARR Casting Zinc Plate287530-02-MAXO$144.12
9Maxon 264577 - Pin Weldment 0.50Maxon 264577 - Pin Weldment 0.50264577-MAXO$12.05
10Maxon 264586 - Pin Weldment 0.750Maxon 264586 - Pin Weldment 0.750264586-MAXO$14.70
11Maxon 253542 - Bearing Self Lube 1/2 X 1/2 InchMaxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch253542-MAXO$13.04
11Maxon 269553-01 - Locking Arm AssemblyMaxon 269553-01 - Locking Arm Assembly269553-01-MAXO$58.11
11Maxon 900033-2 - Screw Cap .5-20 X 1.25 GR8 ZCMaxon 900033-2 - Screw Cap .5-20 X 1.25 GR8 ZC900033-2-MAXO$1.04
11Maxon 901011-10 - Nut Hex Head .500-20 UNF-2BMaxon 901011-10 - Nut Hex Head .500-20 UNF-2B901011-10-MAXO$0.44
12Maxon 264638 - Torsion Spring LHMaxon 264638 - Torsion Spring LH264638-MAXO$23.31
14Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
14Maxon 264585 - Locking CAM AL Retention RampMaxon 264585 - Locking CAM AL Retention Ramp264585-MAXO$137.03
14Maxon 264639 - Locking Cam AssemblyMaxon 264639 - Locking Cam Assembly264639-MAXO$154.67
15Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINCMaxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC905033-2-MAXO$0.33
16Maxon 253541 - Bearing Self Lube 1X2Maxon 253541 - Bearing Self Lube 1X2253541-MAXO$22.46
17Maxon 253528 - PinMaxon 253528 - Pin253528-MAXO$42.69
18Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
