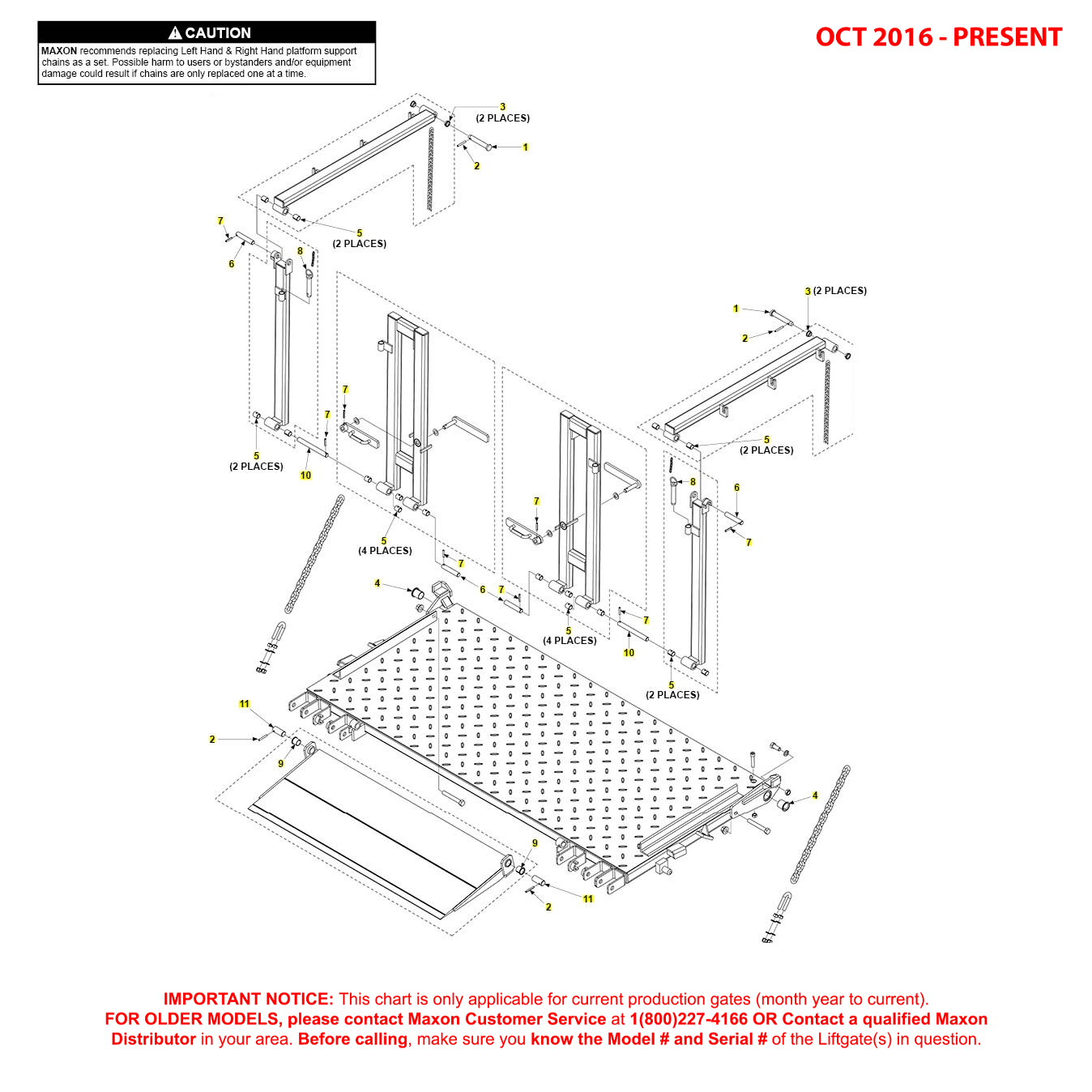

Maxon BMR-CS (Oct 2016 - Present) Galvanized Platform Assembly With Railings And Aluminum Extruded Ramp Pins And Bushings Diagram

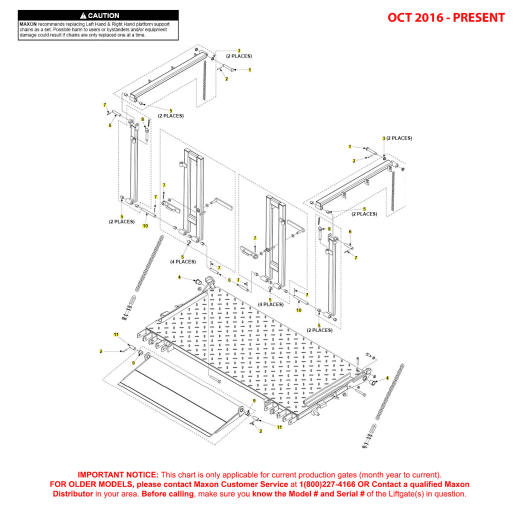

Maxon BMR-CS (Oct 2016 – Present) Galvanized Platform Assembly With Railings And Aluminum Extruded Ramp Pins And Bushings Diagram

SKU: BMRCS-OCT16-PRES-GPFA-RALERPB-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 287740-433G - P/F Assembly BMRW-CS ST85 X 42+18AER GALVMaxon 287740-433G - P/F Assembly BMRW-CS ST85 X 42+18AER GALV287740-433G-MAXO$6,747.98
2Maxon 280586-01 - Ramp BMRA-CS ExtrudedMaxon 280586-01 - Ramp BMRA-CS Extruded280586-01-MAXO$901.16
3Maxon 282866-06 - Chain Galvanized .38 X 23.19 Inch LGMaxon 282866-06 - Chain Galvanized .38 X 23.19 Inch LG282866-06-MAXO$60.08
4Maxon 282854-01 - U-BoltMaxon 282854-01 - U-Bolt282854-01-MAXO$6.29
6Maxon 287883-04G - Horizontal Rail Weldment BMR-CS RH 42IN P/F GALVMaxon 287883-04G - Horizontal Rail Weldment BMR-CS RH 42IN P/F GALV287883-04G-MAXO$350.04
8Maxon 050408-05 - Chain #4 X 5 LinksMaxon 050408-05 - Chain #4 X 5 Links050408-05-MAXO$2.78
9Maxon 287891-01G - FLDG Rail Weldment LH BMRB-CS GLMaxon 287891-01G - FLDG Rail Weldment LH BMRB-CS GL287891-01G-MAXO$496.28
10Maxon 283318-01G - Latch Plate Pin Weldment GALVMaxon 283318-01G - Latch Plate Pin Weldment GALV283318-01G-MAXO$42.77
10Maxon 283319-01G - Latch Plate Bushing Weldment GALVMaxon 283319-01G - Latch Plate Bushing Weldment GALV283319-01G-MAXO$78.80
10Maxon 902000-17 - Washer Flat .625 .032 Inch THKMaxon 902000-17 - Washer Flat .625 .032 Inch THK902000-17-MAXO$0.57
10Maxon 902000-18 - Flat Washer .625 .063 THKMaxon 902000-18 - Flat Washer .625 .063 THK902000-18-MAXO$0.38
11Maxon 900055-02 - Screw Hex Head .625-11UNC X 1.5 InchMaxon 900055-02 - Screw Hex Head .625-11UNC X 1.5 Inch900055-02-MAXO$1.94
12Maxon 900036-11 - Screw SOCHD .5-13UNC-2A 2.50 InchMaxon 900036-11 - Screw SOCHD .5-13UNC-2A 2.50 Inch900036-11-MAXO$3.59
13Maxon 902011-8 - Washer Lock .625 .156 Inch THKMaxon 902011-8 - Washer Lock .625 .156 Inch THK902011-8-MAXO$0.30
16Maxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 InchMaxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 Inch900055-14-MAXO$4.25
17Maxon 903136-05 - Flange Lock Nut .63-11 PLMaxon 903136-05 - Flange Lock Nut .63-11 PL903136-05-MAXO$1.55
18Maxon 901011-9 - Nut Hex Head .500-13 UNC-2BMaxon 901011-9 - Nut Hex Head .500-13 UNC-2B901011-9-MAXO$0.38
19Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
20Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
