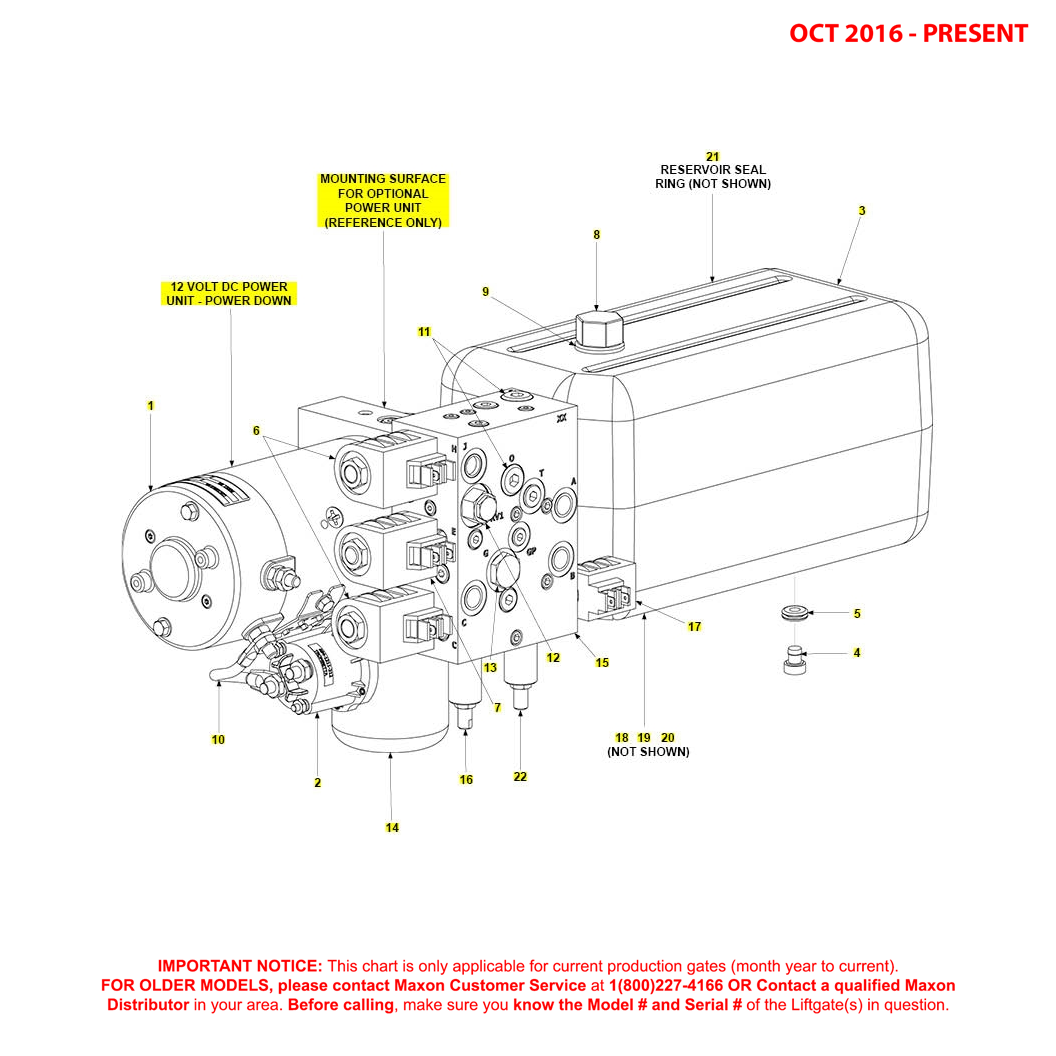

Maxon BMR-CS (Oct 2016 - Present) MTE Hydraulics 12VDC Power Down Power Unit Diagram

Maxon BMR-CS (Oct 2016 – Present) MTE Hydraulics 12VDC Power Down Power Unit Diagram

SKU: BMRCS-OCT16-PRES-12VDCPDPU-MTEH-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 296020-12 - 12 VDC Power Unit 203.1 BMR PDMaxon 296020-12 - 12 VDC Power Unit 203.1 BMR PD296020-12-MAXO$2,523.30
1Maxon 269582-01 - Motor 12 VDC Heavy Duty 2 TermMaxon 269582-01 - Motor 12 VDC Heavy Duty 2 Term269582-01-MAXO$784.05
2Maxon 284080-01 - Switch Solenoid AssemblyMaxon 284080-01 - Switch Solenoid Assembly284080-01-MAXO$33.11
3Maxon 296022-01 - Tank 2.0 Gallon 16 Inch Long W/Foot BracketMaxon 296022-01 - Tank 2.0 Gallon 16 Inch Long W/Foot Bracket296022-01-MAXO$173.09
4Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
5Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94
6Maxon 290046 - Valve Assembly 4WAY Double SpadeMaxon 290046 - Valve Assembly 4WAY Double Spade290046-MAXO$161.58
7Maxon 290019 - Valve 2 POS-3Way W/CoilMaxon 290019 - Valve 2 POS-3Way W/Coil290019-MAXO$186.15
8Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
9Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
10Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51
11Maxon 906929-01 - Flow Control Valve 1.50 GPM P-CMaxon 906929-01 - Flow Control Valve 1.50 GPM P-C906929-01-MAXO$48.62
12Maxon 906930-01 - Relief Valve RV1 Set at 2400 PSIMaxon 906930-01 - Relief Valve RV1 Set at 2400 PSI906930-01-MAXO$32.76
13Maxon 290033 - Valve Check Vertical PumpMaxon 290033 - Valve Check Vertical Pump290033-MAXO$54.53
15Maxon 296023-01 - Manifold Assembly Maxon Severe DutyMaxon 296023-01 - Manifold Assembly Maxon Severe Duty296023-01-MAXO$1,433.25
16Maxon 290035 - Valve Relief 2400 PSIMaxon 290035 - Valve Relief 2400 PSI290035-MAXO$101.70
17Maxon 290043 - Valve Assembly 2 Way Double SpadeMaxon 290043 - Valve Assembly 2 Way Double Spade290043-MAXO$134.27
18Maxon 296021-01 - Pump 203.1 Pressure LoadedMaxon 296021-01 - Pump 203.1 Pressure Loaded296021-01-MAXO$344.72
19Maxon 260261 - Oil Seal - PumpMaxon 260261 - Oil Seal - Pump260261-MAXO$6.32
20Maxon 290020 - O-Ring Kepner Check ValveMaxon 290020 - O-Ring Kepner Check Valve290020-MAXO$7.14
21Maxon 290061 - Seal Square Cut PL ReservoirMaxon 290061 - Seal Square Cut PL Reservoir290061-MAXO$5.70
22Maxon 905195 - Relief Valve DIFF 2000-3500PSIMaxon 905195 - Relief Valve DIFF 2000-3500PSI905195-MAXO$104.18

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
