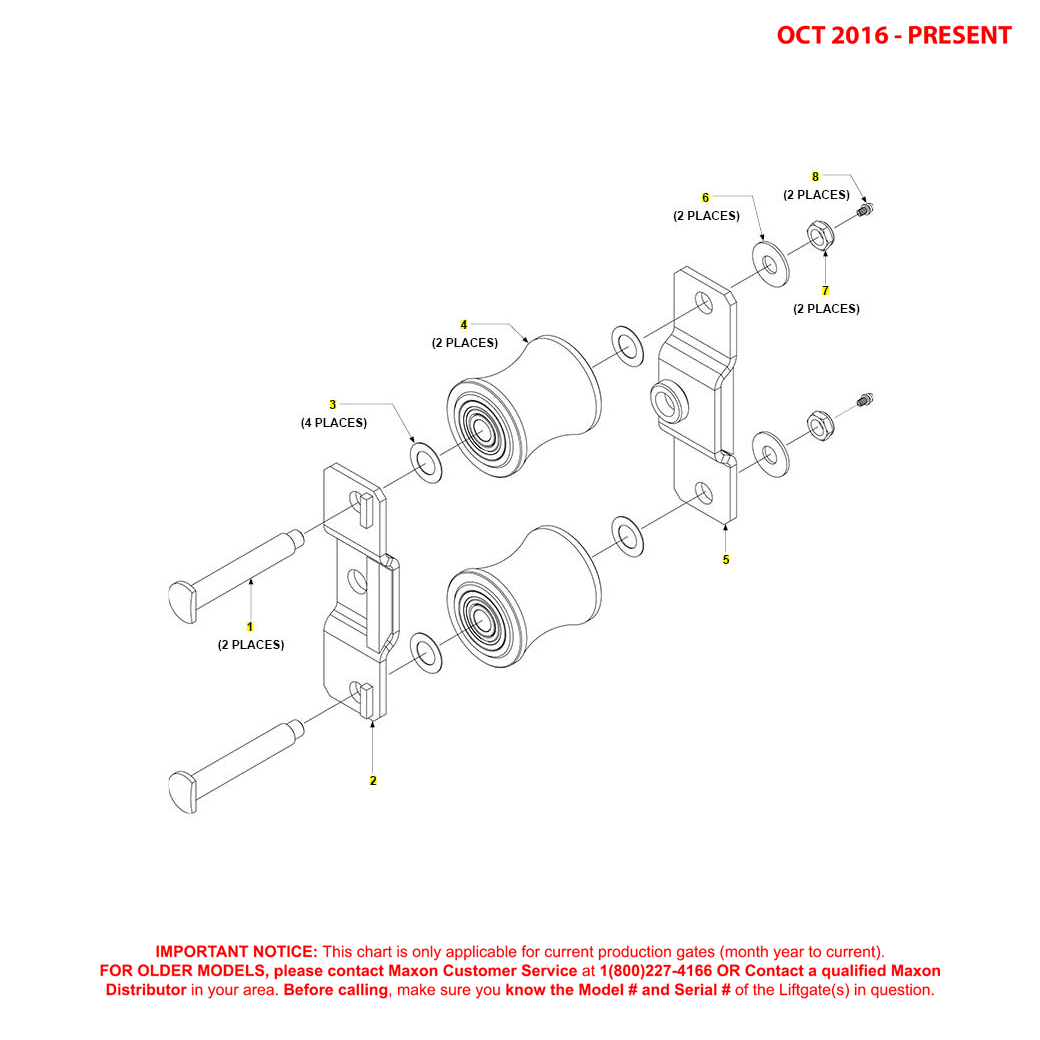

Maxon BMR-CS (Oct 2016 - Present) Tandem Assembly With Rollers Diagram

Maxon BMR-CS (Oct 2016 – Present) Tandem Assembly With Rollers Diagram

SKU: BMRCS-OCT16-PRES-TAWR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286234-01 - Tandem Assembly BMRBMaxon 286234-01 - Tandem Assembly BMRB286234-01-MAXO$386.30
1Maxon 286289-01 - Roller AxelMaxon 286289-01 - Roller Axel286289-01-MAXO$36.47
2Maxon 288956-01 - Tandem Outer Bracket WeldmentMaxon 288956-01 - Tandem Outer Bracket Weldment288956-01-MAXO$47.04
3Maxon 261182 - Washer Flat 1.25 X .728 X .030 Inch 304Maxon 261182 - Washer Flat 1.25 X .728 X .030 Inch 304261182-MAXO$0.72
4Maxon 268899-01 - Roller Assembly Tandem BMRMaxon 268899-01 - Roller Assembly Tandem BMR268899-01-MAXO$87.93
5Maxon 286308-01 - Tandem Inner Bracket WeldmentMaxon 286308-01 - Tandem Inner Bracket Weldment286308-01-MAXO$46.82
6Maxon 902014 - Washer 1.38 X .56 X .093 InchMaxon 902014 - Washer 1.38 X .56 X .093 Inch902014-MAXO$0.39
7Maxon 901016-1 - Nut Hex THN HD LKG .500-20UNFMaxon 901016-1 - Nut Hex THN HD LKG .500-20UNF901016-1-MAXO$0.99
8Maxon 268264-02 - Grease Fitting Drive-In .19Maxon 268264-02 - Grease Fitting Drive-In .19268264-02-MAXO$0.89

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
