| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 907207-01 - Circuit Breaker 150 AMP | ||||
| 2 | | Maxon 269308-12 - Cable Assembly 2GA Red 12IN | ||||
| 3 | | Maxon 268226-06 - Cable Assembly 2GA .31 / .38 RING 74 Inch | ||||
| 4 | | Maxon 269308-10 - Cable Assembly 2 GA Red 8IN | ||||
| 5 | | Maxon 285506-07 - Cable Assembly 2GA R.31/.38 RNG 59 Inch | ||||
| 6 | | Maxon 907230-01 - Circuit Breaker 200 AMP PB TRIP/RESET | ||||
| 7 | | Maxon 285506-01 - Cable Assembly 2GA R .31/.38 Ring 10 | ||||
| 8 | | Maxon 251871-14 - Cable 2 GA Assembly 8 Inch |

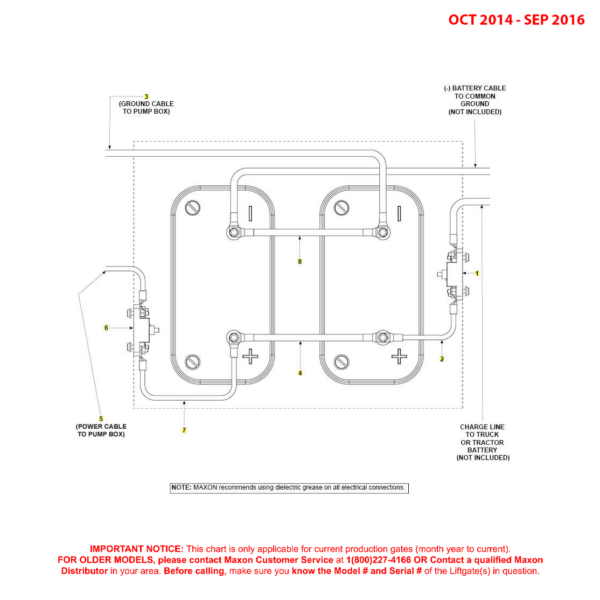

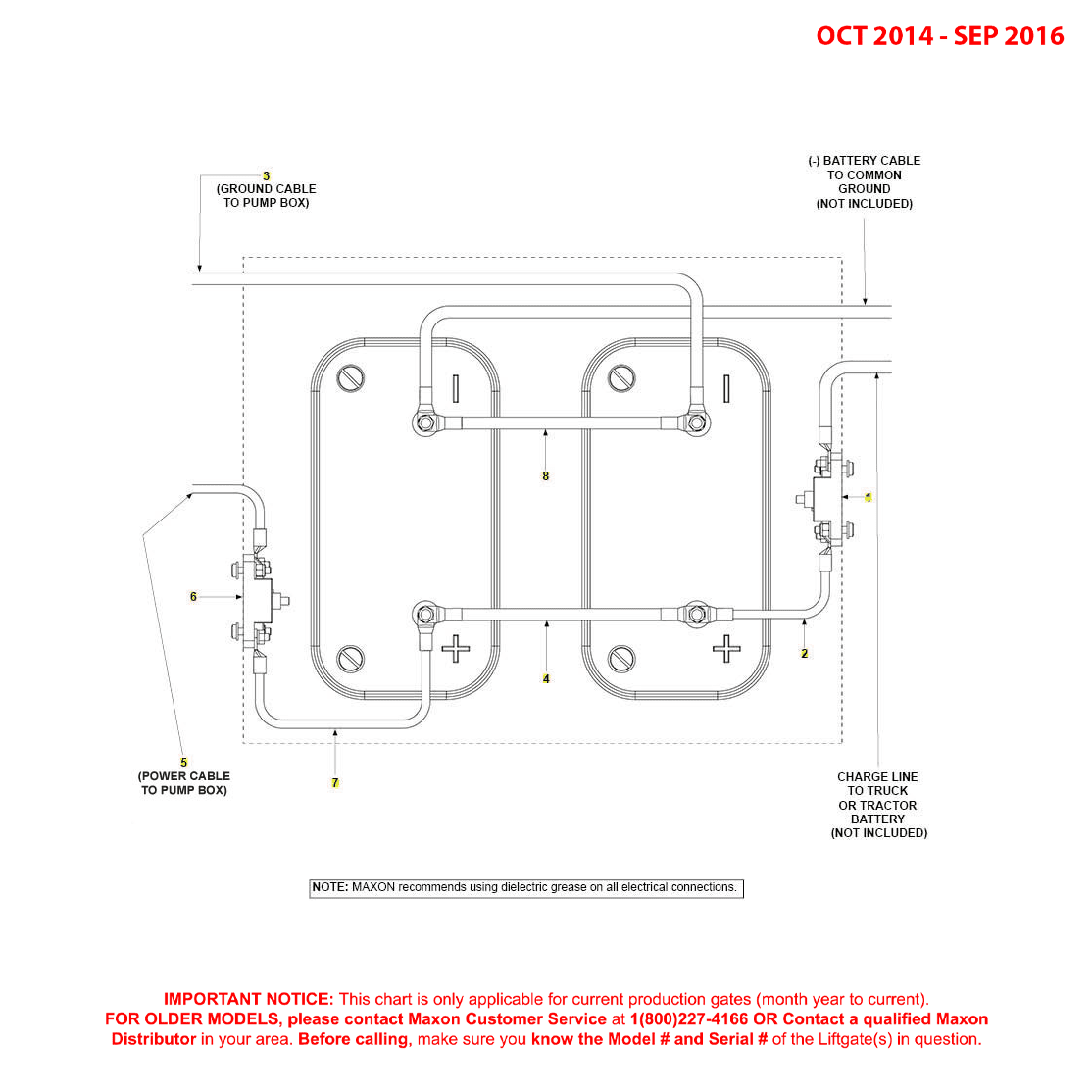

Maxon BMR (Oct 2014 – Sep 2016) 12 Volt Battery Connection Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
