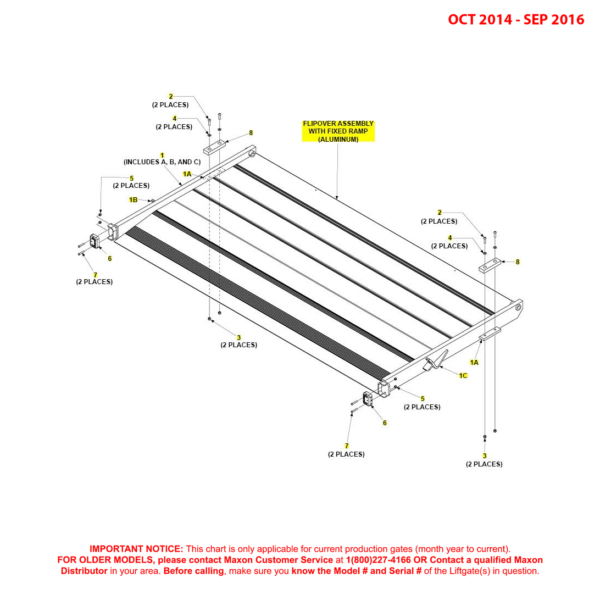

Maxon BMR (Oct 2014 - Sep 2016) Aluminum Flipover Assembly With Fixed Ramp Diagram

Maxon BMR (Oct 2014 – Sep 2016) Aluminum Flipover Assembly With Fixed Ramp Diagram

SKU: BMR-OCT14-SEP16-ALFOA-FR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 287591-01 - Flat AL Bumper HolderMaxon 287591-01 - Flat AL Bumper Holder287591-01-MAXO$13.55
2Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
3Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
4Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
5Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
7Maxon 900719-09 - Screw Button .25-20 X 1.5 Inch SSMaxon 900719-09 - Screw Button .25-20 X 1.5 Inch SS900719-09-MAXO$0.54
8Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 HoleMaxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole225278-02-MAXO$24.86

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
