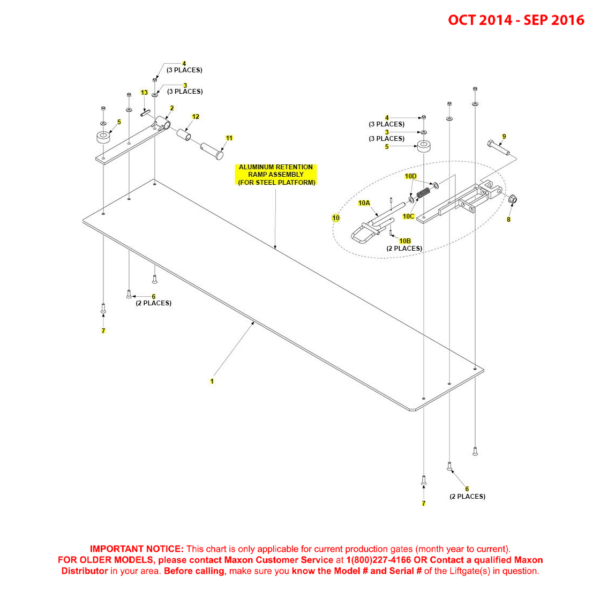

Maxon BMR (Oct 2014 - Sep 2016) Aluminum Flipover Assembly With Aluminum Retention Ramp Diagram From ITEParts.com

ID	Title	SKU	Price
0	Maxon 286845-80 - 16 Inch ARR For 80 Inch Steel F/O BMR	286845-80-MAXO	$1,390.35
0	Maxon 286845-85 - 16 Inch ARR For 85 Inch Steel F/O BMRW	286845-85-MAXO	$1,460.55
1	Maxon 287529-51 - DMD Plate For 16 Inch ARR 80 Inch ST F/O	287529-51-MAXO	$945.62
1	Maxon 287529-52 - DMD Plate For 16 Inch ARR 85 Inch ST F/O	287529-52-MAXO	$945.62
2	Maxon 253526-01 - Hinge Arm Weldment L/H GALV	253526-01-MAXO	$76.35
3	Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC	902001-2-MAXO	$0.18
5	Maxon 905363-01 - Rubber Bumper 2.0 X .88 Inch	905363-01-MAXO	$5.15
6	Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC	900040-5-MAXO	$1.47
7	Maxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZC	900040-6-MAXO	$1.50
8	Maxon 901023-04 - Flange Lock Nut 63-11 ZC	901023-04-MAXO	$1.82
9	Maxon 900055-11 - Screw Hex Head .625-11UNC X 3.75 Inch	900055-11-MAXO	$3.23
10	Maxon 287528-01 - Arm Assembly ARR RH	287528-01-MAXO	$193.56
10	Maxon 287575-01 - Pin-Locking Weldment ARR	287575-01-MAXO	$53.91
10	Maxon 903434-13 - Washer Flat M16 SS	903434-13-MAXO	$0.72
10	Maxon 908209-01 - Spring COMP	908209-01-MAXO	$5.76
11	Maxon 253528 - Pin	253528-MAXO	$42.69
12	Maxon 253541 - Bearing Self Lube 1X2	253541-MAXO	$22.46
13	Maxon 904717-05 - Pin Roll .38 X 1.75 Zinc	904717-05-MAXO	$0.98

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
